Automatic Feeding and Packaging Systems For Bread, Waffle, Chocolate Bar

Introduction:

The Automatic Feeding and Packing System for Bread, Waffle, and Chocolate Bar is a complete end of line packaging solutions integrating automatic product arranging, continuous conveying, and horizontal flow wrapping. Designed for baked goods and snacks.

Application:

This end of line packaging solutions is applied to the automatic arrangement, feeding, and pillow packaging of chocolate biscuits, waffles, bread slices, chocolate bars, bread, pancakes, biscuits, cakes, rusks, and buns.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Compatible with pillow pouch, back sealing pouch, 3/4 sides sealing bag, sachet, and gusset pouch, the end of line packaging solutions integrate automatic product alignment with a horizontal flow wrapper to ensure smooth film forming, precise sealing, and consistent bag shapes.

Automatic Feeding And Packing System For Bread, Waffle, Chocolate Bar

Suitable Products:

This end of line packaging system efficiently handles a wide variety of snack and baked food with high speed and accuracy.

1. Snack Industry: cookies, cheese curls, pretzels, swiss rolls.

2. Baking industry: Chocolate bars, biscuits, buns, wafers.

3. Health & Nutritional Products: Granola bars, protein bars, cereal bars, energy chews.

Automatic Feeding And Packing System For Bread, Waffle, Chocolate Bar

FEATURES

1. Processes 500–600 units/min (bars, cubes, or specialty shapes), drastically elevating output capacity.

2. Syncs directly with upstream lines to ensure linear material flow and eliminate product bottlenecks.

3. Fully compliant with sanitary food-grade standards, featuring a design optimized for rapid, thorough cleaning.

4. A multi-channel feeding architecture accurately guides diverse product geometries into the packing stream.

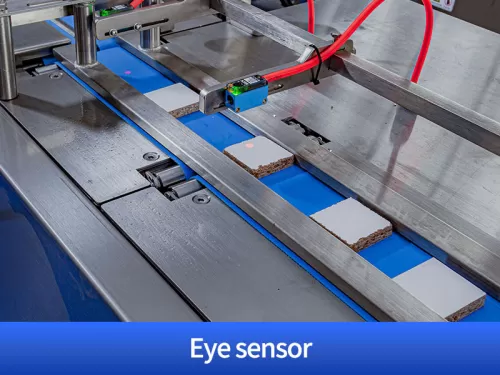

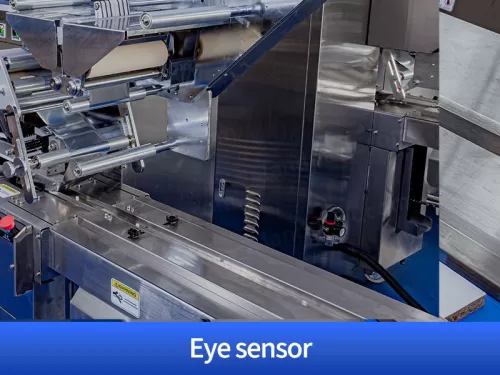

5. Six conveyor belts, integrated with high-precision SICK sensors, guarantee perfect product orientation.

6. High-speed printing module applies sharp batch codes, dates, and logos with pinpoint accuracy.

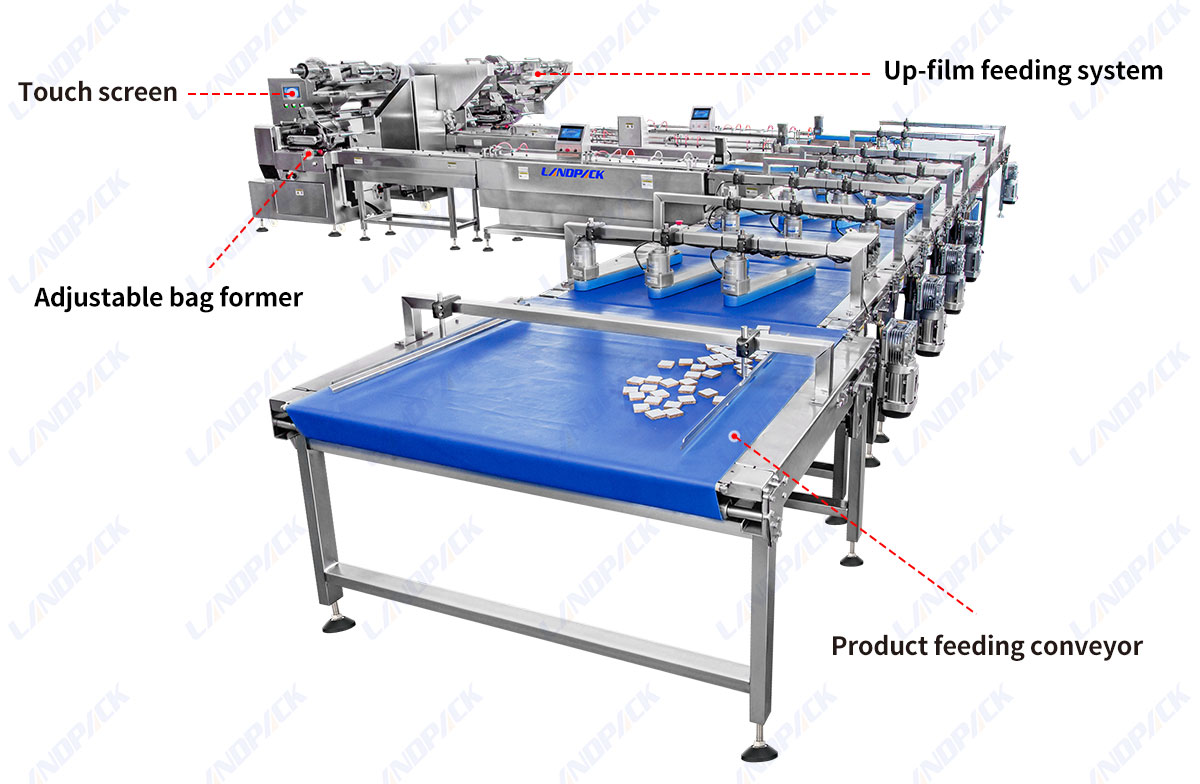

Machine Structure Overview:

Automatic Feeding And Packing System For Bread, Waffle, Chocolate Bar

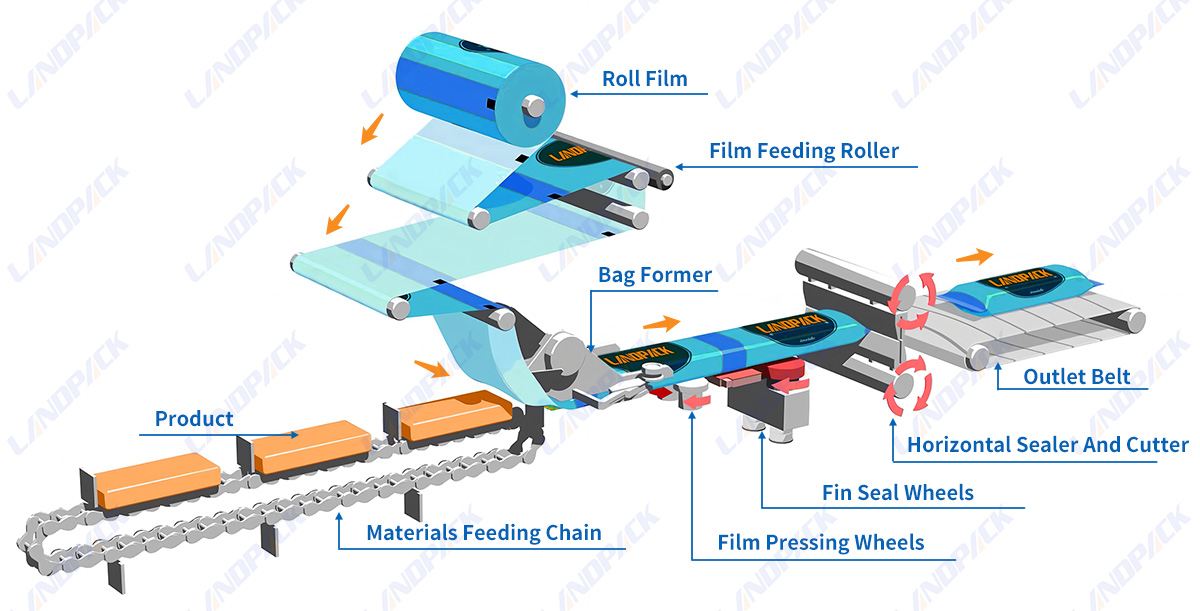

WORKFLOW

Product Loading

Orientation & Alignment

Feeding to Packaging Machine

Film Forming

Product Insertion & Filling

Sealing

Cutting & Output

PARAMETER

Model	LP-350B
Film width	Max.350mm
Bag size	60-190mm(L)*50-160mm(W)
Product height	Max 75mm
Packing speed	200-300 bags/min (Depends on material length)
Machine size	798031801540mm
Power voltage	single-phase, AC 220V/60Hz, 5.5kw
Material of fame	Machine frame SS201.Contact part: SS304
Packing line	1+2 / 1+3
Drive	Three servo motors
Packaging material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET, etc.
Application	Chocolate bar, biscuits, cookies, bread, cake, Bun, frozen foods, dumpling, frozen meat, etc
