Automatic Cartoning Case Packaging System For Bottles Cans Jars Barrels

Introduction:

The Fully Automatic Cartoning Case Packaging System is designed for end-of-line secondary packaging of bottles, cans, jars, plastic containers and barrels.

Application:

This system is commonly used for food, beverage, chemical, daily-use and healthcare product lines, such as sauce bottles, canned food, detergent bottles, lubricant barrels, chemical containers, medicine bottles and healthcare jars.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This case packaging system is designed for secondary packaging of bottles, cans, jars and barrels in food, beverage, chemical and daily-use industries, such as sauce bottles, canned food, detergent bottles, lubricant barrels, chemical containers, Medicine bottles, healthcare jars.

Automatic Cartoning Case Packaging System For Bottles Cans Jars Barrels

Package Type:

The case packaging system is suitable for automatic case packing of round bottles, square bottles, cans, jars and plastic barrels. It supports carton erecting, automatic product loading, carton sealing for end of line packaging solutions.

FEATURES

1. Fully automatic bottle/can loading, carton erecting, case packing and carton sealing in one line.

2. Servo + pneumatic control system ensures stable running and accurate product loading.

3. Special bottle grasper design protects bottles from falling or scratching during packing.

4. PLC touch screen control with automatic detection and fault protection for safer operation.

5. Automatic carton erector and case taping machine provide fast and tight carton sealing.

6. Suitable for bottles, cans, jars and barrels with flexible adjustment for different carton sizes.

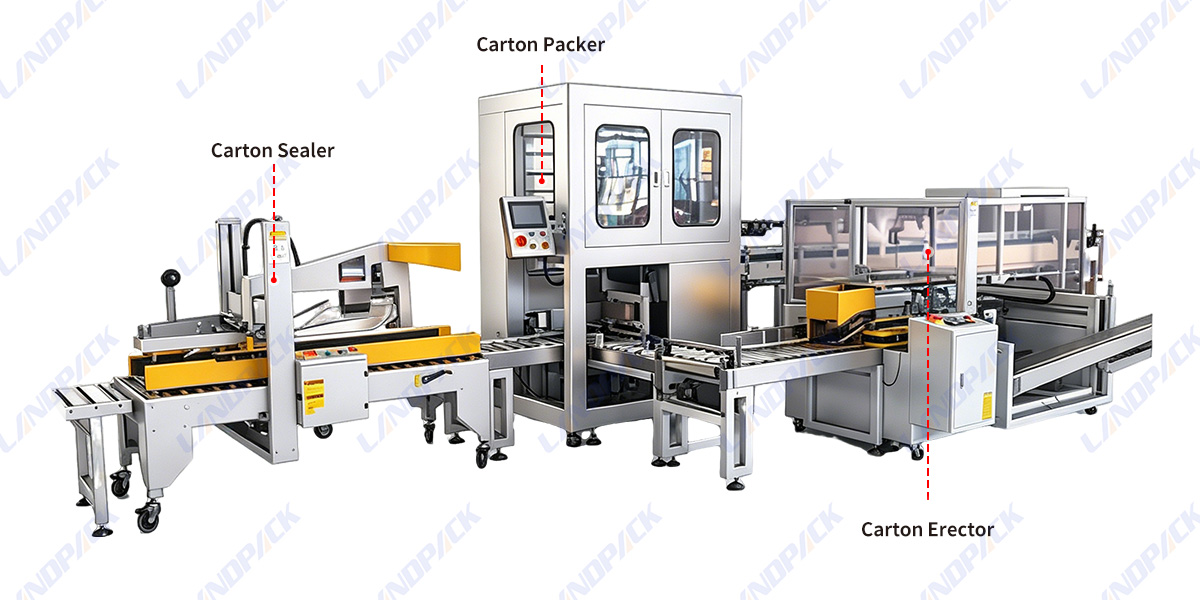

Machine Structure Overview:

1. Carton Packer 2. Carton Sealer 3. Box Case Sealer 4. Carton Erector

Automatic Cartoning Case Packaging System For Bottles Cans Jars Barrels

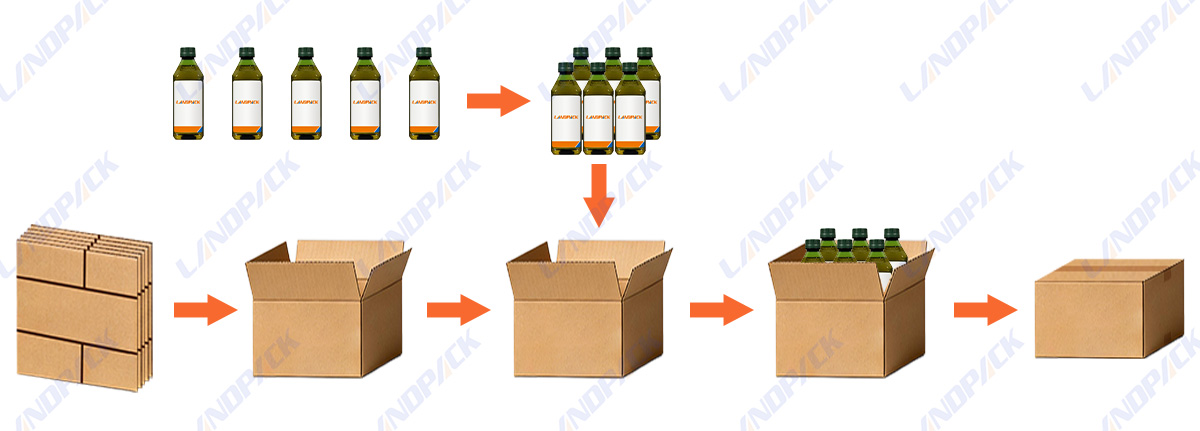

WORKFLOW

Container conveying

Product grouping

Automatic carton erecting

Product loading

Carton sealing

PARAMETER

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)

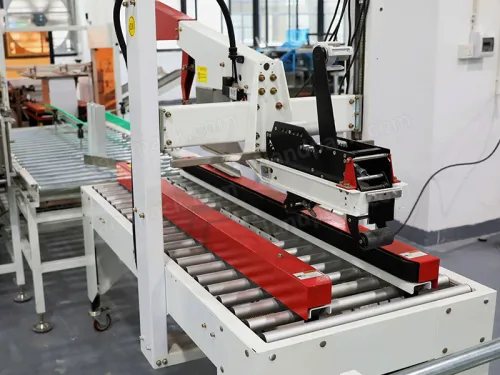

Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
