Automated Intelligent Powder End of Line Packaging Machinery

Introduction:

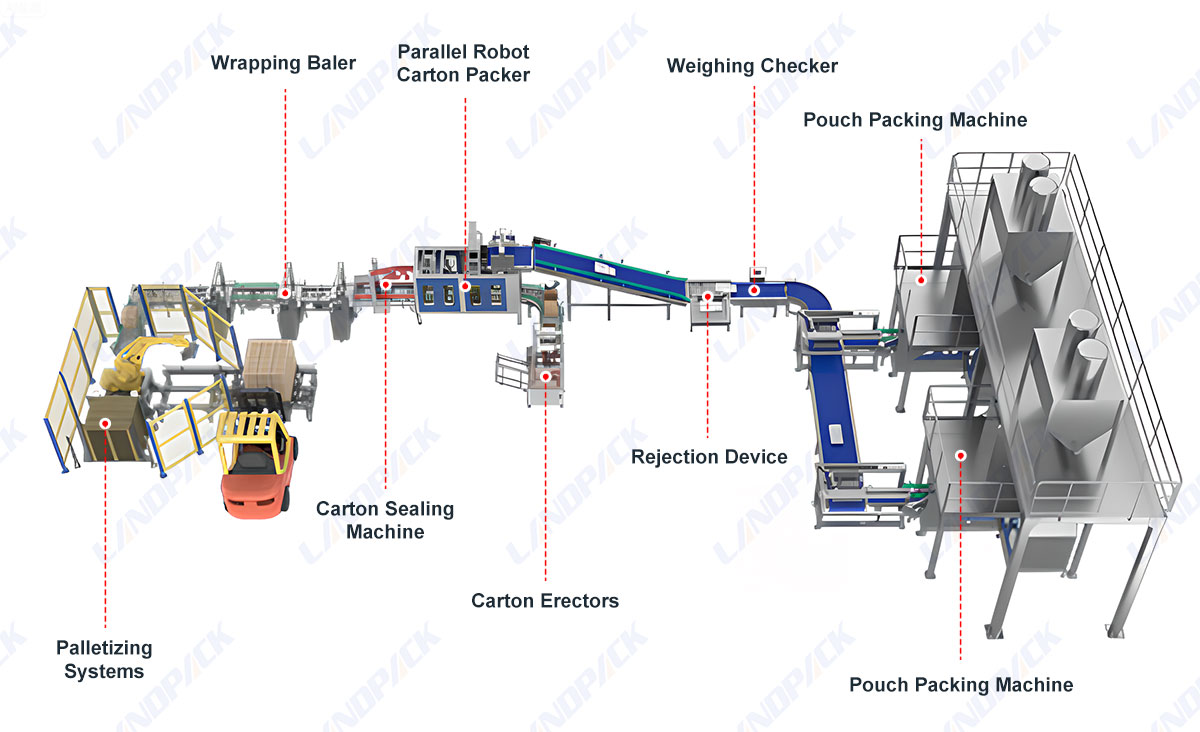

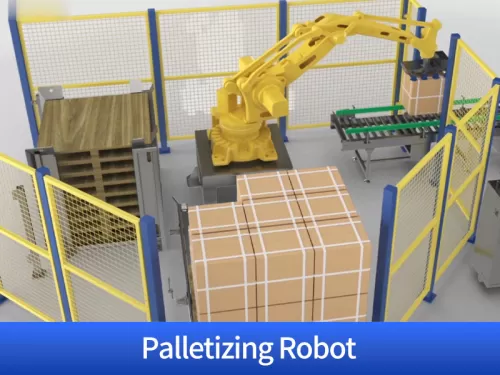

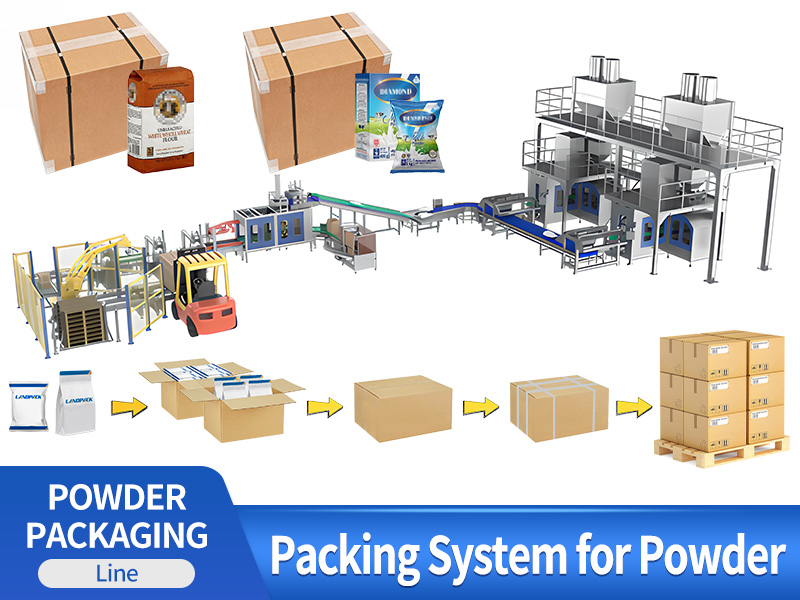

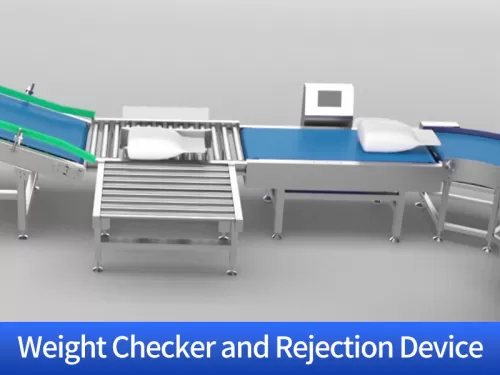

This automatic cartoning line for bagged powder is made up of a vertical packing machine set, a checkweigher, a one-to-two intelligent cartoning robot, a case erector, a case sealer, and a palletizing robot, forming a complete end of line packaging machinery solution.

Application:

Packaging system for powder material such as powder products, including milk powder, coffee powder, spice powder, protein powder, nutritional supplements, pharmaceutical powders, and meal replacement powders.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

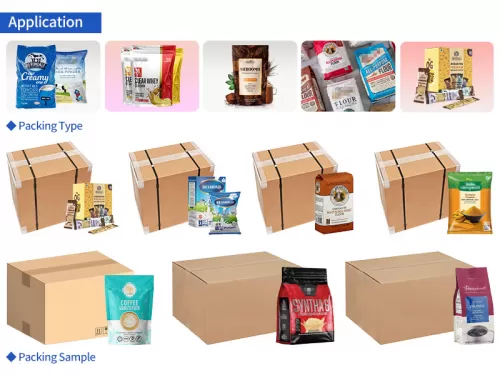

Application

Package Type:

Engineered for high-speed versatility, this multihead weighing and VFFS line automatically forms, fills, and seals a wide range of bag styles from roll film. It is fully compatible with pillow bags, gusseted pouches, flat-bottom bags, and quad-seal formats, offering a seamless solution for diverse flexible packaging needs.

Automated Intelligent Powder Weighing Packaging Cartoning System

Suitable Products:

The line uses our self-designed high-speed, flexible parallel robot for picking and placing. This ensures that products stay secure during fast handling without falling, even at high speeds. It's widely used in the automatic detection, sorting, arranging, handling, and cartoning of soft-bag and boxed products, such as powder material like milk powder, protein powder, flour, detergent powder, etc.

Automated Intelligent Powder Weighing Packaging Cartoning System

FEATURES

1. High-Precision Servo Packing: Utilizes full servo-driven motion for exact control at rates of 60–70 cases/min.

2. Nordson Adhesive Unit: Integrated with industry-leading glue systems for reliable, long-term durability.

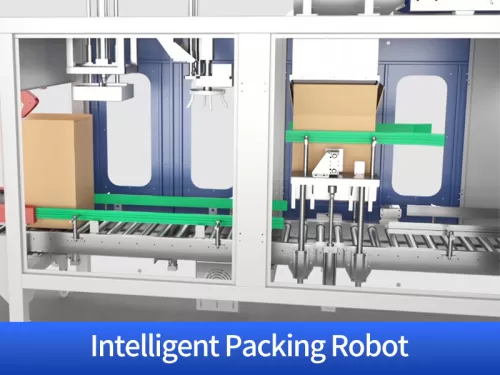

3. Robotic Case Loader: High-flexibility robotics allow for dynamic product orientations and diverse layouts.

4. Tailored Configurations: Scalable design accommodates oversized dimensions and specialized packaging formats.

Machine Structure Overview:

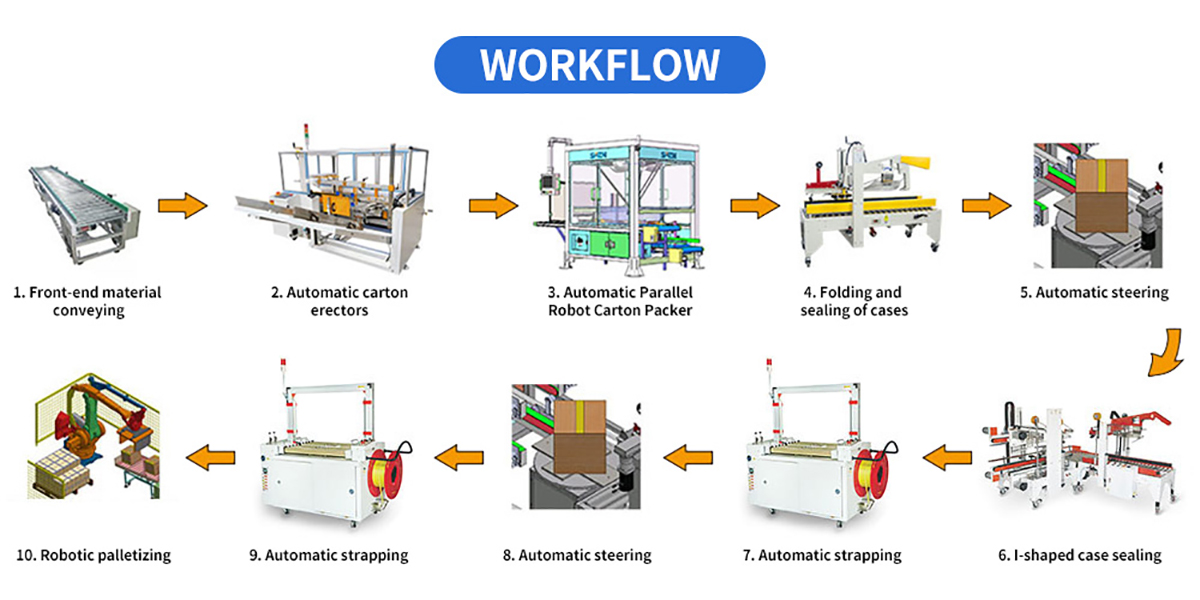

WORKFLOW

Front-end material conveying

Automatic carton erectors

Automatic Parallel Robot Carton Packer

Folding and sealing of cases

Automatic steering

Shaped case sealing

Automatic strapping and steering

Automatic strapping

PARAMETER

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
