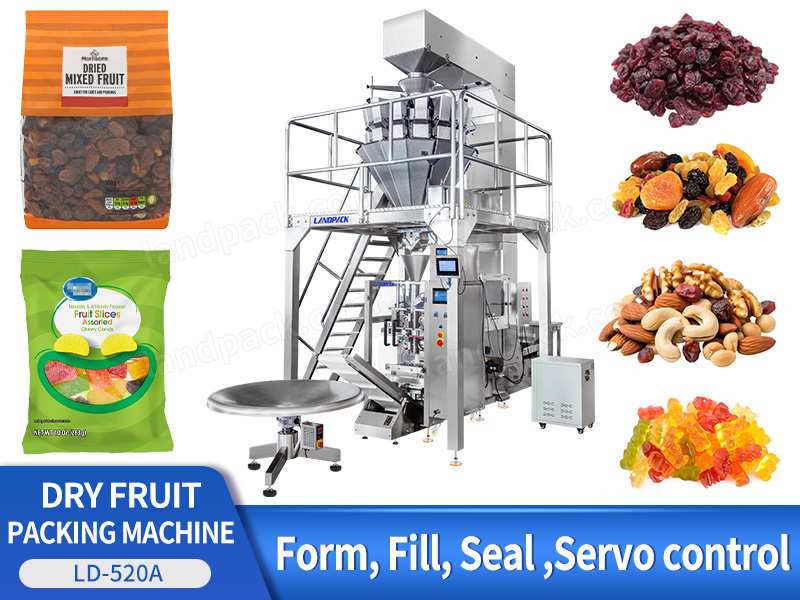

Automatic Dry Fruit Packing Machine | Raisin Vertical Pouch Packaging Machine

Introduction:

Equipped with a 14-head multihead weigher and 2.5L hoppers, this vertical form-fill-seal machine achieves precise metering even with irregular, lightweight dried fruits and nuts.

Application:

Designed for processors of dried fruit, nuts, seeds, popcorn, jerky, salt, grains, sugar, and other small particulate materials, this automated packaging line excels at accurate portioning and sealed pouches for retail markets.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This dry fruit packing machine is compatible with various bags formed from roll film, ensuring reliable sealing and neat appearance for high-speed production. Supported bag types include: pillow bags, back sealing bags, 3/4 sided seal bags. Suitable for laminated packaging films such as PET/PE, OPP/CPP, and other heat-sealable materials.

Automatic Dry Fruit Packing Machine | Raisin Vertical Pouch Packaging Machine

Suitable Products:

This vertical form-fill-seal packaging machine is engineered for free-flowing and semi-free-flowing granular products that require fast, accurate multihead weighing. With a 14-head 2.5L patterned weigher and stable material conveying system, it handles irregular shapes and mixed sizes efficiently, making it suitable for continuous, high-volume food production lines.

Suitable materials include:

Dried Fruits: Raisins, dried mango cubes, dried pineapple, dried berries

Grains & Beans: Rice, oats, lentils, chickpeas, mung beans, mixed grains

Dry Granular Foods: Breakfast cereals, pet food kibbles, sugar, salt, snack pellets

Automatic Dry Fruit Packing Machine | Raisin Vertical Pouch Packaging Machine

FEATURES

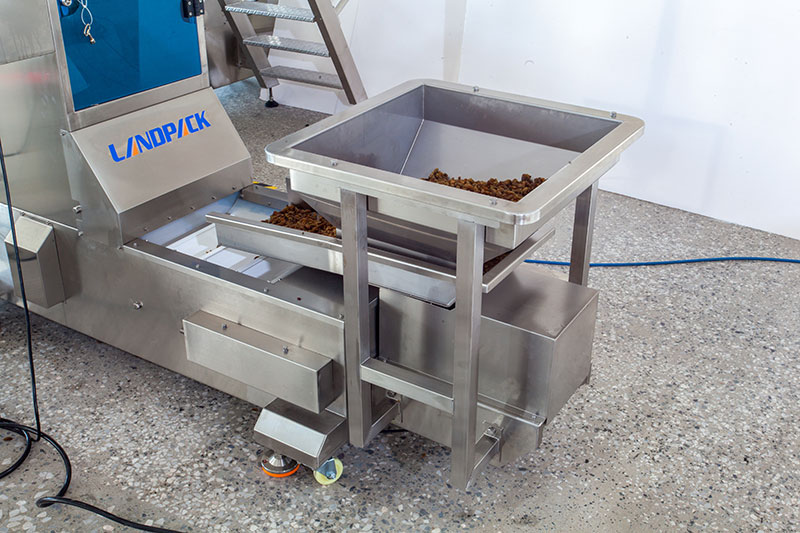

Z Type Elevator Gently conveys raisins and dried fruits to the weighing unit with a steady flow, reducing product damage and ensuring uninterrupted feeding.

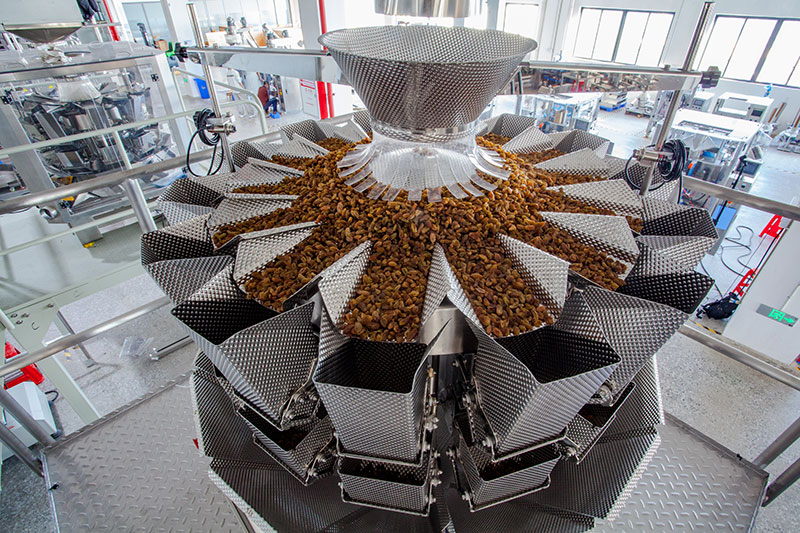

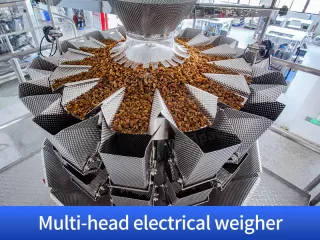

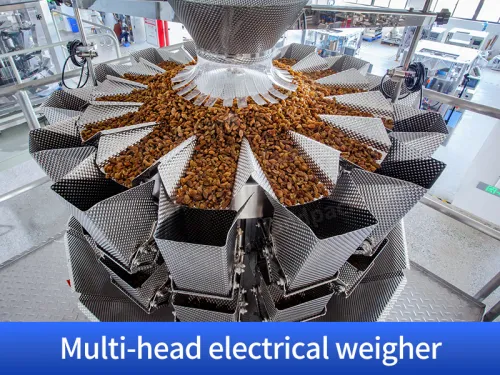

	Multi-head Electrical Weigher Delivers fast and precise weighing performance, making it ideal for free-flowing dried fruits while improving pack weight consistency and minimizing overfill.
Labeling Machine Automatically applies labels during the packaging process, supporting branding, product traceability, and regulatory requirements without impacting line speed.
	Vertical Packing Machine (VFFS) Integrates bag forming, filling, and sealing into a single compact system, providing reliable operation, clean bag presentation, and efficient production for dried fruit packaging.

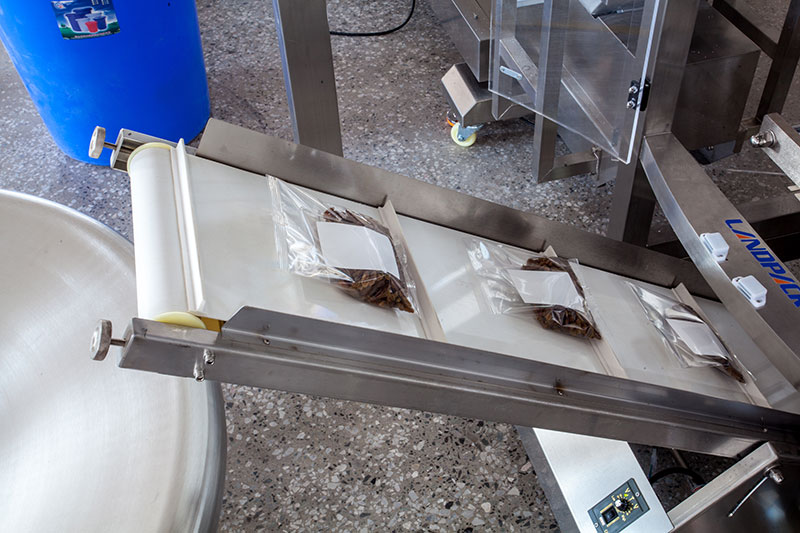

Finished Bag Conveyor Smoothly discharges finished bags to the downstream conveyor, preventing congestion and enabling continuous, hands-free operation.

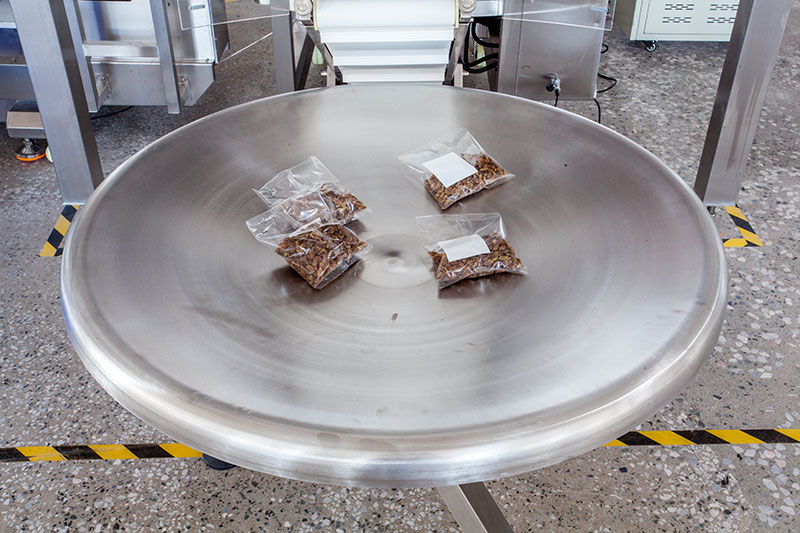

	Round Table for Collection Neatly collects completed packages, simplifying manual handling or secondary packaging steps and improving overall efficiency.

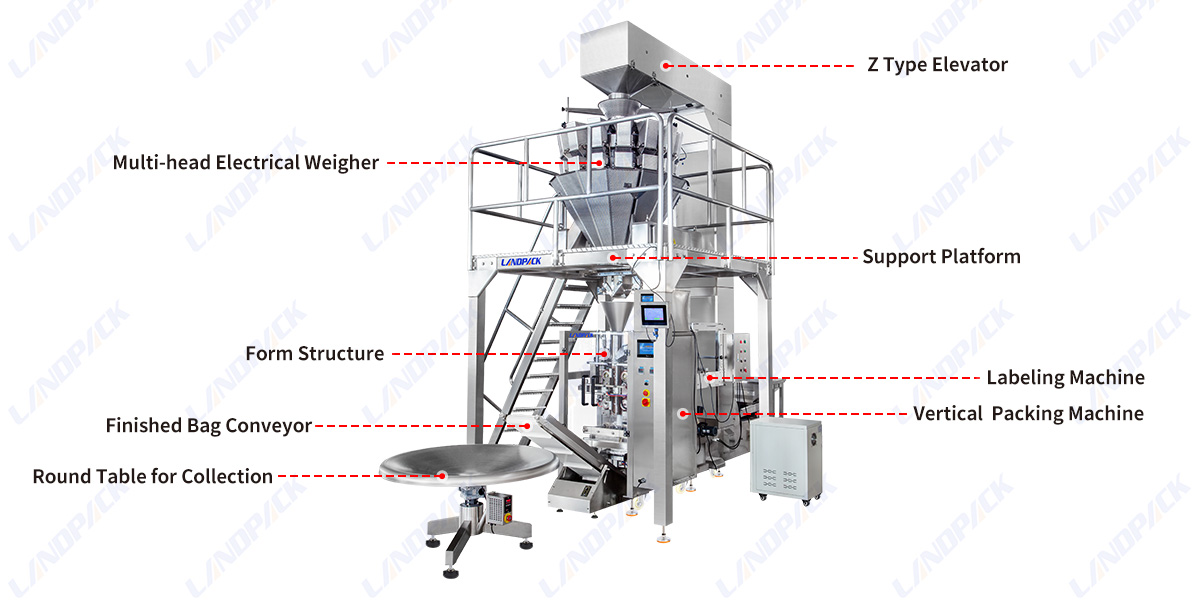

Machine Structure Overview:

1. Z Type Elevator

2. Multi-head Electrical Weigher

3. Support Platform

4. Form Structure

5. Labeling Machine

6. Vertical Packing Machine

7. Finished Bag Conveyor

8. Round Table for Collection

Automatic Dry Fruit Packing Machine | Raisin Vertical Pouch Packaging Machine

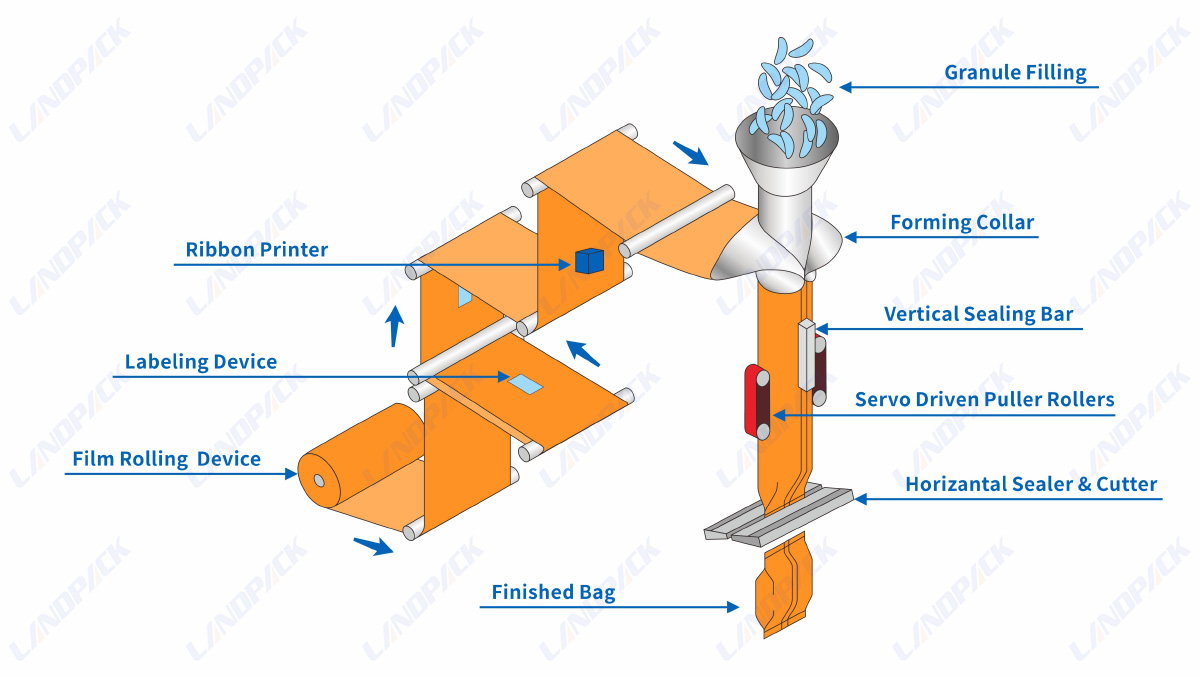

WORKFLOW

Film Unwinding

Printing & Labeling

Bag Forming

Granule Filling

Vertical Sealing

Film Pulling

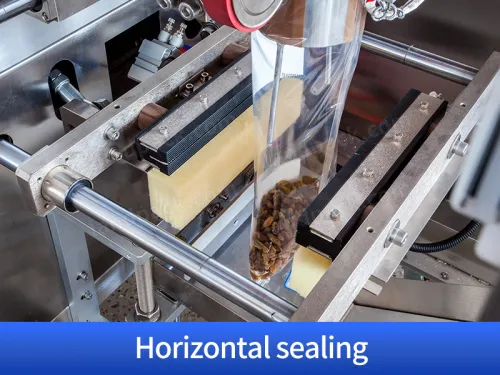

Horizontal Sealing & Cutting

Finished Bag Output

PARAMETER

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
