Applications

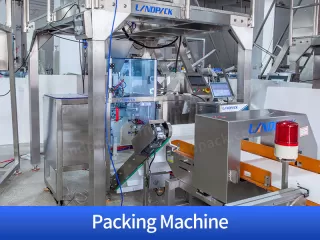

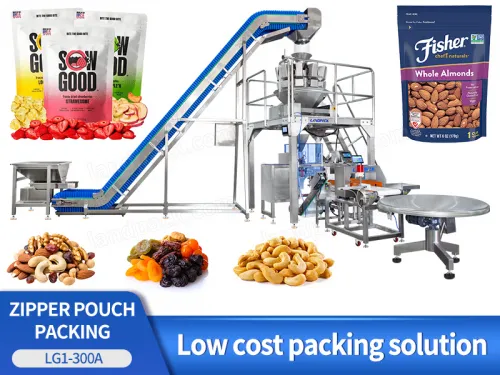

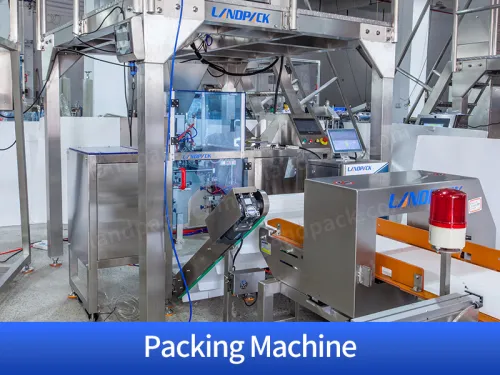

Automatic Dried Fruit Mini Doypack Pouch Packing Machine

Application:

It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch. It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.

1.Your product

2.Packaging Container

3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for dried apples, kiwi, plums, blueberries, bananas, raisins, pineapples, candied dates, dried potatoes, snack, cashew, popcorn, chocolate, candy, frozen food and more.

Automatic Dried Fruit Mini Doypack Pouch Packing Machine

FEATURES

1. Multi-head electronic weighing system ensures fast and accurate measurement for various products.

2. Built-in inkjet printer allows customizable on-screen editing for smart, efficient labeling.

3. Integrated metal detection automatically rejects contaminated products for quality assurance.

4. High-performance automated system enables continuous, uninterrupted packaging operations.

5. User-friendly touchscreen interface provides simple control and real-time parameter adjustments.

6. Capable of packaging up to 15 bags per minute, ideal for medium-scale production needs.

Automatic Dried Fruit Mini Doypack Pouch Packing Machine

WORKFLOW

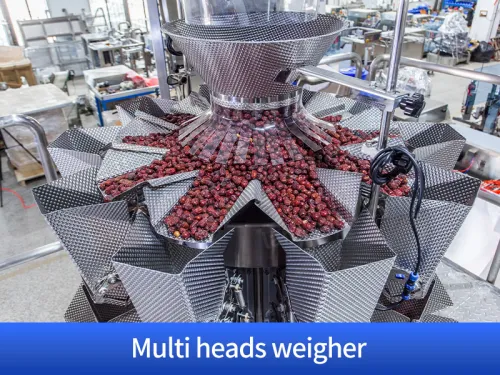

Multi Head Electronic Scale

Inkjet Printer

Automatica Bag Feeding

Zipper & Bag Opening

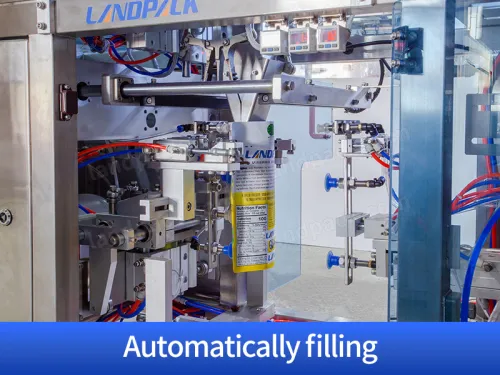

Automatica Filling

Sealing

Output

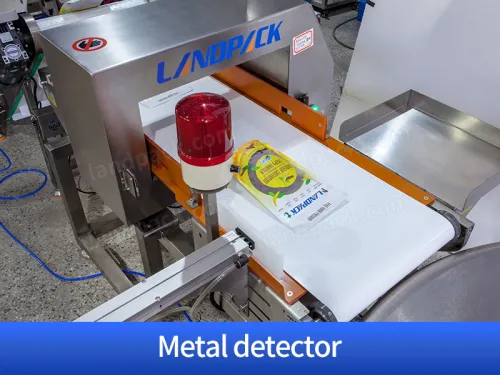

Metal Detector

PARAMETER

Model	LDB-300	LDB-430	LDB-600
Bag Material	Multi-layer Composite Premade Bag (e.g.: PET/PE)
Premade bag type	3-sides sealing bag, stand-up bag
Upgraded Bag Type	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device)
Bag size	80mm≤W≤300mm, 100mm≤L≤300mm	80mm≤W≤300mm, 100mm≤L≤430mm	250mm≤W≤500mm, 380mm≤L≤600mm
Speed	5-15 bags/min	5-15 bags/min	5-10 bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min (Standard machine, no additional function)
Body Dimension	17706001230mm	17706001230mm	167711401450mm
Machine Weight	300kg	350kg	450kg
