Applications

Automatic Doypack Premade Pouch Packing Machine for Sticky Prunes and Nuts

Application:

This machine is widely used for packaging sticky dried fruits like prunes, dates, and raisins, mixed or single nuts such as cashews, almonds, and pistachios, trail mix, granola clusters, jelly candies or soft confectionery, and small irregular granules with sticky surfaces.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

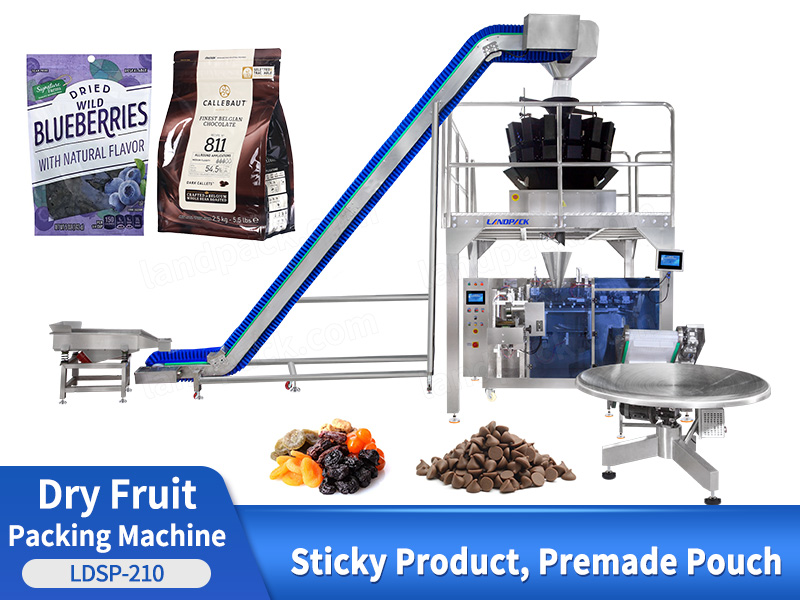

Automatic Doypack Premade Pouch Packing Machine for Sticky Prunes and Nuts

FEATURES

1. Special vibrating mesh system prevents sticky products like dried prunes from clumping together.

2. Washable conveyor belt with waterproof motor allows easy cleaning without damaging equipment.

3. 14-head weigher with Teflon-coated plates and vibrating feeder prevents sticky materials from affecting accuracy.

4. Fully automated horizontal pouch machine handles feeding, coding, opening, filling, nitrogen flushing, and sealing.

5. Built-in nitrogen flushing extends shelf life by reducing oxygen, perfect for nuts and dried fruits.

6. Space-saving design includes rotary table and product conveyor for smooth packaging with less manual work.

Automatic Doypack Premade Pouch Packing Machine for Sticky Prunes and Nuts

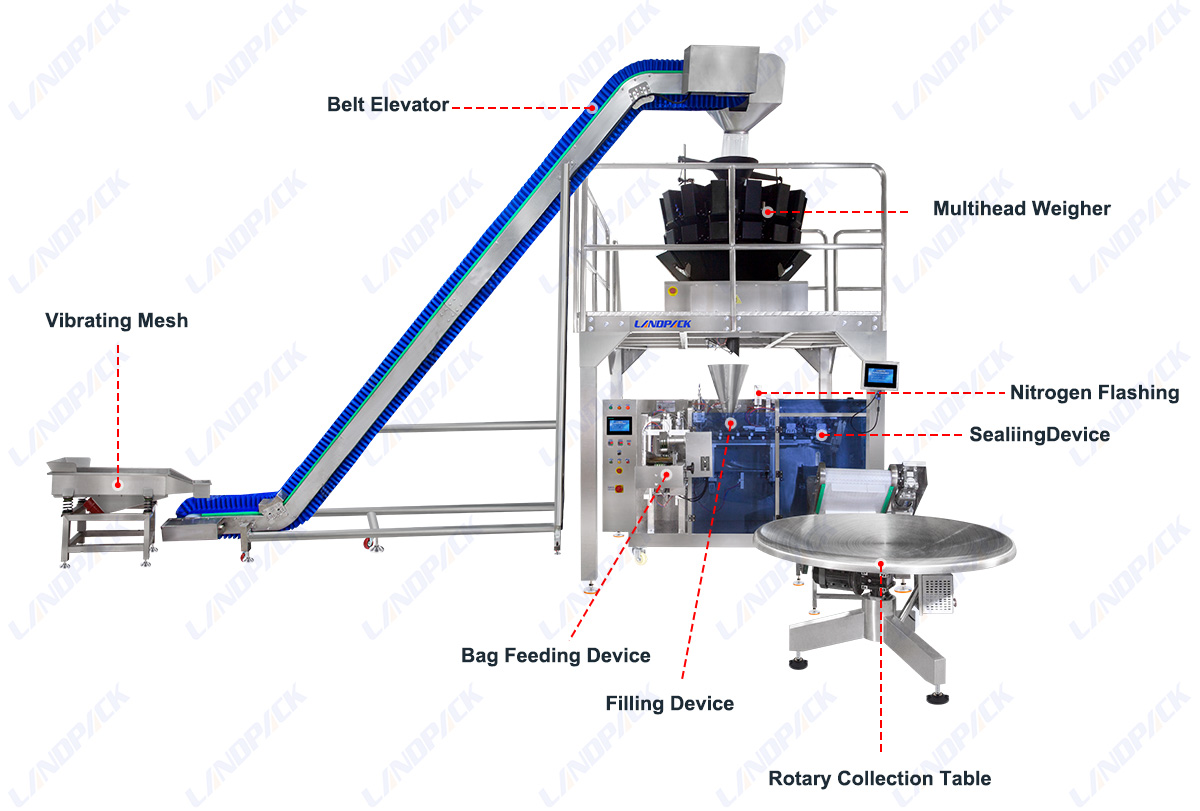

WORKFLOW

1. Vibrating Mesh Feeding System

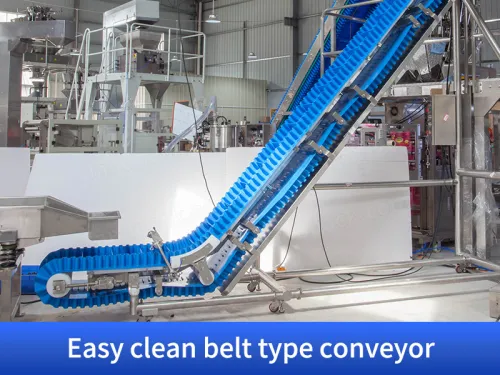

2. Belt Conveyor

3.14-Head Combination Weigher

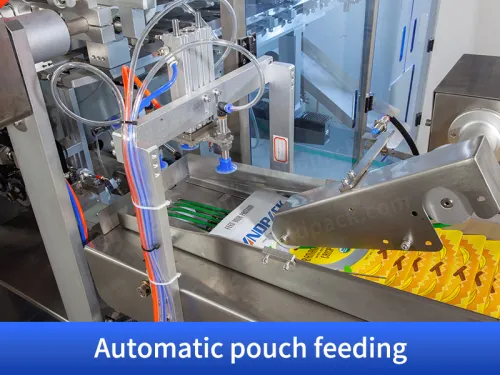

4. Automatic Pouch Feeding

5. Date Coding

6. Filling

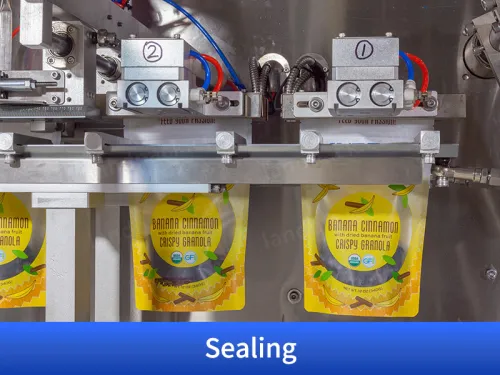

7. Nitrogen Flushing and Sealing

8. Finished Product Conveyor

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product

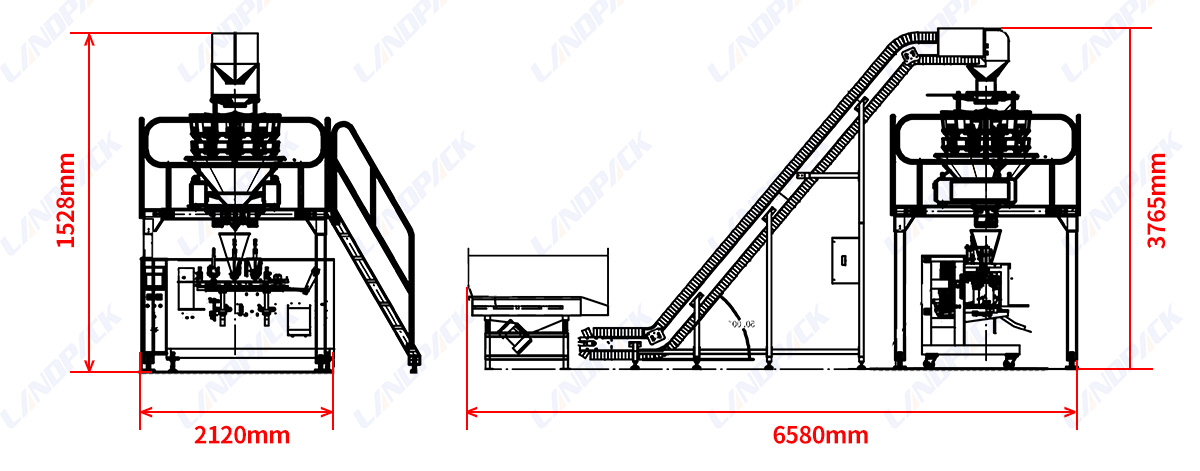

Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
