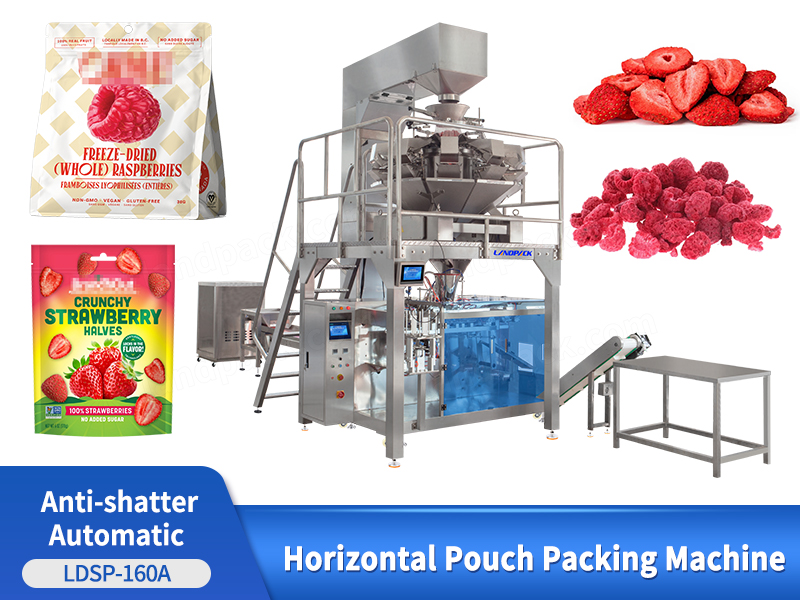

Autoamtic Dry Fruit Packing Machine Horizontal Pouch Sealing Machine

Introduction:

This horizontal pre-made bag packaging machine is designed specifically for fragile products and features a multi-head weighing and nitrogen rinsing system.

Application:

It is widely used in the food industry for packaging dried fruits, nuts, almonds, cashews, pet food, jerky, popcorn, cookies, frozen food, gummy, raisins, snacks, potato chips, biscuits, and candies.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This horizontal premade pouch packing machine is ideal for granule and small-piece products such as dried fruits, nuts, almonds, cashews, pet food, jerky, popcorn, cookies, frozen food, gummy, raisins, snacks, potato chips, biscuits, and candies, chocolate, and coffee beans. The machine runs continuously at speeds up to 45 bags per minute.

Autoamtic Dry Fruit Packing Machine Horizontal Pouch Sealing Machine

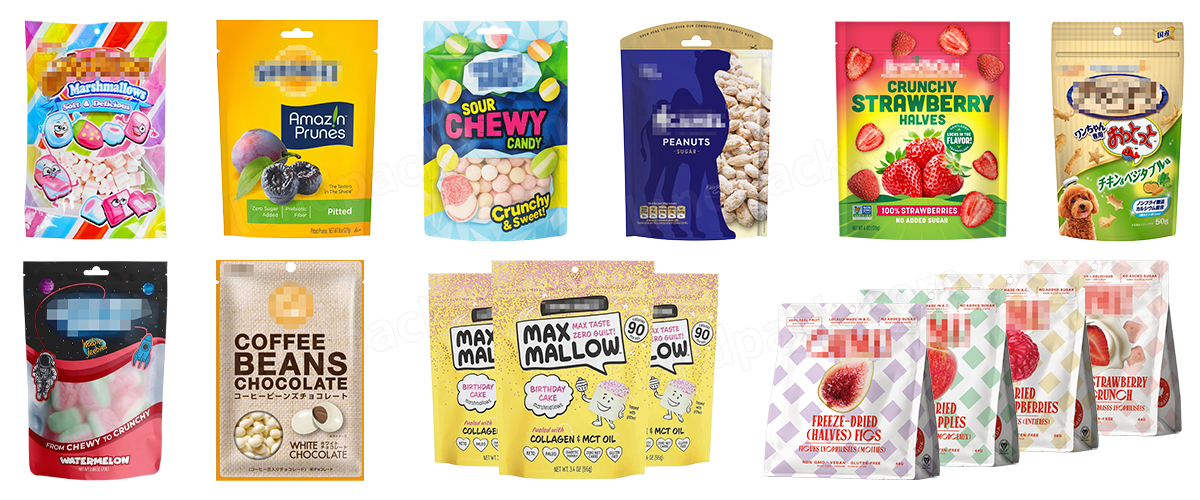

Package Type:

Supports various premade pouch styles including stand-up pouches, zipper pouches, flat bottom pouch, flat pouch and M shape pouch, etc.

FEATURES

1. Suitable for fragile dried fruits such as freeze-dried strawberries, jackfruit, and other delicate snacks.
2. Bag detection sensors ensure accurate operation — no bag, no filling or sealing.
3. Full 304 stainless steel construction with a multi-head gentle weighing system to reduce product breakage.
4. The vacuum detection system controls the suction cup to pick up and open the pouch reliably.
5. Reduces manual labor and improves packing efficiency.
6. Supports automatic pouch feeding, filling, and sealing; compatible with different filling systems for powder, liquid, or granule products.
7. Stable servo-driven system ensures accurate pouch sealing quality.

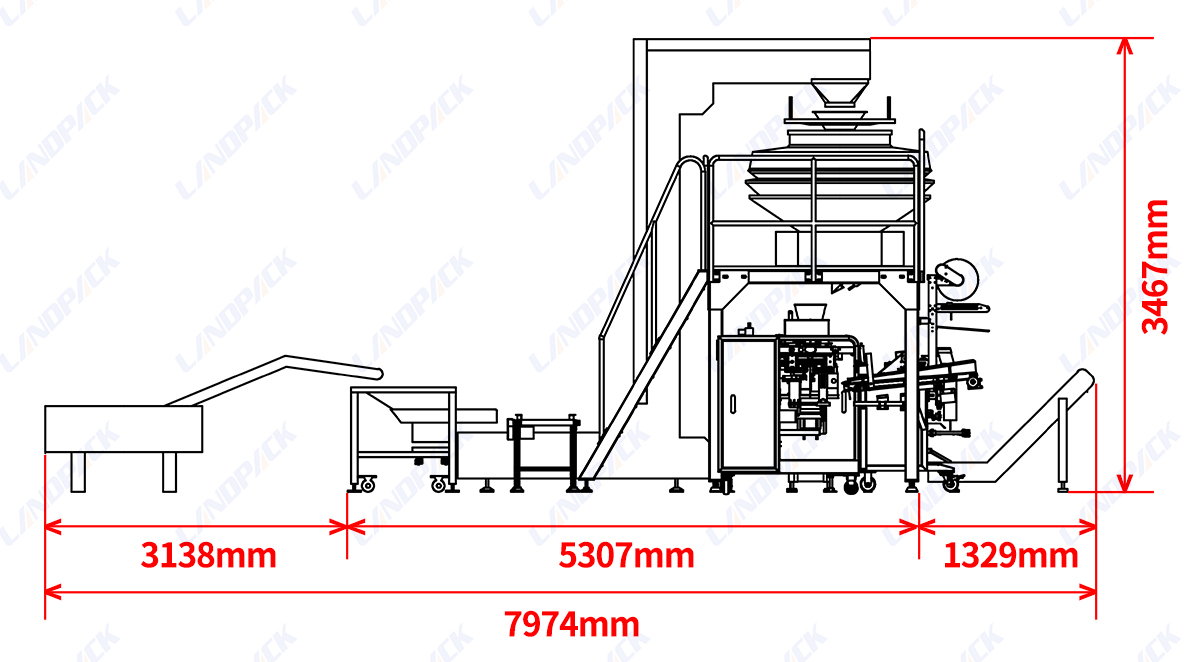

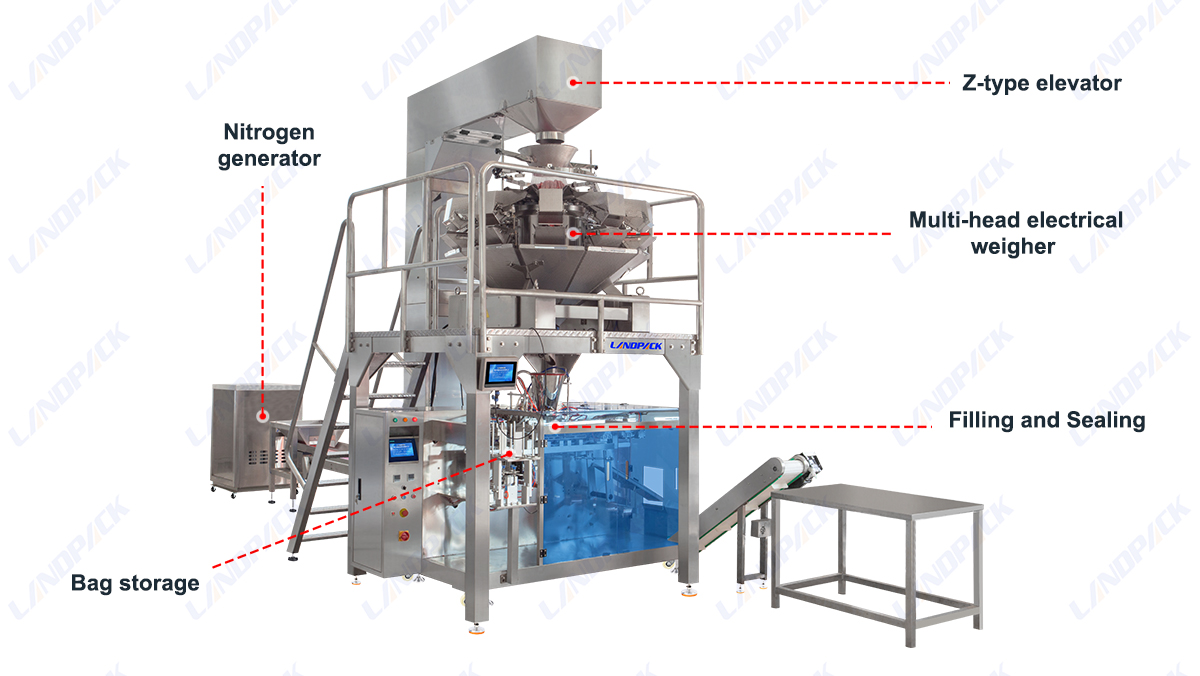

Machine Structure Overview:

Autoamtic Dry Fruit Packing Machine Horizontal Pouch Sealing Machine

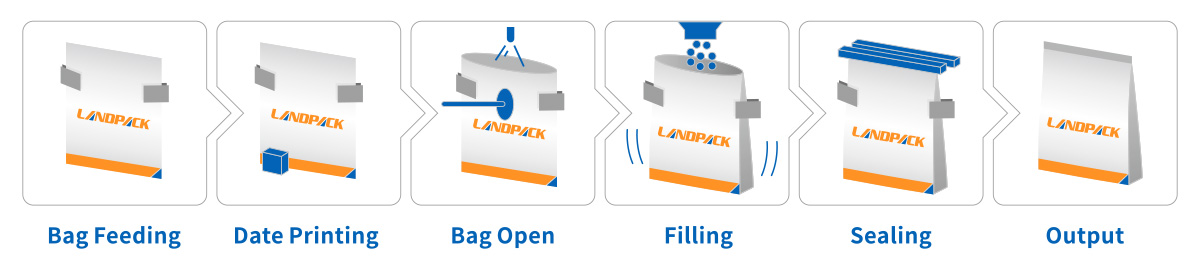

WORKFLOW

Z-type elevator

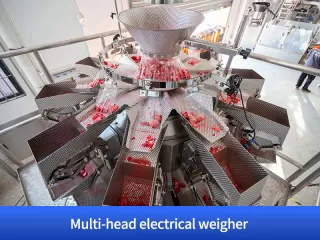

Multi-head weigher

Bag feeding

Bag pickup (coding)

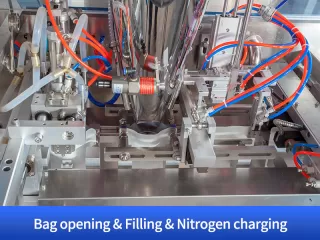

Bag opening

Product filling

Nitrogen flushing

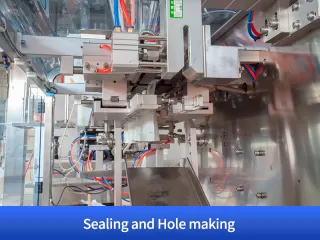

Sealing & hole punching

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
