Rotary Type Doypack Machine Doypack Pouch Packaging Machine

Application:

This system efficiently handles frozen seafood, mixed nuts, coffee beans, dry fruits, oatmeal flakes, meat chunks, fish fillets, potato chips, assorted seeds, sugar-free granules, peanuts, snack mixes, whole grains, legumes, spices, and various other granular or solid food products with precise portion control.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This machine is widely used for the automatic packaging of granular, block, and particulate products across multiple industries, including:

Food Industry: Frozen seafood, mixed nuts, coffee beans, dry fruits, oatmeal flakes, meat chunks, fish fillets, potato chips, assorted seeds, sugar-free granules, peanuts, snack mixes, whole grains, legumes, spices, and various other granular or solid food products

Health & Wellness: Teas, nutritional supplements, dried herbs, and protein powders.

Pet Food Industry: Pet food, treats, and kibble.

Agriculture & Chemicals: Seeds, fertilizers, pesticides, desiccants, and washing powder.

Pharmaceuticals: Granular and powder products requiring hygienic and precise packaging.

Rotary Type Doypack Machine Doypack Pouch Packaging Machine

FEATURES

1. The machine supports various pouch types including stand-up pouches, zipper bags, and Doypack-style premade pouches for flexible packaging solutions.

2. Specialized zipper opening mechanism ensures smooth and reliable pouch presentation for efficient filling operations.

3. Integrated sponge exhaust system removes excess air before sealing to maintain product freshness and extend shelf life.

4. High-speed rotary design combines weighing and filling functions to maximize production output and efficiency.

5. Precision 14-head combination weigher with anti-stick dimple plates delivers accurate portion control for consistent product weights.

6. Fully automated filling and sealing process features vibration-assisted filling and dual sealing stations for secure, leak-proof packaging.

7. Intelligent detection sensors prevent sealing of empty pouches, significantly reducing material waste and production costs.

8. Intuitive touchscreen interface allows easy customization of pouch sizes, materials, and packaging parameters for different products.

9. Versatile packaging capability handles fish fillets, meats, nuts, dried fruits, beans, and other irregular or granular products effectively.

10. Constructed with food-grade stainless steel for superior hygiene, easy cleaning, and compliance with strict food safety regulations.

Rotary Type Doypack Machine Doypack Pouch Packaging Machine

WORKFLOW

1. Multi-Head Weigher Measure Weight

2. Take the bags

3. Ink jet printer

4. Open the bags and zipper

5. Open bag mouth and bottom

6. Vibration and filling

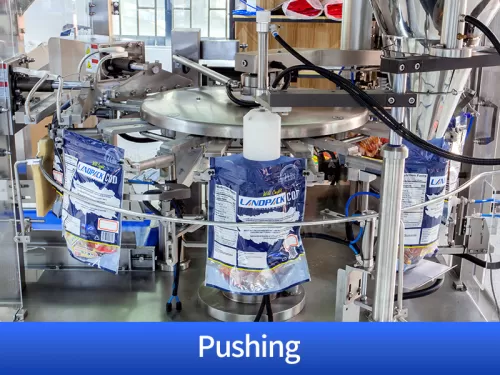

7. Pushing

8. Exhaust and sealing

PARAMETER

Model	LD-8200	LD-8250	LD-8300
BAG SPEED	max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE	L100-300mm W70-200mm	L100-350mm W130-250mm	L150-450mm W200-300mm
BAG TYPE	Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE	10G-1KG	10G-2KG	10G-3KG
MEASUREMENT ACCURACY	≤±0.5~1%，（Depanding on the measurement equipment and materials）
MAXIMUM BAG WIDTH	200mm	250mm	300mm
GAS CONSUMPTION	0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE	1.5KW 380V 50/60HZ	1.8KW 380V 50/60HZ	2KW 380V 50/60HZ
AIR COMPRESS	Not less than 1 CBM
DIMENSION	L1900W1400H1450		L2000W1500H1550
MACHINE WEIGHT	1300KG		1500KG
