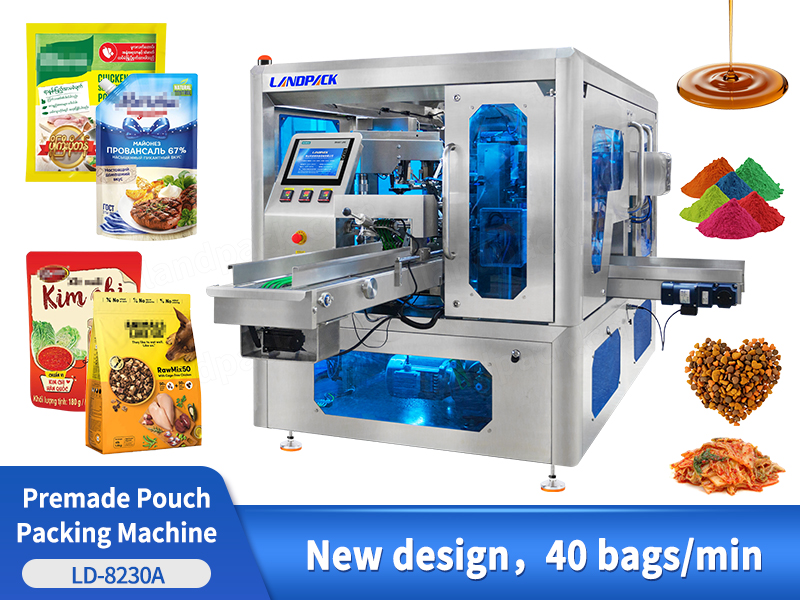

Automatic Rotary Doypack Machine Premade Pouch Filling and Sealing Machine

Introduction:

The machine features a ribbon date coding system, secondary material pushing device, and safety door protection.

Application:

This 8-station pre-made pouch packing machine is designed for flexible packaging of nuts, chocolate, candies, seeds, granules, dried fruits, pet food, jerky, pickles, snacks, biscuits, and other solid or semi-free-flowing products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The rotary pouch packing machine is designed for premade pouch and doypack packaging, including stand-up pouches, zipper pouches, spout pouches, m shape pouches, and other customized pouches.

Automatic Rotary Doypack Machine Premade Pouch Filling and Sealing Machine

FEATURES

1. Utilizes a custom-designed, patent-pending rotary packaging machine.

2. The entire machine frame is constructed of stainless steel with a chamfered, brushed, and polished surface.

3. Eight-station design; bag width can be adjusted via a single button, supporting various bag sizes.

4. Servo-controlled zipper opening allows for easy adjustment of the bag opening angle.

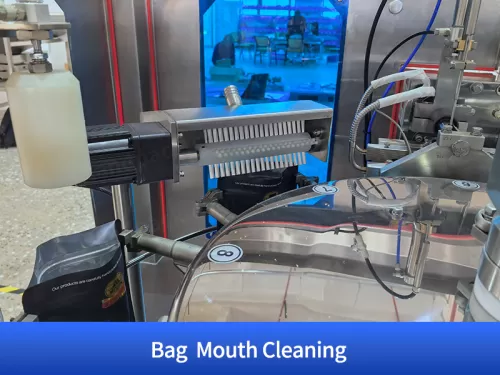

5. Bag punching and rinsing functions ensure neat and aesthetically pleasing sealing.

6. Equipped with a Siemens PLC, 10-inch touchscreen, safety door, alarm system, and independent electrical design.

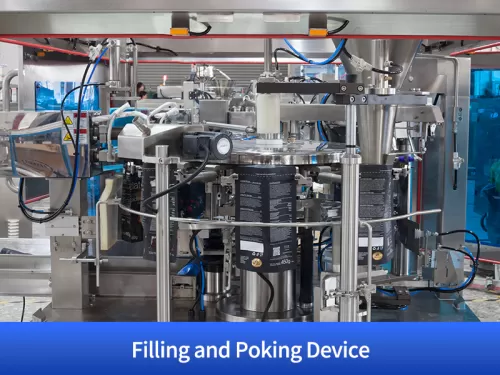

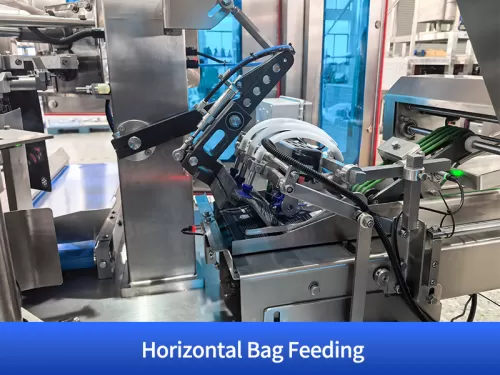

Machine Structure Overview:

Automatic Rotary Doypack Machine Premade Pouch Filling and Sealing Machine

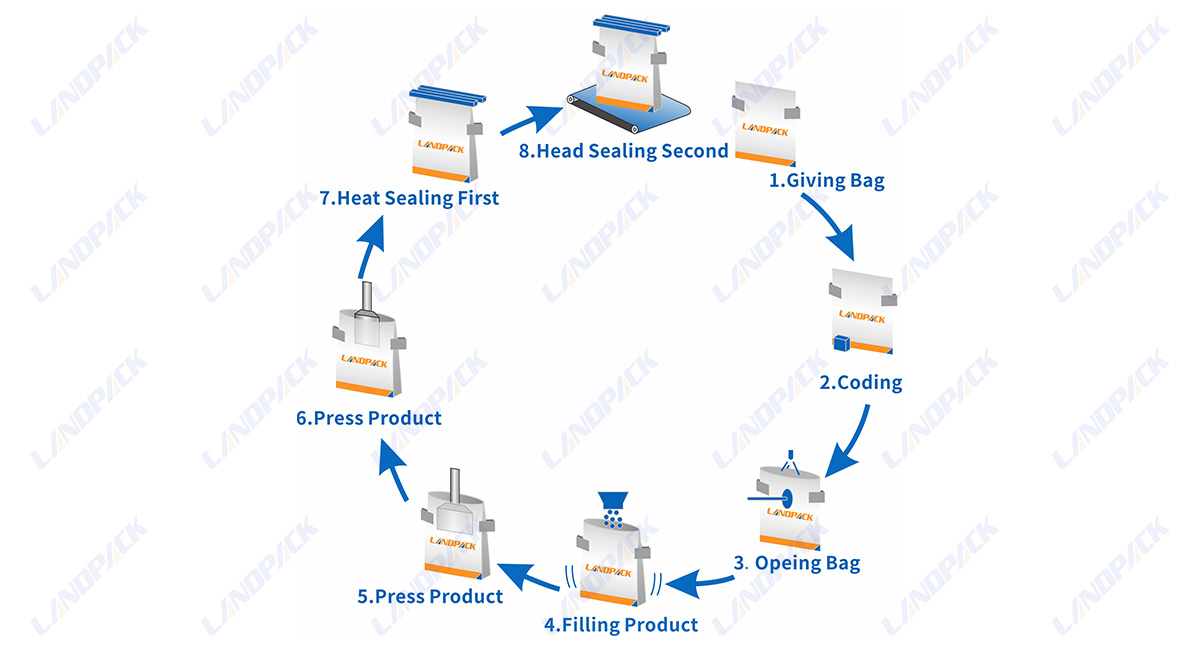

WORKFLOW

Giving Bag

Coding

Opeing Bag

Filling Product

Press Product

Heat Sealing First

Head Sealing Second

PARAMETER

ITEM	LD-8200	LD-8250	LD-8300
BAG SPEED	max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE	L100-300mm W70-200mm	L100-350mm W130-250mm	L150-450mm W200-300mm
BAG TYPE	Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE	10G-1KG	10G-2KG	10G-3KG
MEASUREMENT ACCURACY	≤±0.5~1%，（Depanding on the measurement equipment and materials）
MAXIMUM BAG WIDTH	200mm	250mm	300mm
GAS CONSUMPTION	0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE	1.5KW 380V 50/60HZ	1.8KW 380V 50/60HZ	2KW 380V 50/60HZ
AIR COMPRESS	Not less than 1 CBM
DIMENSION	L1900W1400H1450		L2000W1500H1550
MACHINE WEIGHT	1300KG		1500KG
