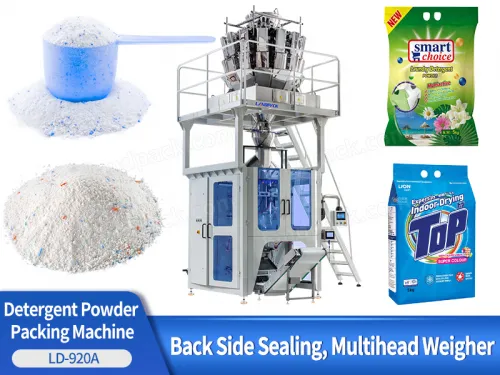

2kg 3kg 5kg Detergent Powder Packing Machine | High-Speed Automatic Filler

Introduction:

The Big Bag Powder Packaging Machine is engineered for heavy-weight packing of non-liquid powders across chemical, food and agricultural sectors.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Featuring full-automatic inside/outside thermal transfer coding, a 14-head 7.5 L electronic weigher for high-speed precision, and pouch widths up to 450 mm, it’s perfect for bulk detergent, spice blends, fertilizer, animal feed, coffee creamer and similar products.

2kg 3kg 5kg Detergent Powder Packing Machine | High-Speed Automatic Filler

FEATURES

1. Dual-sided thermal transfer printing automatically marks batch codes, dates, and logos on both bag surfaces for complete traceability and brand consistency.

2. High-precision 14-head weighing system with 7.5L hoppers delivers rapid, accurate dosing to optimize fill consistency and reduce product giveaway.

3. Handles wide bags up to 450mm, perfect for bulk packaging of detergents, fertilizers, feed, and other granular/powdered products.

4. Servo-driven film feeding with PLC control ensures precise material alignment, high-speed operation, and self-cleaning dust removal for contamination-free sealing.

5. User-friendly touchscreen interface allows single-command operation, live performance tracking, and swift adjustments between packaging formats.

6. Built-in vacuum dust extraction at filling and sealing stations maintains workspace cleanliness and prevents product cross-mixing.

7. Hygienic stainless-steel design features tool-free disassembly for effortless cleaning, complying with food/pharmaceutical sanitation requirements.

8. Integrated conveyor system with inspection zone enables uninterrupted production flow and quality verification before palletizing.

9. Expandable with multi-screw filler attachment for blending different powders into single bags, increasing formulation flexibility.

10. Robust construction with leveling feet provides vibration-free operation at peak speeds of 90 bags/minute.

2kg 3kg 5kg Detergent Powder Packing Machine | High-Speed Automatic Filler

WORKFLOW

Automatic feeding system

Thermal transfer printer

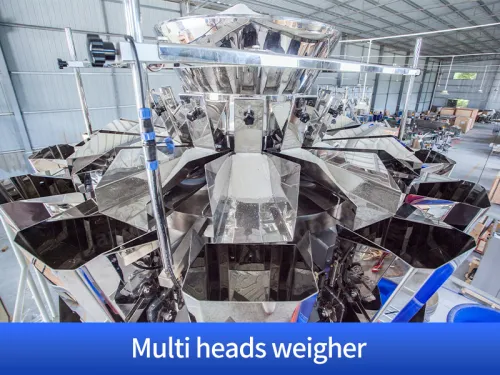

Multi-head electronic weigher

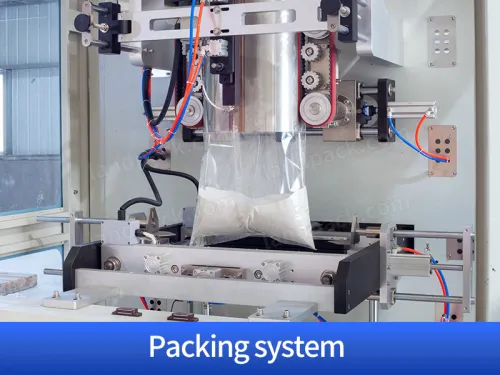

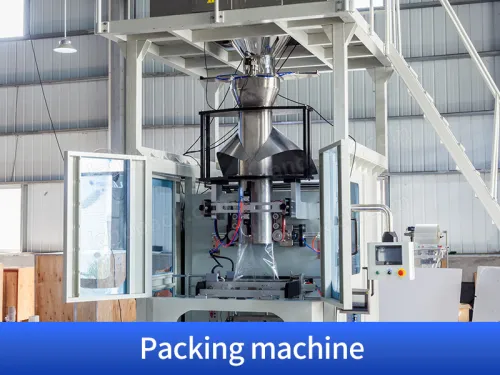

Vertical form-fill-seal (VFFS) unit

Dust extraction module

Finished bags discharge

Final grouping and display

PARAMETER

Model	LD-420	LD-520	LD-720	LD-900
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L
