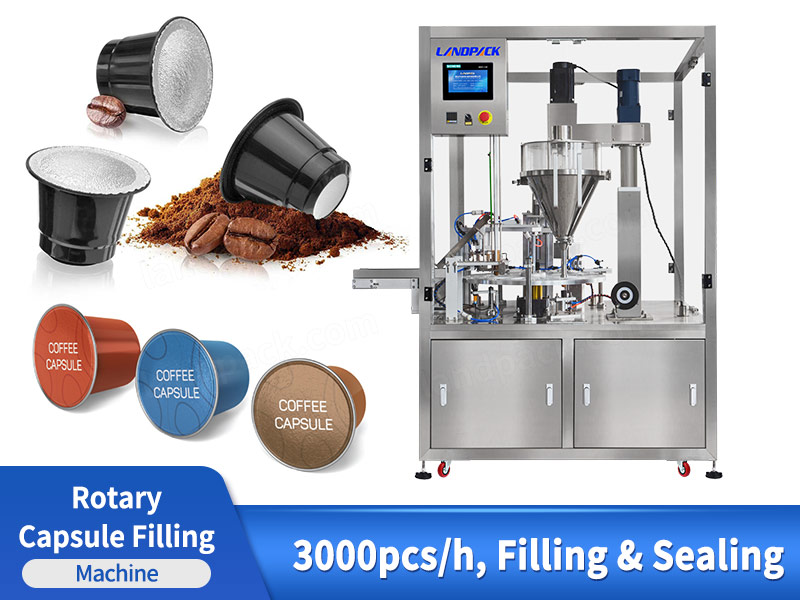

Automatic Rotary K-Cup Filling Machine Nespresso Coffee Capsule Filling Machine

Introduction:

The machine integrates automatic capsule feeding, nitrogen filling, auger filling, lid placing, sealing and finished capsule discharge into one continuous process.

Application:

This automatic k cup filling machine is designed for packaging ground coffee, espresso powder, milk powder, cocoa powder, tea powder, protein powder, and supplement powder into cups to form a capsule for daily usage.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Rotary K-Cup Filling Machine Nespresso Coffee Capsule Filling Machine

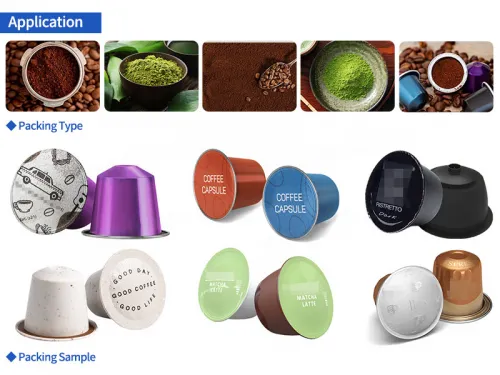

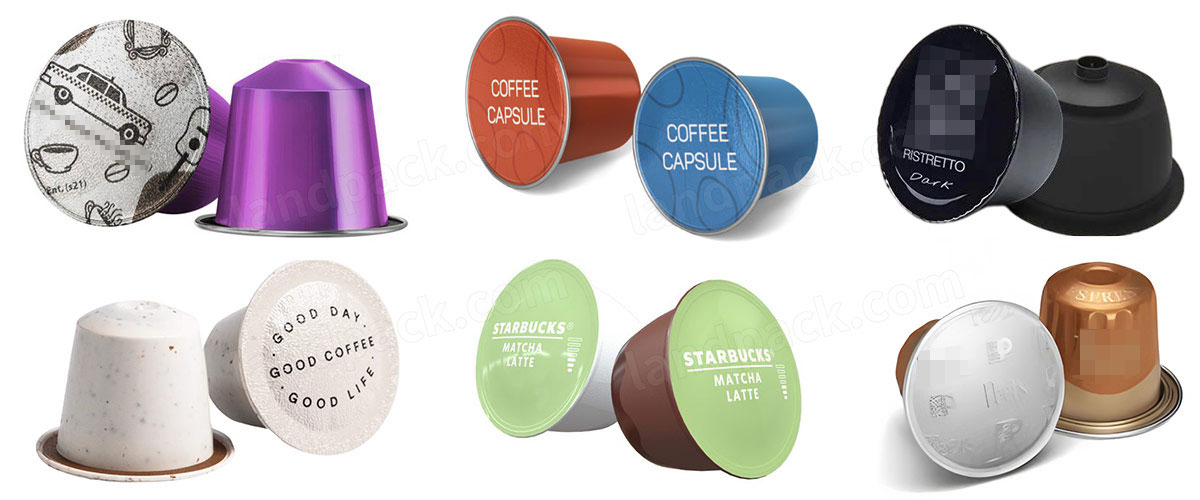

Package Type:

Suitable for preformed coffee capsules (K-cups, Nespresso-compatible cups) sealed with aluminum foil lids.Supports airtight sealing with optional nitrogen flushing, ensuring product freshness.

FEATURES

1. Rotary multi-station system integrates capsule feeding, powder filling, lid placing and sealing.

2. High-precision screw filling system ensures fast speed and accurate dosing.

3. Automatic lid picking and placing system for precise aluminum foil sealing.

4. PLC control with high-quality components ensures stable and reliable operation.

5. Stainless steel structure with compact design for durability and easy cleaning.

6. Equipped with safety protection and emergency stop for secure operation.

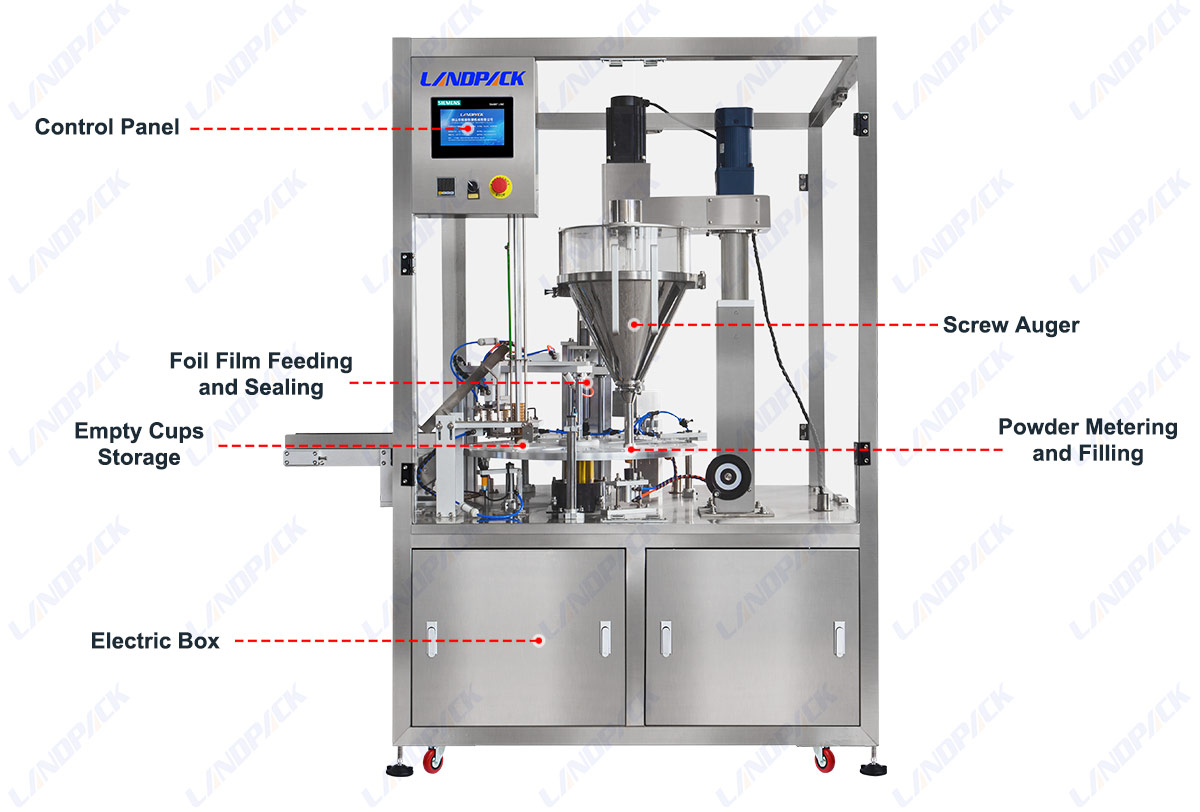

Machine Structure Overview:

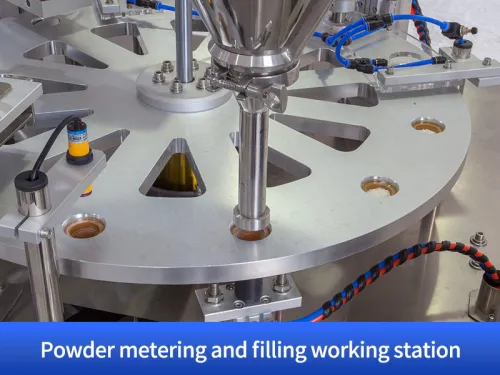

1. Control Panel 2. Screw Auger, 3. Foil Film Feeding and Sealing, 4. Powder Metering, 5. Empty Cups Storage 6. Powder Metering and Filling

Automatic Rotary K-Cup Filling Machine Nespresso Coffee Capsule Filling Machine

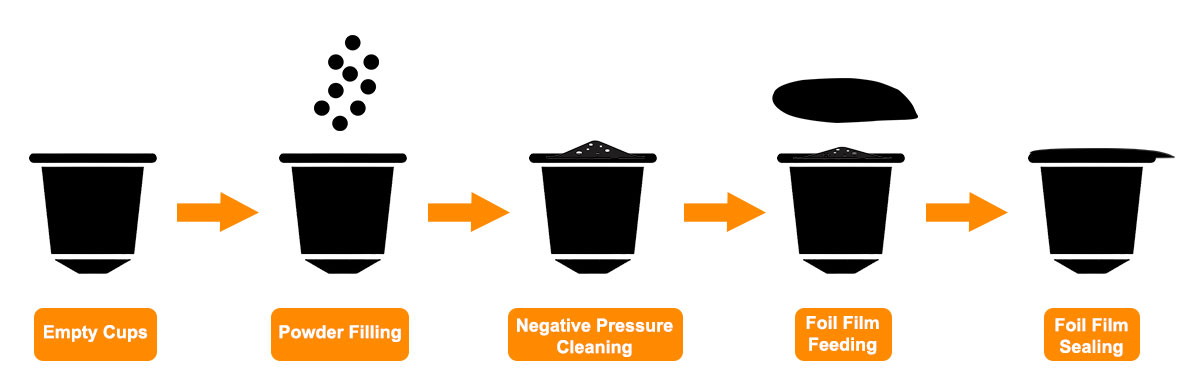

WORKFLOW

Cup Feeding

Powder filling

Nitrogen flushing (optional)

Lid placement

Heat sealing

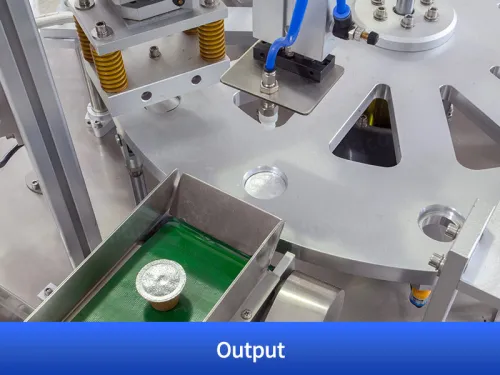

Finished capsule output

PARAMETER

	Specification
	Production Capacity	800-1500cups/hour
	Measurement	Screw head filling (1 or 2 heads)
	Filling Range	5-10g ( Can be customized )
	Size (L)	1500(W)1200(H) 1700mm
	Voltage	220V,50/60HZ,2.2kw
	Weight	500kg
	Air Supply	1m/points, 0.6-0.75Mpa
	Structure	304 stainless steel body
