Rotary Cup Filling and Sealing Machine Snack Cup Filling Machine

Introduction:

The granule cup filling and sealing machine is applicable to uniform granules, mixed products and materials with stable flow characteristics.

Application:

Suitable for weighing, filling and sealing of various granule and solid products such as popcorn, puffed snacks, biscuits, bugles, potato chips, nuts, seeds, candy, gummy, chocolate beans, dried fruits, rice, beans, sugar, salt, coffee beans, pet food pellets and other small particle materials.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Rotary Cup Filling and Sealing Machine Snack Cup Filling Machine

Package Type:

Plastic cup / Paper cup / Aluminum cup / Pre-formed cup / Tray / Foil lid sealing / Labeling packaging

FEATURES

1. Multi-head weigher for quantitative weighing of granule products before filling.

2. Automatic cup denesting, filling, lid placing and heat sealing in one line.

3. Compatible with nitrogen flushing system for products requiring shelf life extension.

4. Integrated labeling machine for cup side labeling after sealing.

5. PLC control system with touch screen for operation and parameter setting.

6. Stainless steel structure for food contact parts.

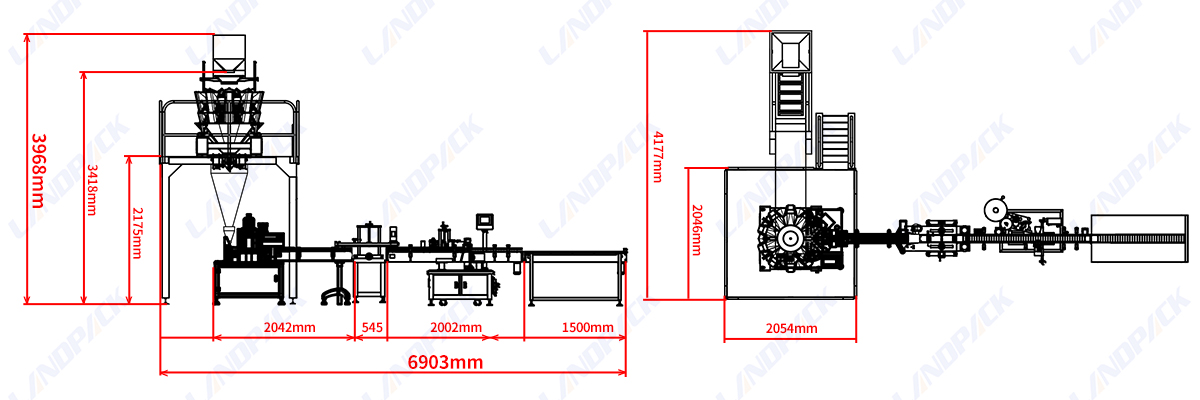

Machine Structure Overview:

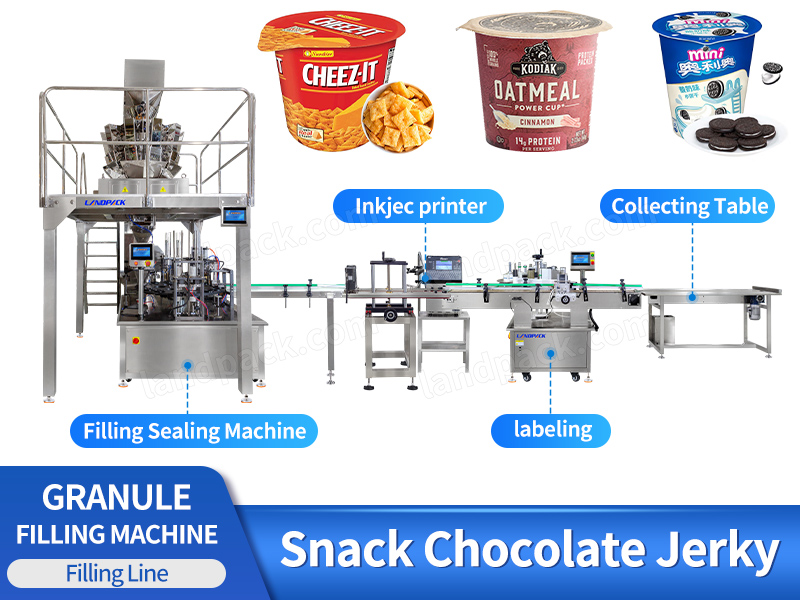

1. Cup Granule Filling Machine 2. Multi Heads Weighe 3. Automatic Inkject Date Printer 4. Tapper Cups Labeling Machine 5. Collecting Table

Rotary Cup Filling and Sealing Machine Snack Cup Filling Machine

WORKFLOW

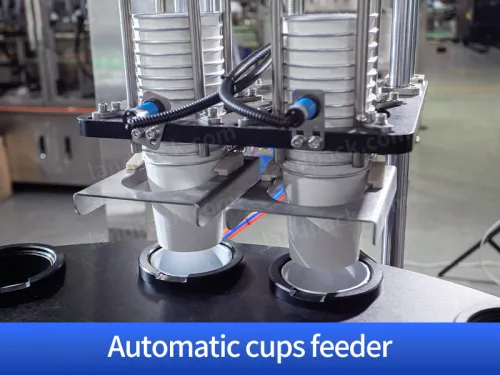

Cup Denestor

Filling

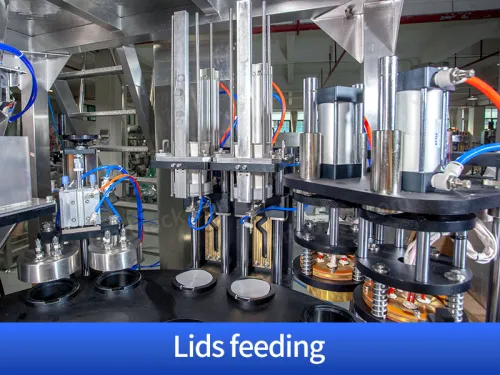

Foil Pick&Place

Finished Product output

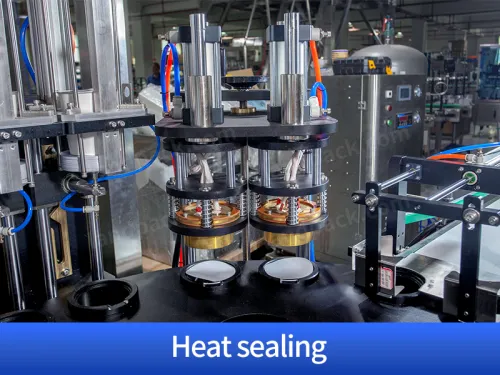

Seal

PARAMETER

	Product Name	Automatic Filling Production Line For Granule
	Model	LD-AF01
	Filling Range	10-2000g (Customizable)
	Filling Speed	120 PCS/min
	Measurement accuracy	±0.3-1.5%
	Power	1 KW
	Working power supply	220V、50Hz
	Working pressure	0.6-0.8MPa
	Weight	400kg
	Size	L4002W2694H2250(mm)
