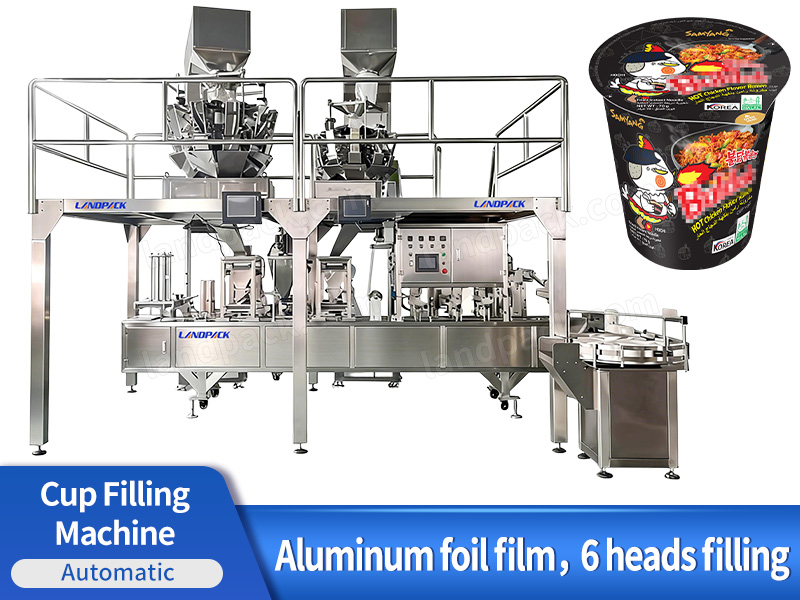

Automatic Instant Noodles Cup Filling and Sealing Machine

Introduction:

Linear cup sealing machine for instant noodle packaging with multihead weigher integration.

Application:

Suitable for cup noodles, rice meals, dessert, ice cream and multi-component food filling, featuring automatic cup feeding, filling, foil sealing, and optional utensil placement.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This linear cup sealing machine is designed for automatic packaging of instant noodle cups and similar products. It is suitable for dry or semi-dry food items that require multi-step filling and sealing in a cup format. Typical applications include: instant cup noodles (round or square noodle blocks), rice with noodles or mixed grain meals, vermicelli, pasta, or quick-cook meals, powder or granule seasoning combinations, snack cups with multi-component filling.

Automatic Instant Noodles Cup Filling and Sealing Machine

Package Type:

Pre-formed cups with multi-component filling and aluminum foil sealing in a continuous linear process.

FEATURES

1. Linear structure allows step-by-step processing along one direction.

2. Compatible with multihead weighers for solid product dosing.

3. Supports noodle cake, seasoning, and accessory filling.

4. Automatic cup feeding and positioning.

5. Foil pick and place with heat sealing.

6. Optional fork or spoon insertion module.

7. Adjustable filling stations for different product combinations.

8. Stainless steel construction for food contact parts.

9. PLC control with touch screen interface.

10. Modular design for flexible configuration.

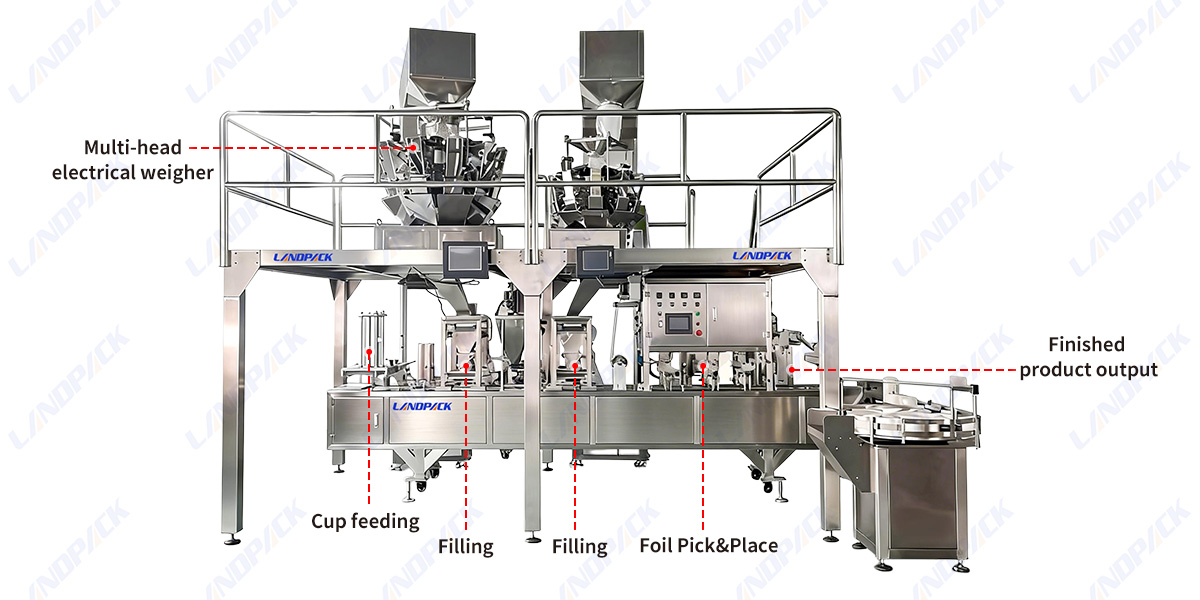

Machine Structure Overview:

1. Multi-Head Electrical Weigher 2. Cup Feeding 3. Foil Pick&Place 4. Filling 5. Finished Product Outpu

Automatic Instant Noodles Cup Filling and Sealing Machine

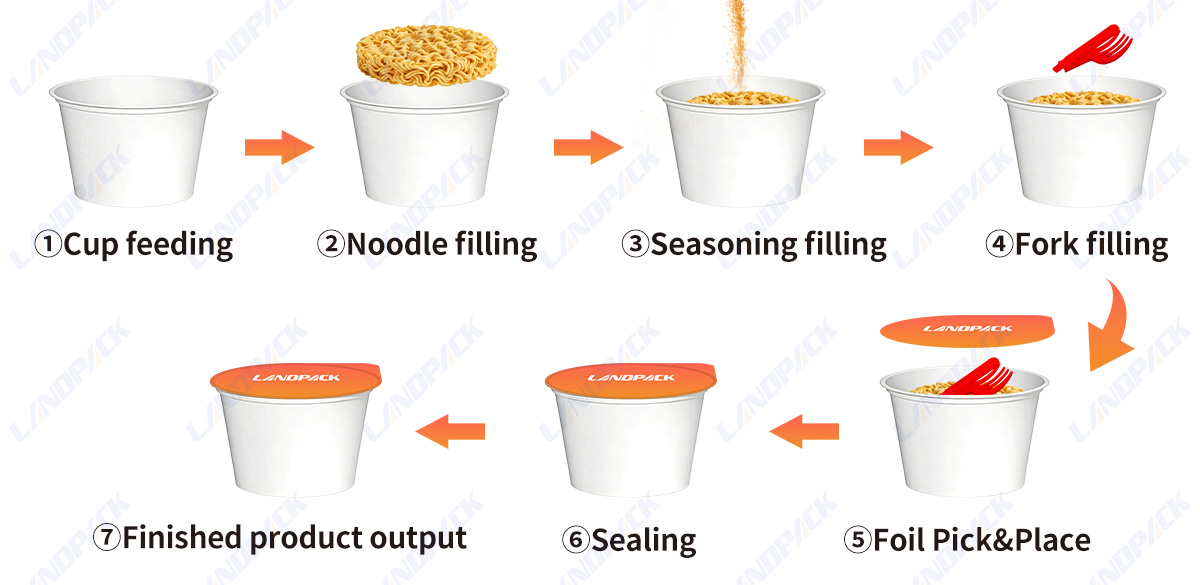

WORKFLOW

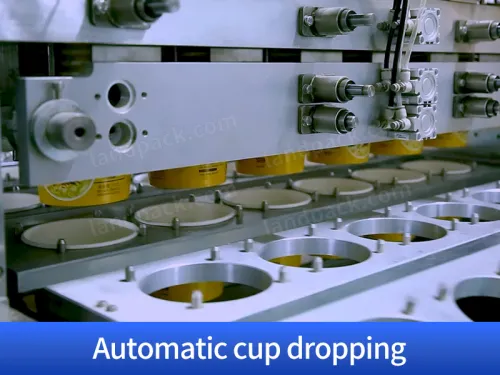

Cup Feeding

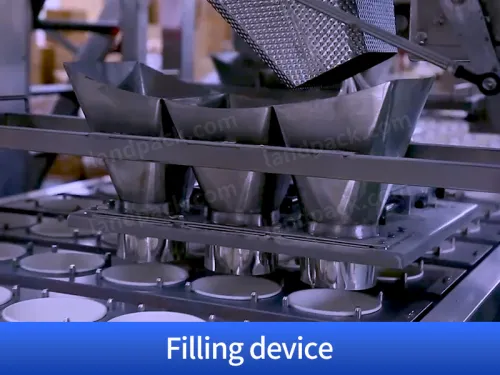

Noodle Filling

Seasoning Filling

Fork Filling

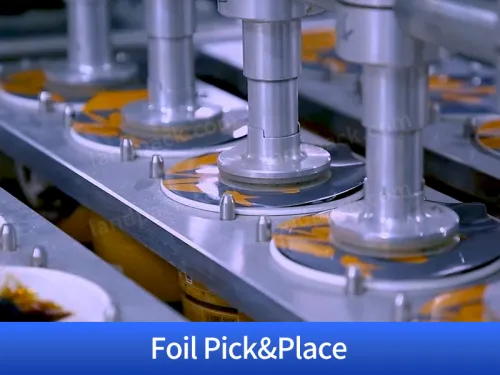

Foil Pick&Place

Sealing

Finished Product Output

PARAMETER

Item		Specification
	Machine Type	Linear Cup Sealing Machine
	Application	Instant noodles, rice meals, dry food cups
	Filling Type	Solid, powder, granule (multi-component)
	Weighing System	Multihead weigher compatible
	Production Capacity	30–80 cups/min (depending on configuration)
	Cup Type	Pre-formed plastic or paper cups
	Cup Size Range	Customizable based on sample
	Filling Stations	2–4 stations (expandable)
	Sealing Type	Aluminum foil heat sealing
	Sealing Method	Pneumatic or servo-driven
	Temperature Control	PID temperature control
	Control System	PLC + touch screen
	Material	SUS304 stainless steel (food contact parts)
	Power Supply	220V / 380V, 50/60Hz
	Air Consumption	0.6–0.8 MPa
	Machine Dimensions	Depends on configuration
	Optional Functions	Fork/spoon placement, lid placing, date coding
