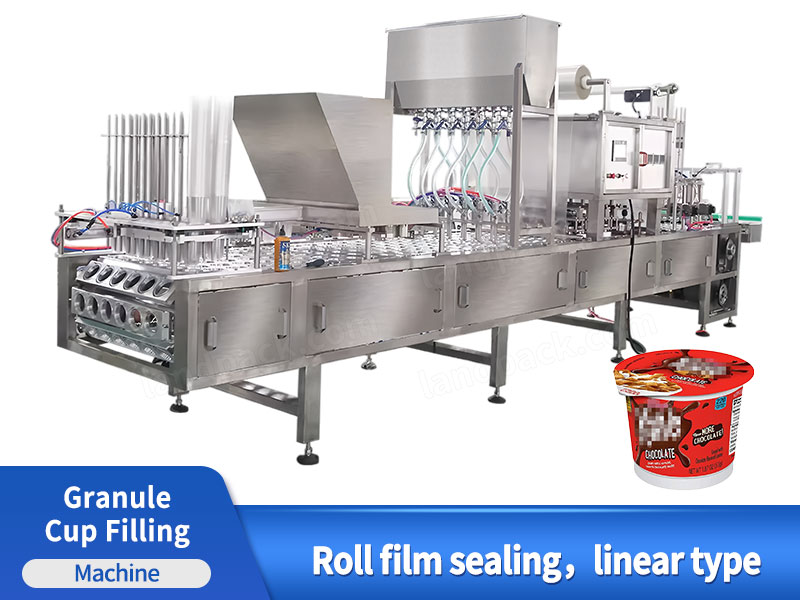

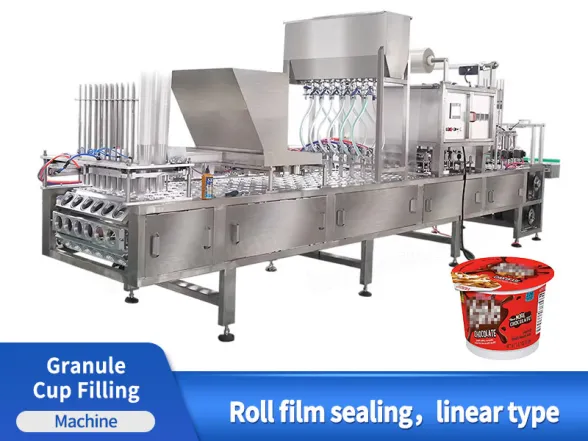

Fully Automatic Dry Fruits Popcorn Cereal Granule Cups Filling Machine

Introduction:

High-speed 4-lane granule cup filling and sealing machine designed for automatic cup feeding, multi-head filling, foil sealing, and continuous output.

Application:

Suitable for snacks, nuts, cereals, and other granular products with stable multi-lane operation and flexible cup compatibility, running up to 180 cups/min.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for filling and sealing granular or small solid products in pre-formed cups. Commonly used for food and non-food items such as snacks, cereals, nuts, seeds, dried fruits, candy, pet food, coffee granules, and similar materials. Compatible with plastic cups, paper cups, aluminum cups, and other rigid containers.

Fully Automatic Dry Fruits Popcorn Cereal Granule Cups Filling Machine

Package Type:

Suitable for premade plastic cups (PP, PET) sealed with roll film or pre-cut foil lids. Designed for granule products with single filling system, providing clean and well-presented packaging for retail use.

FEATURES

1. 4-lane parallel design for continuous multi-cup production.

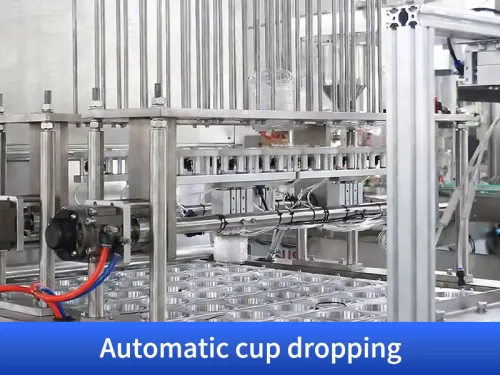

2. Automatic cup denesting and positioning system.

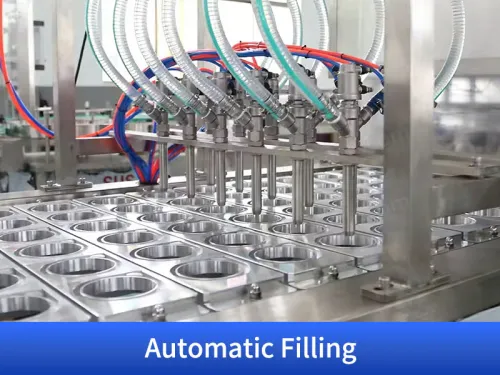

3. Multi-head filling system for granule products.

4. Independent lane control for stable operation.

5. Servo-driven filling for adjustable volume control.

6. Foil pick & place or roll film sealing options.

7. Heat sealing system with controlled temperature and pressure.

8. Stainless steel structure suitable for food contact.

9. PLC control with touch screen interface.

10. Easy changeover for different cup sizes.

11. Integrated conveyor for synchronized movement.

12. Optional nitrogen flushing to reduce oxidation.

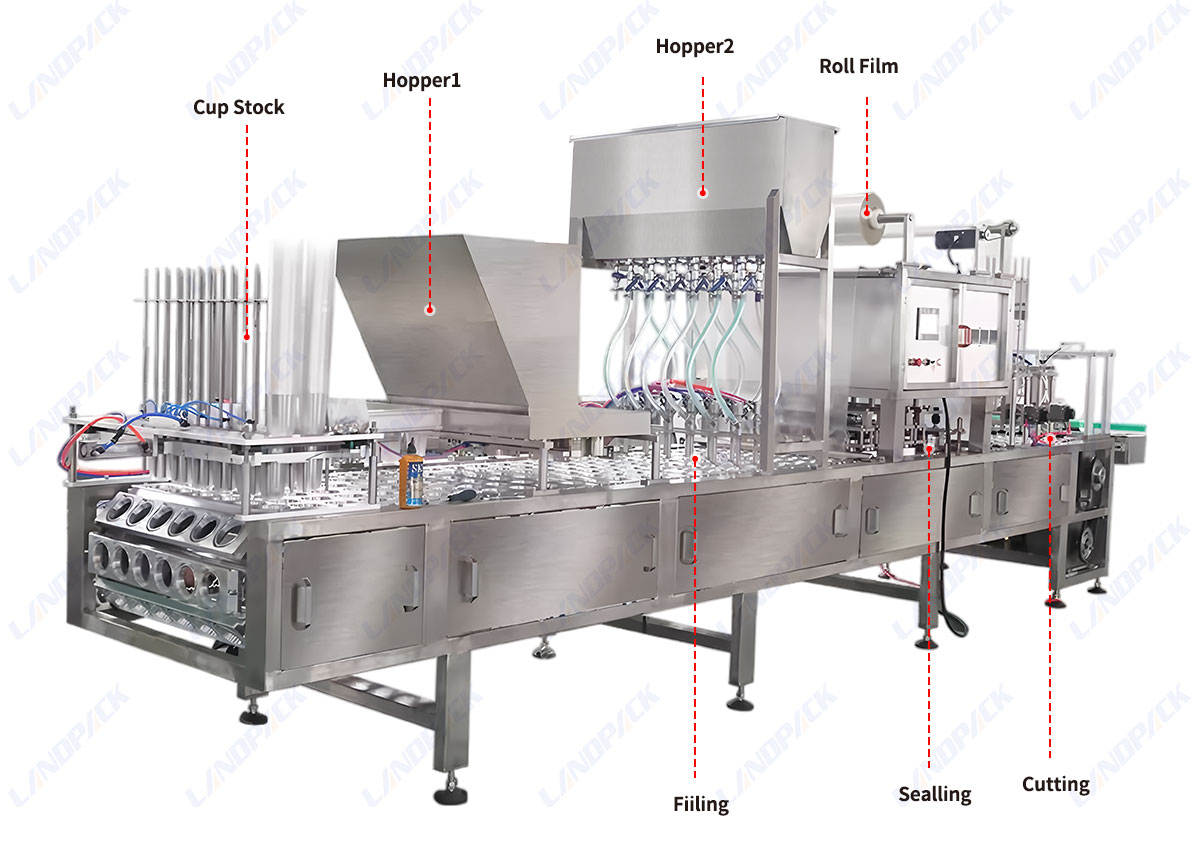

Machine Structure Overview:

1. Hopper2, 2. Roll Film, 3. Hopper1,4. Cup Stock, 5. Cutting Sealing Filling

Fully Automatic Dry Fruits Popcorn Cereal Granule Cups Filling Machine

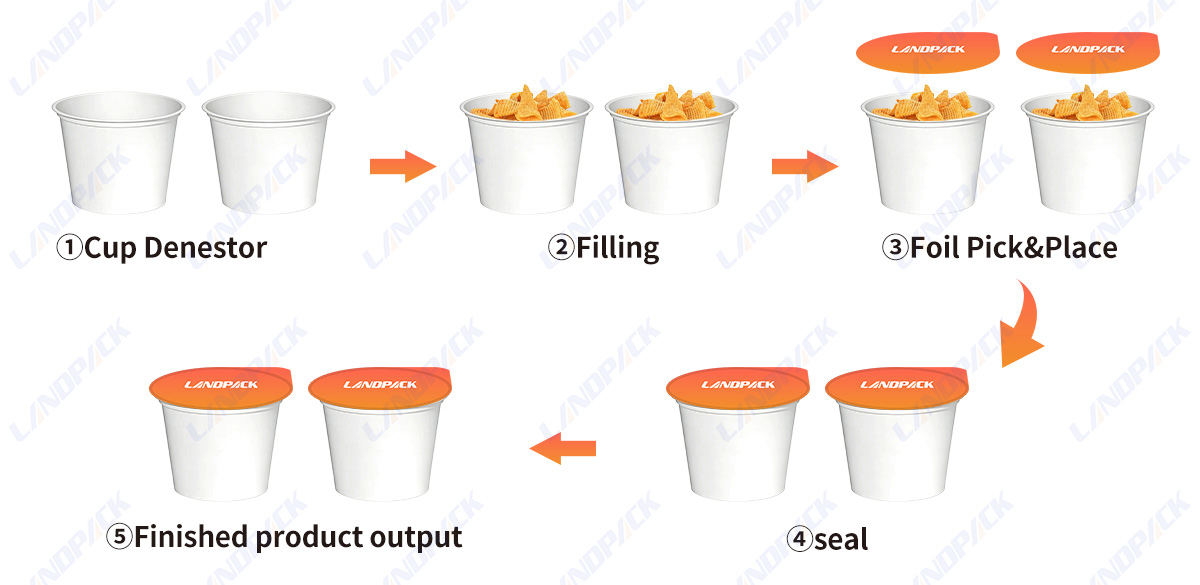

WORKFLOW

Cup Feeding

Granule filling

Roll film placement

Heat sealing

Cup discharge

Finished product output

PARAMETER

	Voltage	220V/380V
	Brand Name	LandPack
	Dimension(LWH) & Weight	3200X850X19000mm
	Certification	CE Certification
	Warranty of core components	1 Year
	Core Components	PLC, Servo motor, mold, hopper, gear and others
	Max Speed	1500,3000,4500,6000,7500,9000 cups/hour ( can be customized )
	Material	Stainless Steel 304
	Air pressure	0.5MPa-0.75 MPa
	Cup size	Customized
	MOQ	1 Set
