Automatic Rotary Cup Filling and Sealing Machine

Introduction:

The system integrates cup feeding, dual filling (solid + liquid), roll film placing, heat sealing and discharge.

Application:

This automatic rotary cup filling and sealing machine is engineered for packaging granule and liquid mixied products such as fruit cup, jelly, yogurt, wet pet food , and prepared meals in premade cups.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic rotary cup filling and sealing machine is engineered for packaging granule and liquid mixied products such as jam, pickle, fruit cup, jelly, yogurt, wet pet food , and prepared meals in premade cups. The system integrates cup feeding, dual filling (solid + liquid), roll film placing, heat sealing and discharge.

Automatic Rotary Cup Filling and Sealing Machine

Package Type:

Suitable for premade plastic cups sealed with roll film or pre-cut lids.

Supports mixing filling (granule + liquid), providing leak-proof, hygienic packaging for retail products.

FEATURES

1. Fully automatic filling and sealing for consistent and efficient production.

2. Double-head rotary design increases output and productivity.

3. High-precision filling ensures uniform product quantity.

4. Stainless steel structure for durability and easy cleaning.

5. Compact turntable design saves space and simplifies installation.

6. Equipped with quality components (PLC, temperature controller, pneumatic parts) for stable operation.

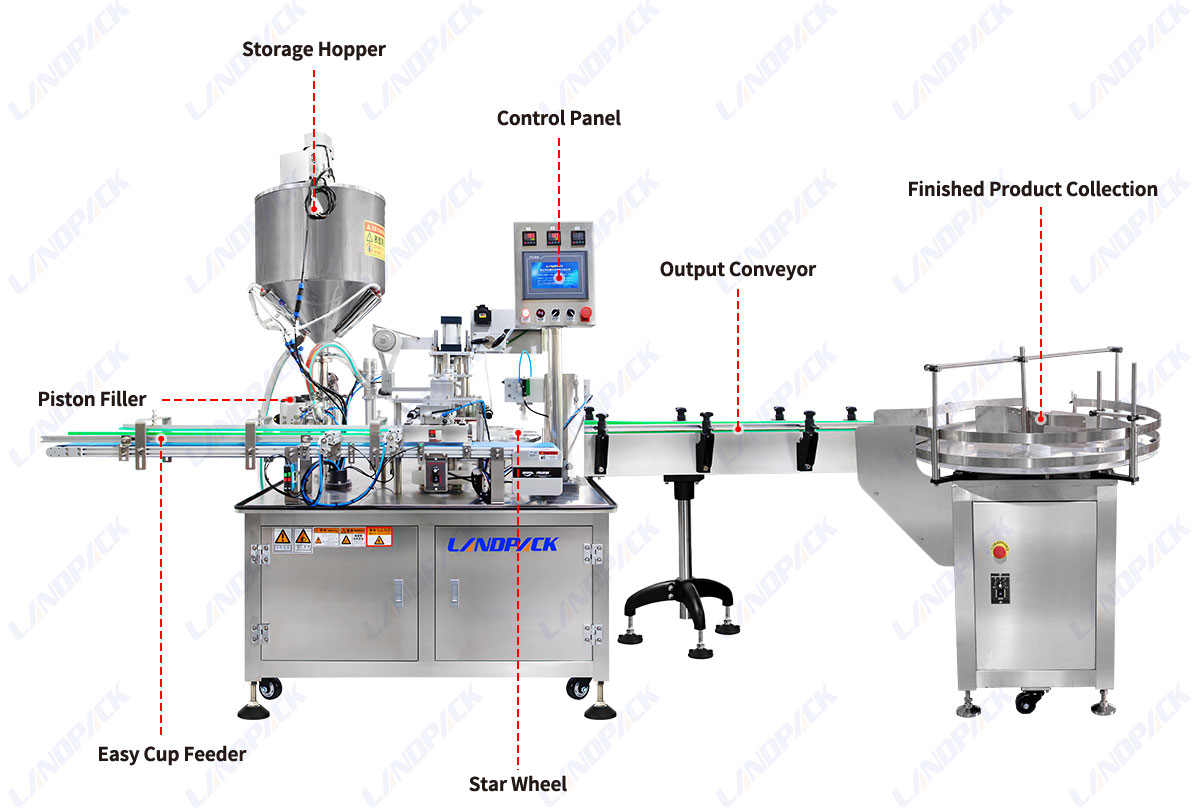

Machine Structure Overview:

1. Storage Hopper, 2. Control Panel, 3. Finished Product Collection, 4. Output Conveyor, 5. Piston Filler, 6. Easy Cup Feeder, 7. Star Wheel

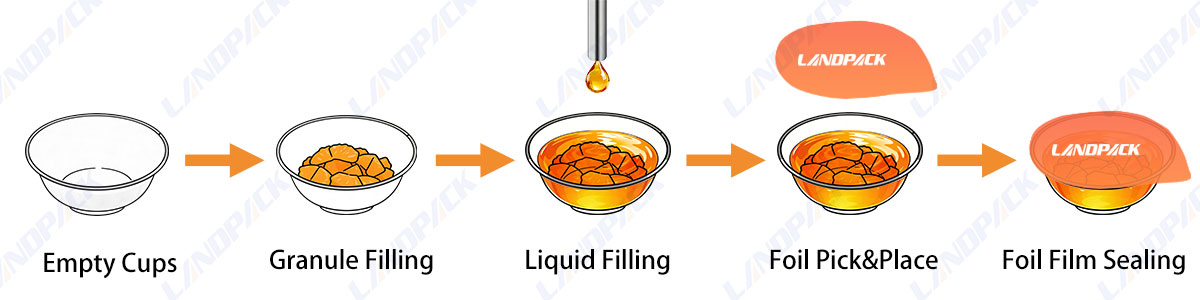

WORKFLOW

Cup Feeding

Granule filling

Liquid filling

Roll film placement

Heat sealing

Cup discharge

Finished product output

PARAMETER

	Model	LD-C03
	Capacity	180 cups/min
	Container	Cup/K cup/capsule
	Filling Weight	12 grams
	Accuracy	±0.2g
	Power consumption	8.6KW
	Air consumption	0.4m³/min
	Pressure	0.6Mpa
	Voltage	220V, 50/60HZ, 3 phase
	Machine Size	L170020002200mm
