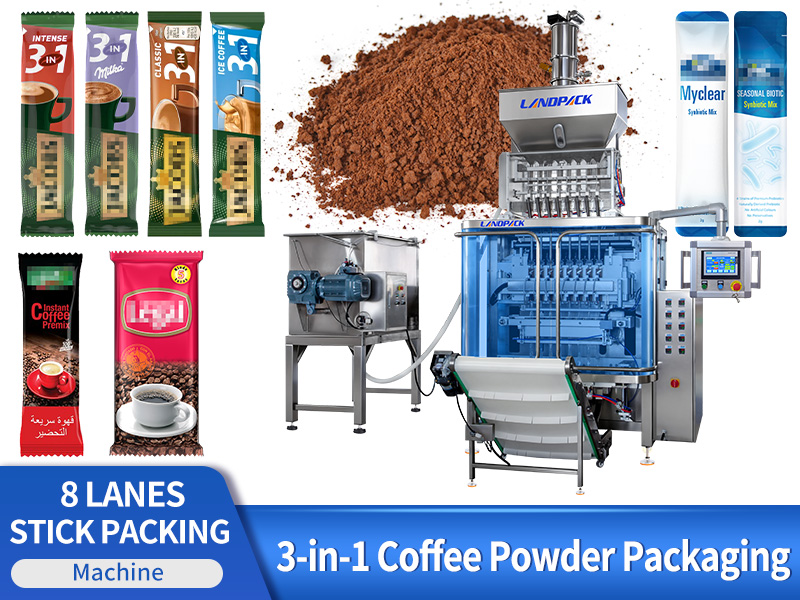

High Speed Coffee Powder Packing Machine 3 In 1 Multi Lane Stick Packing Machine

Introduction:

Automatic multi-lane coffee powder packing machine for stick packaging, featuring high-speed production, precise auger filling, and full automatic form-fill-seal process.

Application:

Ideal for instant coffee, beverage powder, and nutritional products with customizable lane numbers and packaging formats.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This multi-lane coffee powder packing machine is designed for high-speed stick packaging, suitable for industries requiring large-volume, single-serve packaging. It is widely used in: coffee powder, milk powder, instant drink powder, protein powder, supplement powder, oral powder, granules, detergent powder, etc.

High Speed Coffee Powder Packing Machine 3 In 1 Multi Lane Stick Packing Machine

Package Type:

Suitable for stick packs, using roll film such as laminated film, aluminum foil film, or composite materials. Bag size, shape, and lane number can be customized according to production requirements.

FEATURES

1. Multi-lane design for high-speed, large-scale production

2. Multiple lanes run simultaneously to increase output

3. Accurate auger filling for consistent dosing

4. Automatic film forming, filling, sealing, and cutting

5. Stable film pulling system for smooth operation

6. High-precision sensor ensures accurate bag length and cutting

7. PLC control with touchscreen for easy adjustment

8. Stainless steel structure suitable for powder environments

9. Supports different bag sizes and lane configurations

10. Easy integration with feeding, mixing, and downstream systems

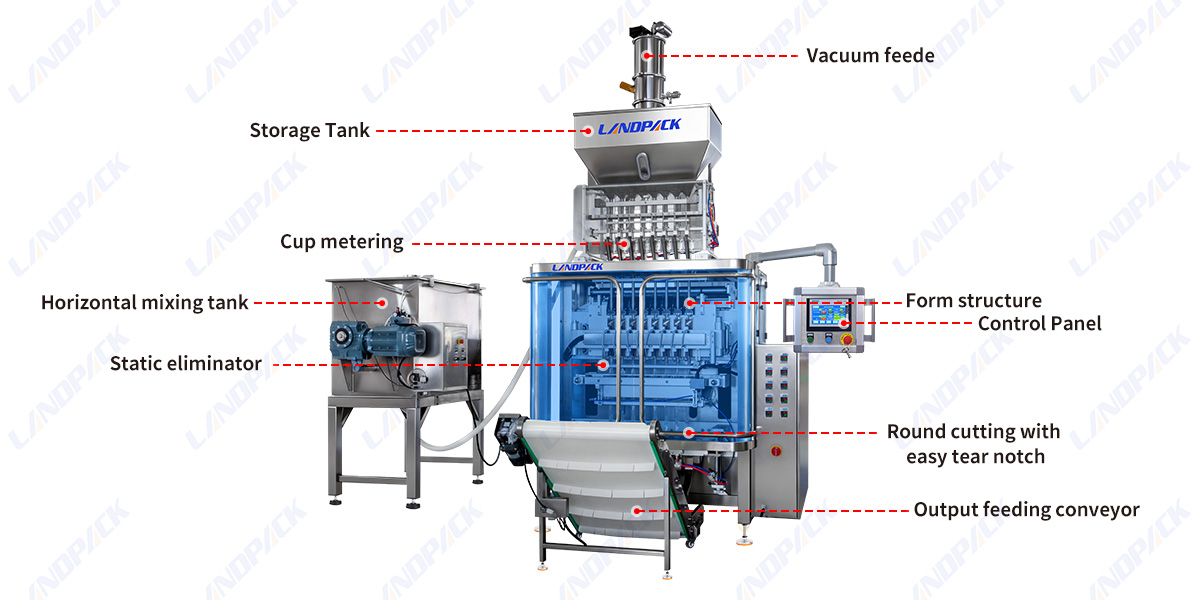

Machine Structure Overview:

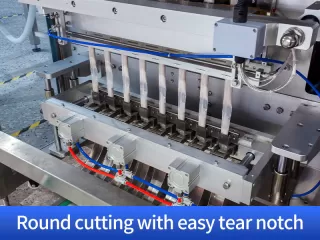

1. Horizontal mixing tank, 2. Vacuum feeder, 3. Storage tank, 4. Cup metering, 5. Control panel, 6. Form structure, 7. Round cutting with easy tear notch, 8. Output feeding conveyor

High Speed Coffee Powder Packing Machine 3 In 1 Multi Lane Stick Packing Machine

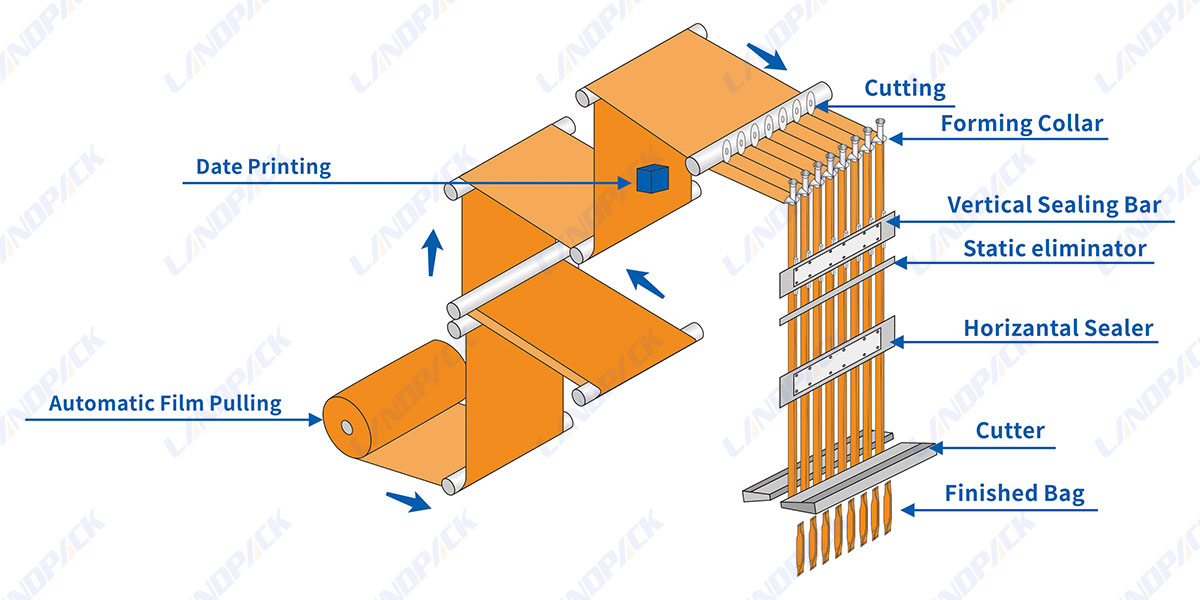

WORKFLOW

Film Feeding

Stick Forming

Coffee Powder Filling

Vertical Sealing

Horizontal Sealing

Cutting

Output

PARAMETER

Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycles/ min
Sachat Size	L: 50-180mm; W: 17-30mm	L: 50-180mm; W: 17-30mm
Film Width & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw

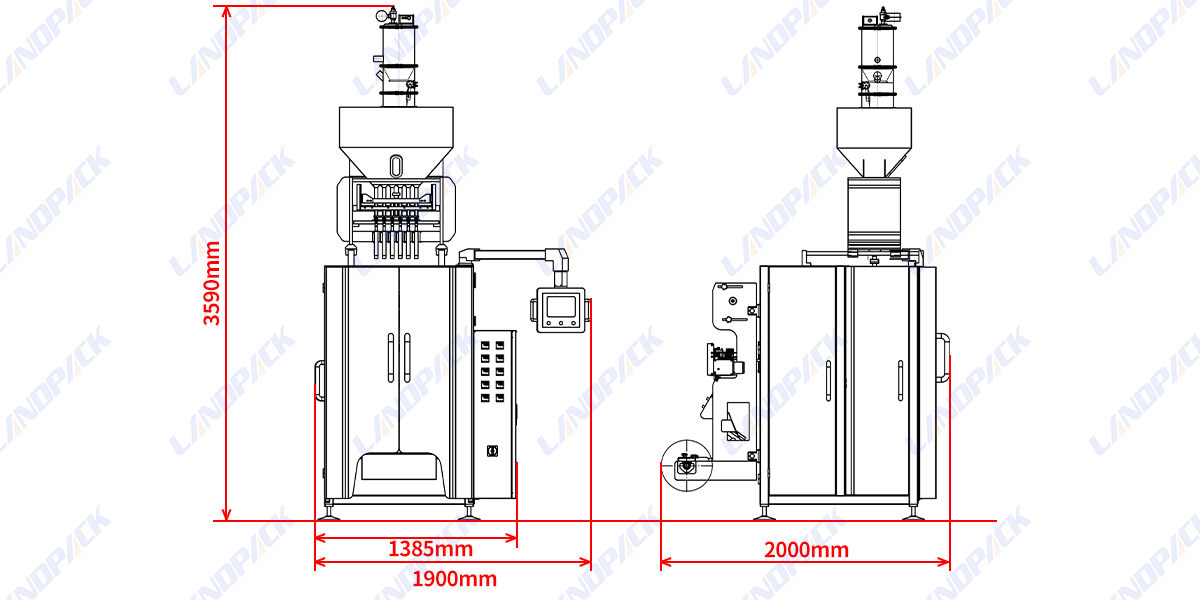

Dimension & weight	13859182005mm;350kg	168513002005mm;550kg
