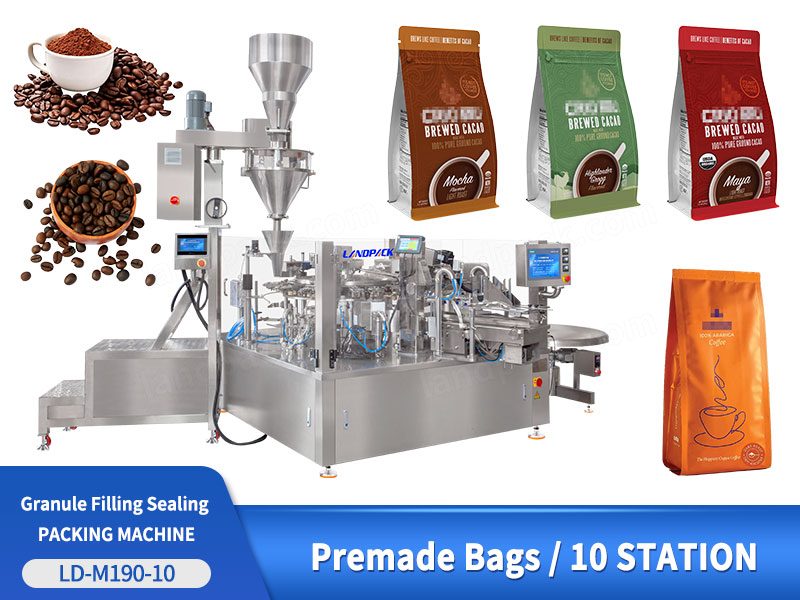

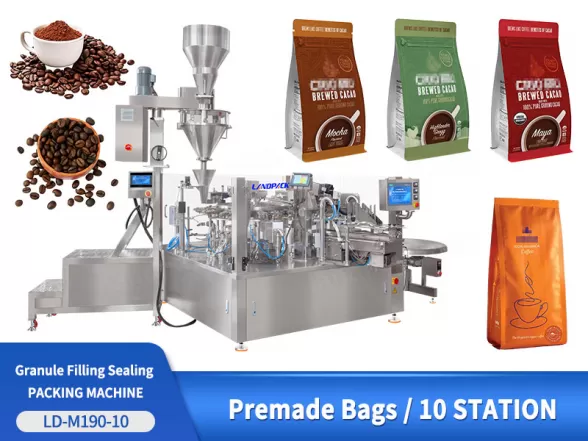

Coffee Packaging Machine Premade Pouch Doypack Packing Machine

Introduction:

Rotary coffee powder packing machine for premade pouches, suitable for doypack and zipper bags. Equipped with auger filling system for accurate powder dosing, with automatic pouch feeding, opening, filling, dust cleaning and sealing process.

Application:

Suitable for coffee powder, milk powder, protein powder, flour, spice powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This rotary premade pouch packing machine is designed for automatic packaging of fine powder products such as coffee powder and similar materials. It is suitable for applications that require controlled filling and clean sealing in preformed pouch packaging. Typical applications include ground coffee and instant coffee powder, cocoa powder and beverage powders, protein powder and nutrition supplements, milk powder and creamer powder, flour, starch and seasoning powders.

Coffee Packaging Machine Premade Pouch Doypack Packing Machine

Package Type:

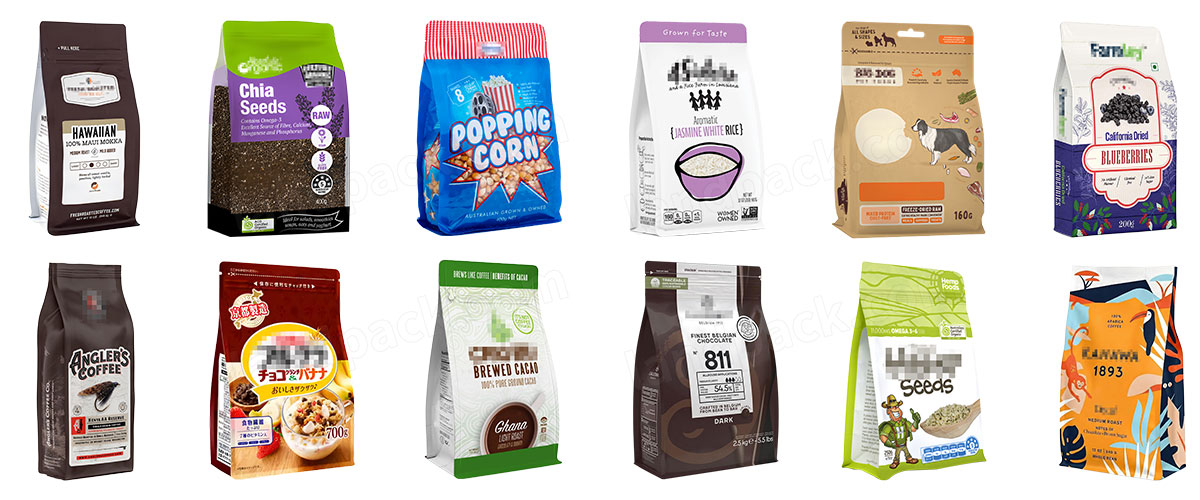

Suitable for stand-up pouch, zipper pouch, flat bottom pouch, 3-side seal pouch and laminated or foil pouches.

FEATURES

1. Screw auger filling system for fine powder dosing.

2. Stable rotary structure for continuous pouch handling.

3. Dust control design during filling and sealing.

4. Pouch mouth cleaning before sealing to reduce powder residue.

5. Coding device for production date or batch number.

6. Adjustable filling range for different package sizes.

7. Servo-controlled pouch opening and positioning.

8. Double sealing for better sealing integrity.

9. Touch screen control with parameter storage.

10. Easy cleaning design for powder applications.

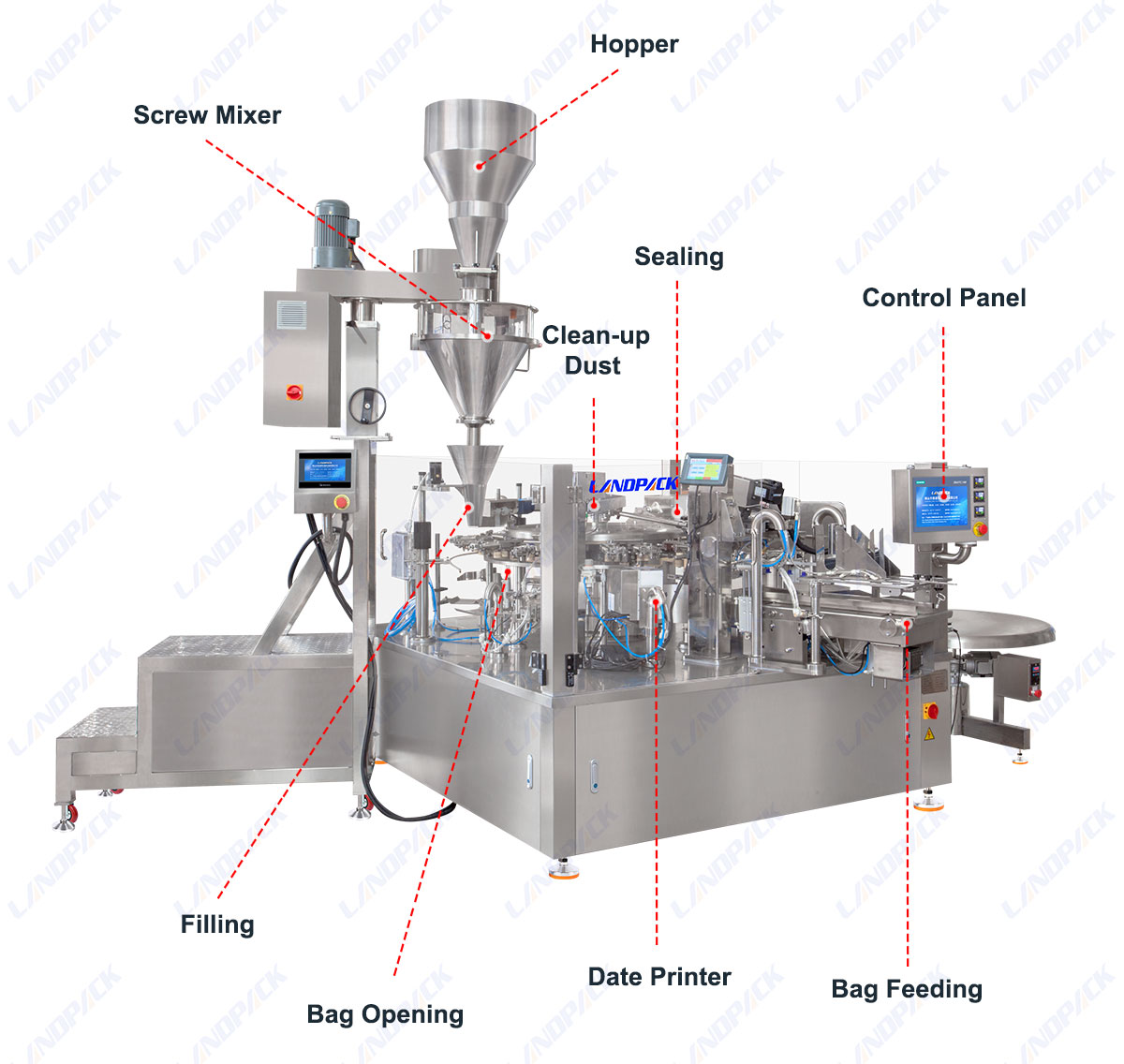

Machine Structure Overview:

1. Screw Mixer 2. Hopper 3. Clean-up Dust 4. Sealing 5. Control Panel 6. Filling 7. Bag Opening 8. Date Printer 9. Control Panel 10. Bag Feeding

Coffee Packaging Machine Premade Pouch Doypack Packing Machine

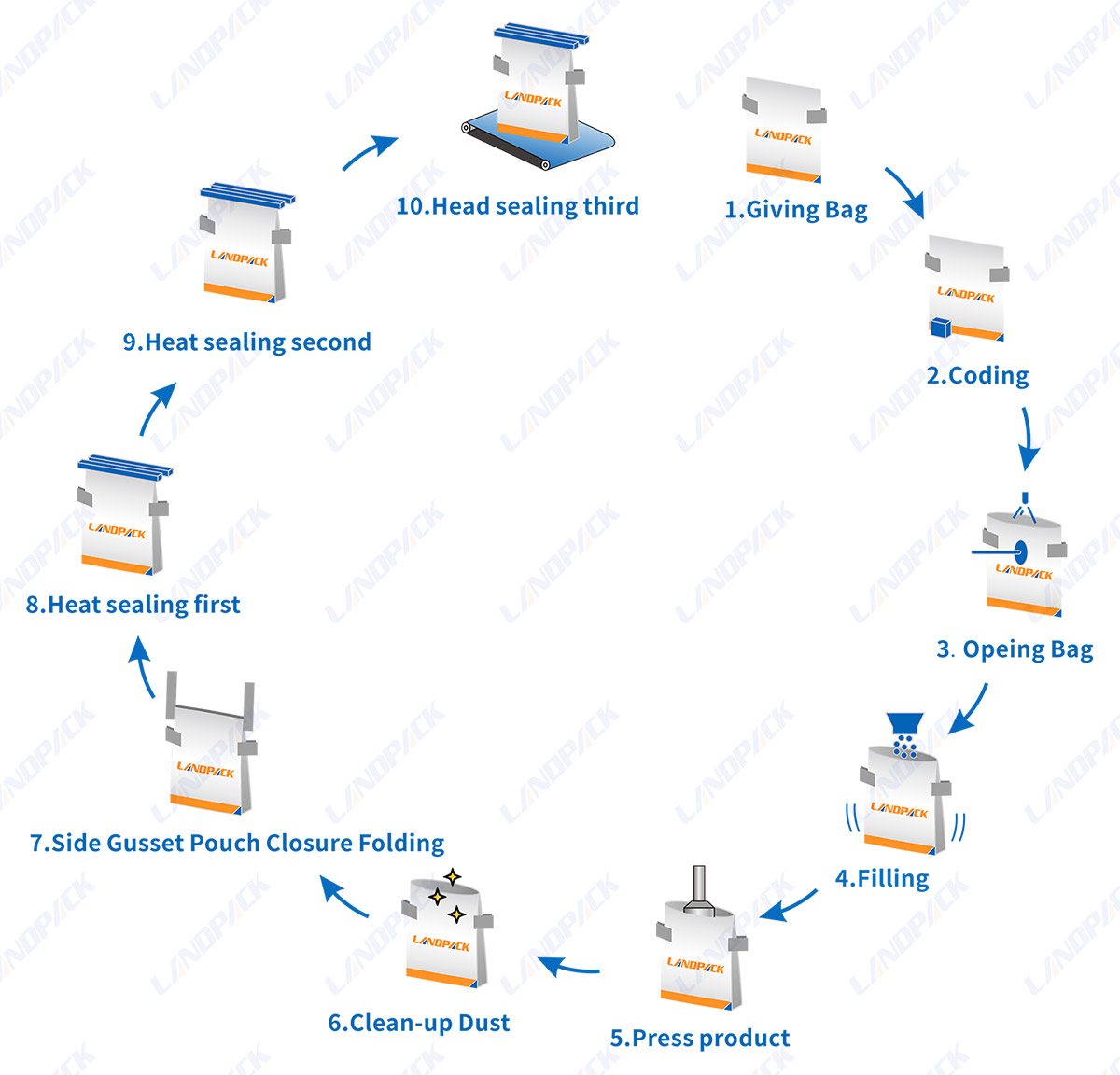

WORKFLOW

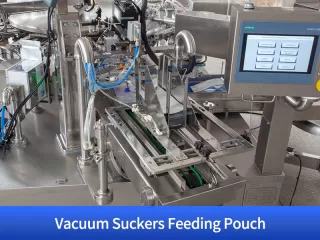

Bag feeding

Bag opening

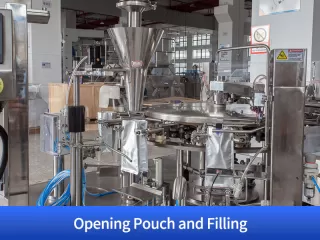

Filling (screw dosing)

Coding

Heat sealing (3 times)

Labeling

Finished pouch output

PARAMETER

	Model	LD-8200/LD-8250/LD-8380
	Size	W: 100-300/100-450
	Filling range	10-1000g/20-2800g
	Packing speed	40-60 bags/min (the product filling quantity determines speed)
	Average precision	≤ ±1%
	Total power	≥0.8m³/min supply by user
