Automatic Coffee Mate Bottle Filling Machine Line

Introduction:

It's dual auger screw system ensures precise dosing, while the integrated vacuum feeder and dust removal features maintain a clean workspace.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This bottle filling line is ideal for automating the filling, capping, and sealing of various powdered products, including coffee creamer, milk powder, protein powder, and nutritional supplements. It's dual auger screw system ensures precise dosing, while the integrated vacuum feeder and dust removal features maintain a clean workspace.

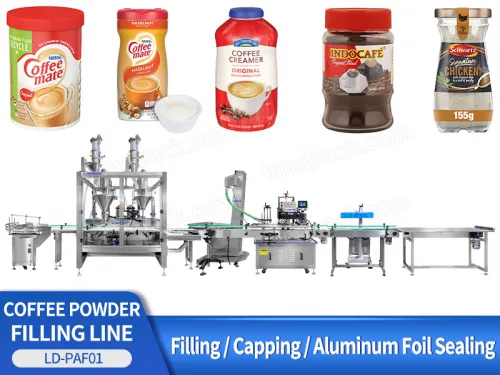

Automatic Coffee Mate Bottle Filling Machine Line

FEATURES

1. The dual auger filling system with integrated weight check ensures high-precision dosing for powders like coffee creamer, milk powder, and protein powder, achieving ±1% accuracy.

2. A compact vacuum feeder (under 3m height) enables efficient material transfer with minimal manual handling, optimizing space and workflow.

3. Equipped with a vacuum dust removal system to maintain a clean workspace by minimizing powder contamination during filling.

4. User-friendly HMI touch screen supports multiple languages, simplifying operation for new businesses and reducing training time.

5. The integrated line includes bottle feeding, capping, aluminum foil sealing, and collection, streamlining the entire packaging process.

6. High-speed filling at 20–35 bottles per minute with consistent ±1% accuracy, suitable for demanding production schedules.

7. Versatile for food, pharmaceutical, and cosmetic industries, handling diverse powdered products from fine coffee to coarse additives.

Automatic Coffee Mate Bottle Filling Machine Line

WORKFLOW

1. Turntable bottle feeder

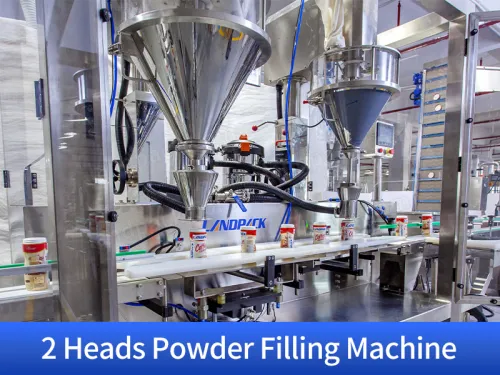

2. Dual auger screw filling machine with weight check system

3. Cap lifting device

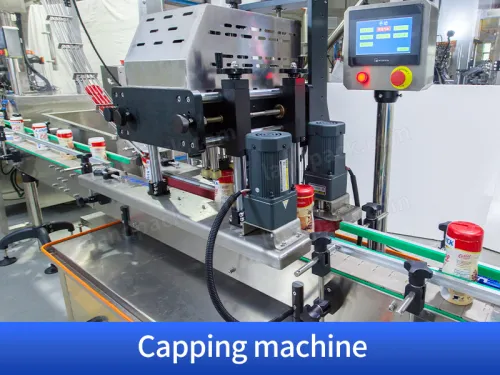

4. Capping machine

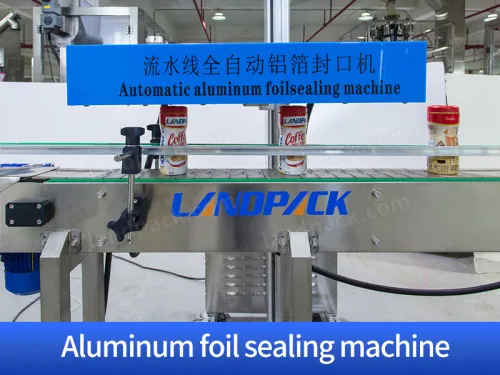

5. Aluminum foil sealing machine

6. Collection table

PARAMETER

Automatic Powder Weighing Filling Machine
Model	LFP-01 (Single Head Powder Filling)	LFP-01 (Single Head Powder Filling)	LFPD-50-30 (Double Head Powder Filling)
Filling Weight	10-5000g	10-5000g	100-2000g
Bottle Diameter	Ф30-Ф140mm	Ф30-Ф140mm	Ф60-Ф135mm
Bottle Height	50mm-200mm	50mm-200mm	60-260mm
Filling Speed	10-20 bottles/min	20-40 bottles/min	10-25 bottles/min
Measurement accuracy	<500g,<±1%,>500g,<±0.5%		100-1000g,≤±2g;>1000g,<±5g
Power	2.5 KW	5 KW	4.5 KW

High Speed Capping Machine
Model	LFX-GS-150 (Eight wheel capping)	LFX-GS-250 (Six wheel capping)
Capacity	40-100 bottles/min	30-80 bottles/min
Bottle cap diameter	Ф18mm-Ф80mm (Could be customized)
Bottle diameter	Ф35mm-Ф140mm (Could be customized)
Bottle sealing height	38mm-300mm (Could be customized)
Power	2KW	1.5KW
Voltage	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122 mm	H3100W1244L2122 mm

Automatic Aluminum Foil Sealing Machine
Model	LD-ZS (Double Heads Aluminum Foil Sealing)	LF-LB-2000 (Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Ф10-200mm(Could be customized)
Applicable bottle height	H: 40-300mm (Could be customized)
Speed	0-30 bottles/min	0-10 bottles/min
Bottle material	Glass, ceramics, plastics, metals
Voltage	220V, 50HZ, 1500W	220V, 50HZ, 1200W
Dimension	15008001750mm	12006001550mm
