Automatic Coffee Filling Machine Freeze-dried Coffee Filling Cap Pressing Labeling Machine Line

Introduction:

Granule filling machine for freeze-dried coffee bottles, with cap pressing, foil sealing, labeling, coding and shrink wrapping, up to 30 bottles/min.

Application:

This automatic bottle filling and packaging line is suitable for freeze-dried coffee, instant coffee granules, coffee beans and other granular beverage products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

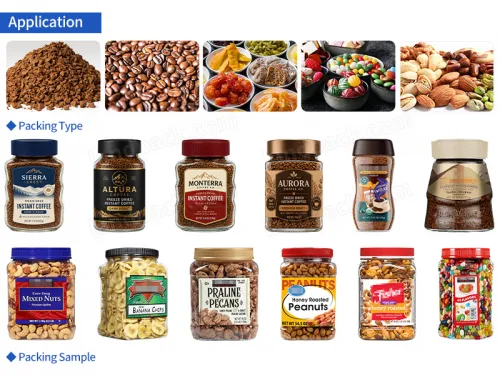

Application

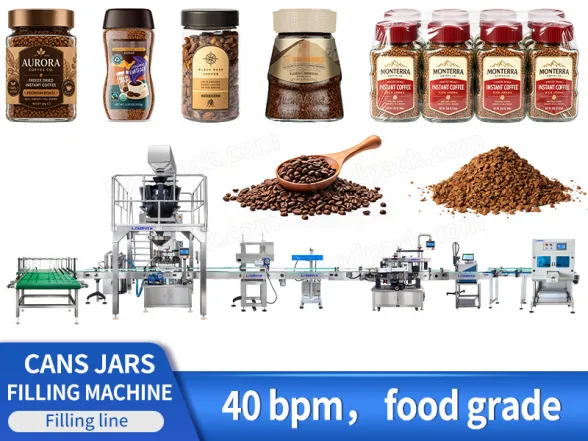

This granule filling machine packs freeze-dried coffee granules, instant coffee crystals, coffee beans, and similar free-flowing coffee products into bottles or jars. The bottle filling line weighs each portion, fills the container, presses the cap, seals the foil liner, applies front and back labels, prints batch details, and adds shrink film. This coffee packaging machine reaches up to 30 bottles/min, depending on bottle size and filling weight.

Automatic Coffee Filling Machine Freeze-dried Coffee Filling Cap Pressing Labeling Machine Line

Package Type:

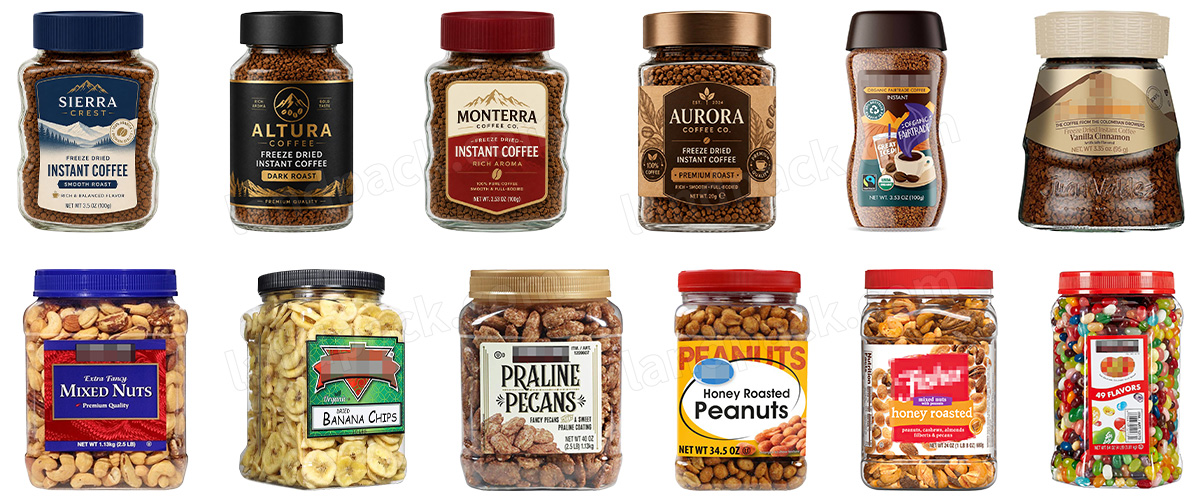

The filling line works with PET, HDPE, and rigid plastic bottles or jars in round, square, or flat shapes. It supports press-on caps, aluminum foil liners, double-side labels, and shrink-film sleeves. Change parts match different bottle heights, neck sizes, cap formats, and label positions.

FEATURES

1. Teflon-coated weigher and hopper reduce coffee granule sticking.

2. Multi-head weigher controls the filling weight for each bottle.

3. Rotary filling section keeps bottle movement continuous.

4. Cap pressing unit places lids firmly after filling.

5. Foil sealing limits moisture contact with freeze-dried coffee.

6. Double-side labeler applies front and back bottle labels.

7. Inkjet coder prints production and batch information.

8. Sleeve shrink unit adds an outer film wrap.

9. Collection table holds finished bottles for packing.

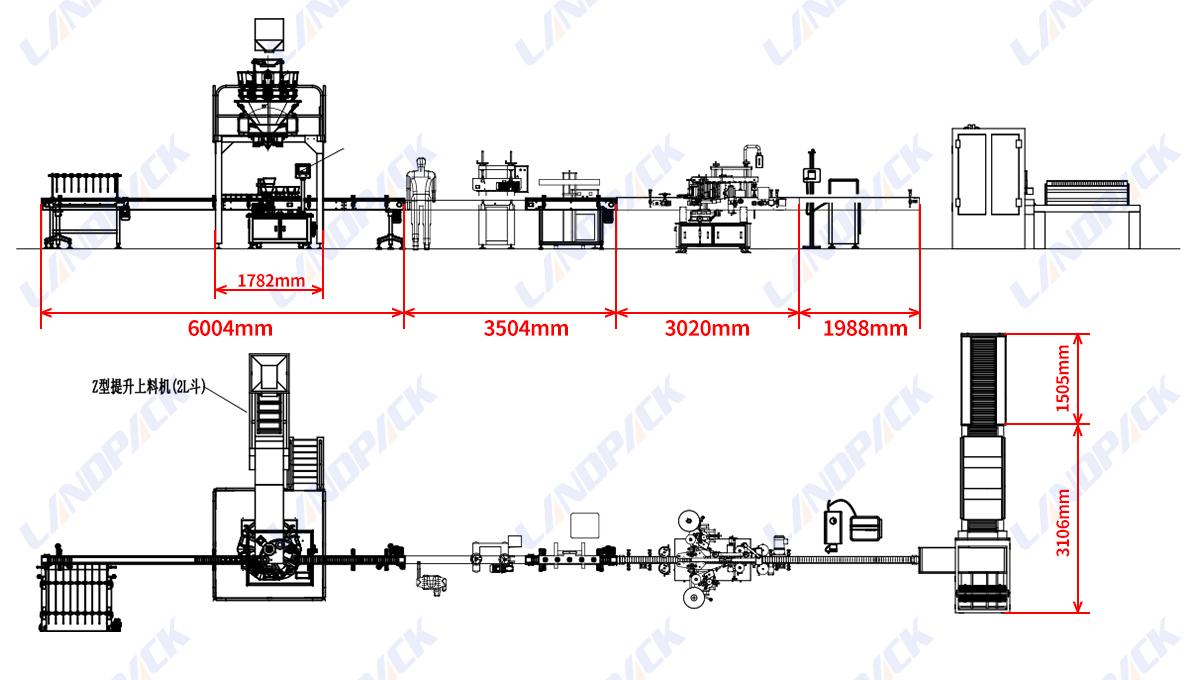

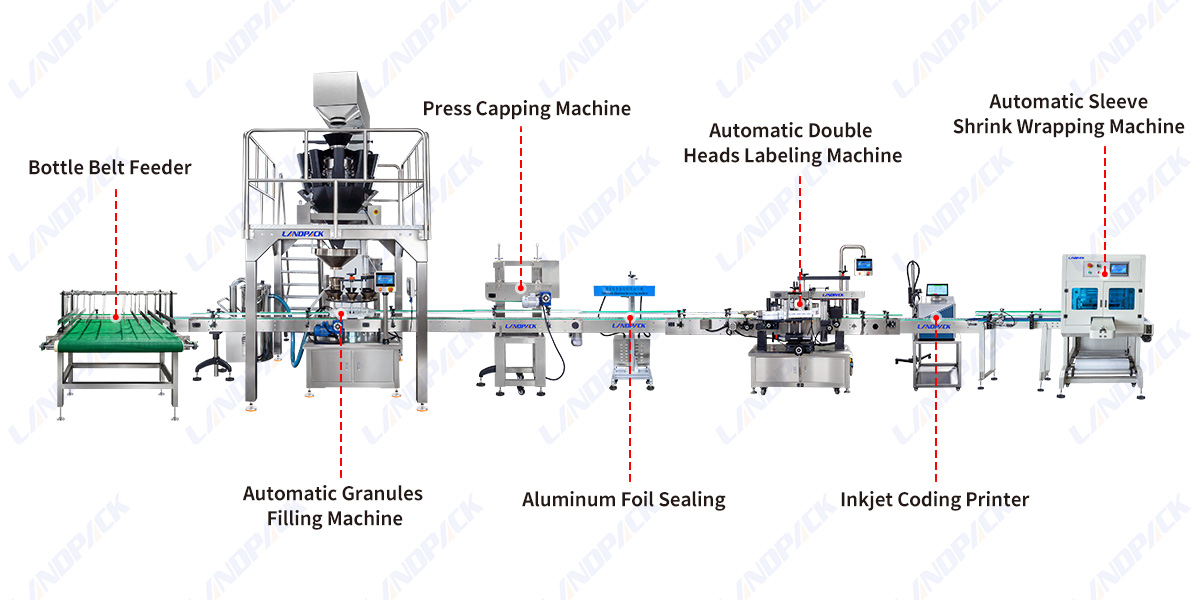

Machine Structure Overview:

Automatic Coffee Filling Machine Freeze-dried Coffee Filling Cap Pressing Labeling Machine Line

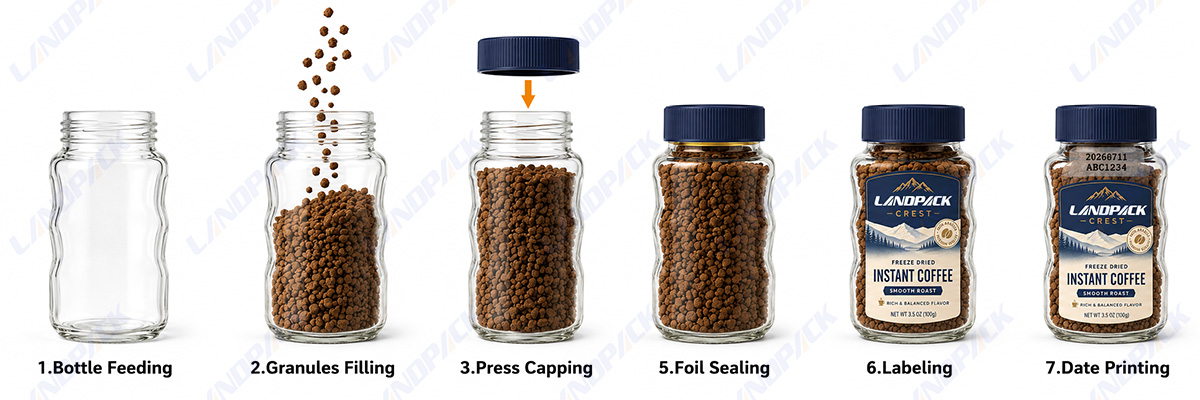

WORKFLOW

Bottle Feeding

Multi-Head Weighing

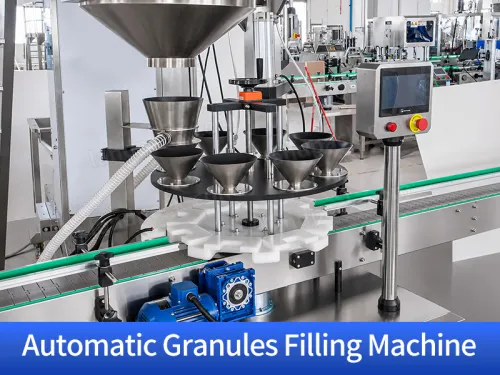

Rotary Granule Filling

Cap Pressing

Aluminum Foil Sealing

Double-Side Labeling

Date Printing

Sleeve Wrapping and Shrinking

PARAMETER

Automatic Bottle Feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	40-130mm
Suitable Bottle Height	30-200mm
Working Speed	40-60 bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg
Model	LFZP-008A
Speed	15-30pcs/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Control system	PLC
Power supply	220V, 50Hz
Dimension	2000mm900mm1400mm(LWH)
Equipment Material	304
Weight	200KG
Description of main packaging process	Bottle feeding-weighing-unloading-bottle out
Main applicable functions	Suitable for weighing and filling all kinds of fragile and breakable materials, such as laundry capsule, laundry gel, laundry pod, laundry tablets etc.
	Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.
Main electrical configuration and brand	PLC-Panasonic (Japan); Inverter-Panasonic (Japan); Touch screen-Weinen (China Taiwan);
Model	LD-XG21
Voltage	220V/110V 50-60Hz
Motor Power	180W,370W
Motor Speed	1400 rpm
Speed	About 1000-3000 bottles/h(Depending on the containers and the caps)
Applicable Bottle Height	100-380mm
Bottle Cap Diameter	50-100mm
Conveyor Motor Power	370W
Machine Size	About 6306501500mm
Package Size	About 8606502100mm
Package Weight	About 150kg

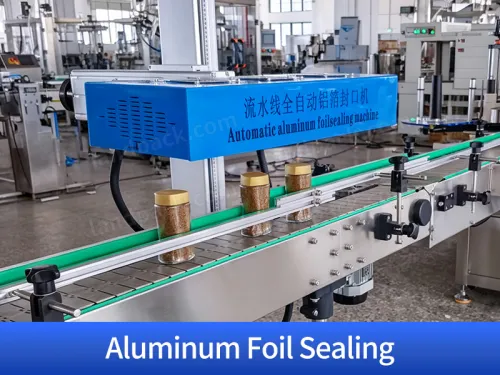

Automatic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
Coding machine
Printing speed	1024 seconds(5×7)
Power	220V/50HZ,150VA
Printing direction	Positive sequence/reverse order/reverse/reverse
Printing distance	The nozzle and the object to be sprayed are kept within 3cm
Store information	The system can store 1000 print information
Ink consumption	70 million words per print(5X7)
Machine weight	18kg

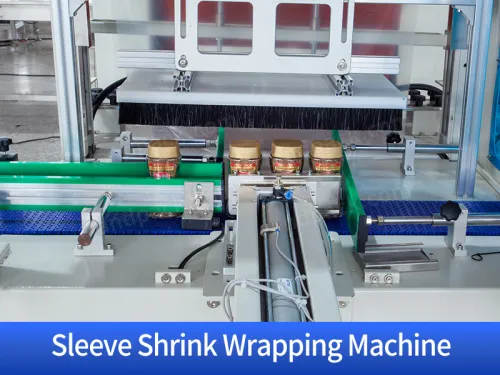

Shrink wrapping machine
Voltage	Sleeve machine220V can be customized, shrink machine must 380V
Power	1.3KW/18KW
Sleeve machine packing size	Max 420330330mm min 2506060mm
Packing speed	0-6 pieces per minute
Tunnel size	1500600400mm
Tunnel out dimension	25008501520
Sleeve out dimension	1500600402mm
