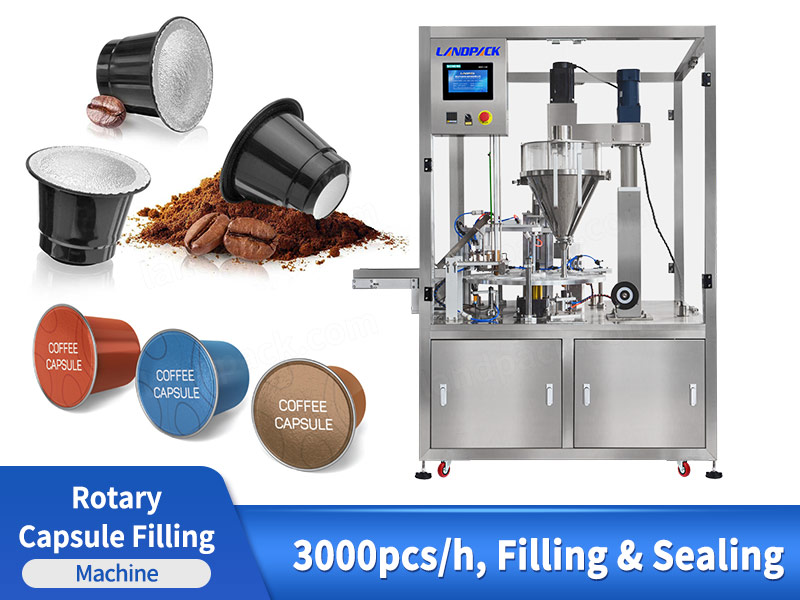

Automatic Coffee Capsules Filling and Sealing Machine

Introduction:

It combines automatic capsule loading, accurate coffee dosing, reliable lid or film sealing, and smooth capsule discharge into one efficient system.

Application:

Coffee capsule packaging fits ground, instant, flavored, decaf, and specialty coffee.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

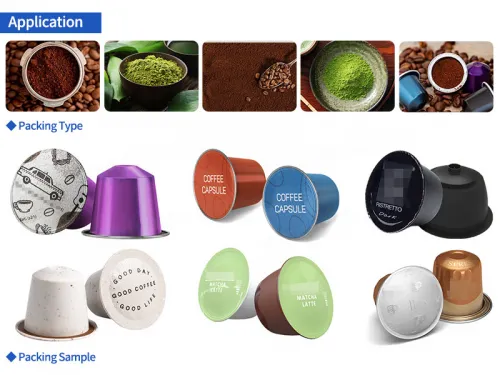

Application

It is a versatile solution suitable for filling a wide range of products, including:
*Ground Coffee – Espresso, single-origin coffee, blends, flavored coffee
*Tea Powder & Leaf Tea – Instant tea powder, matcha, herbal tea, loose leaf tea (with filter capsules)
*Hot Chocolate & Cocoa Powder – Single-serve hot chocolate pods
*Milk Powder & Creamer – Dairy or non-dairy creamers for coffee/tea
*Protein & Nutritional Powder – Whey protein, collagen powder, meal replacement blends
*Functional Drinks & Supplements – Energy drink powder, dietary supplements, health powders
*Spices & Seasonings – Ground spices, seasoning blends for single-serve use
*Powdered Medicine or Nutraceuticals – Nutritional supplements in single-serve pods (where food-grade standards apply)

Automatic Coffee Capsules Filling and Sealing Machine

What is a Coffee Capsules Filling and Sealing Machine?

A Coffee Capsule Filling and Sealing Machine is an automated solution that fills ground coffee into empty capsules, seals them with precision, and delivers ready-to-brew capsules for retail and private label brands.

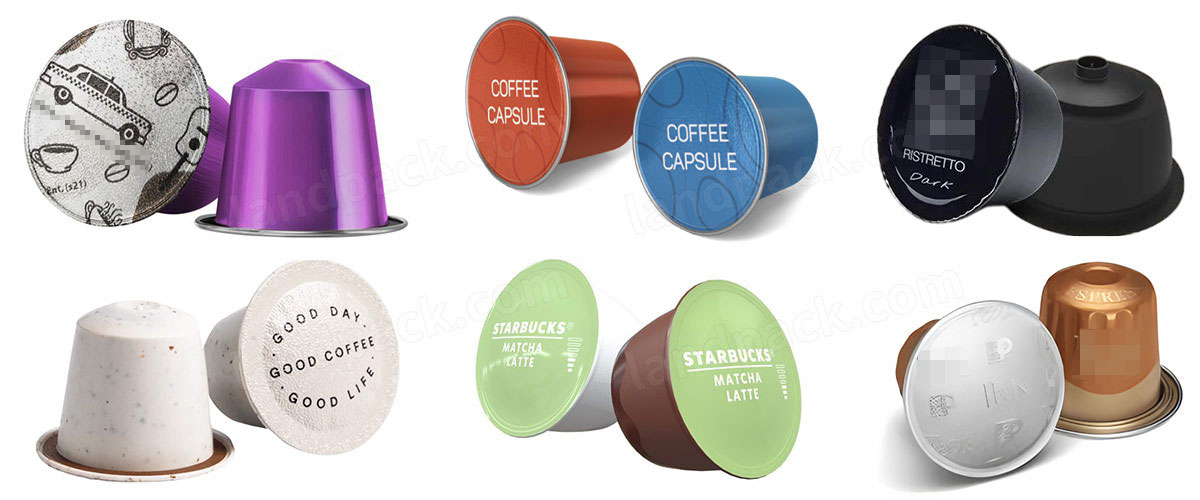

Package Type:

FEATURES

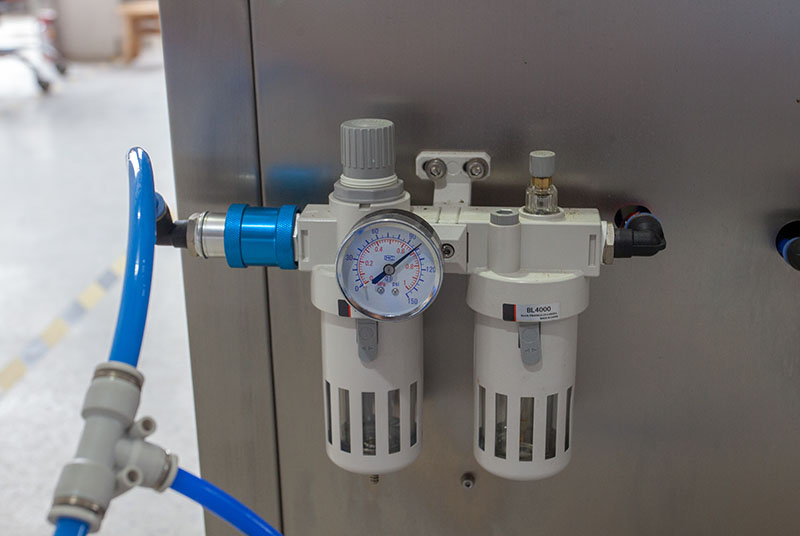

Air Supply System The machine is equipped with a high-quality Air Source Treatment Unit, also known as an FRL (Filter, Regulator, and Lubricator) assembly.
	Heating & Electrical Control Cabinet The machine is equipped with a fully enclosed electrical control cabinet designed for safety, stability, and ease of maintenance.

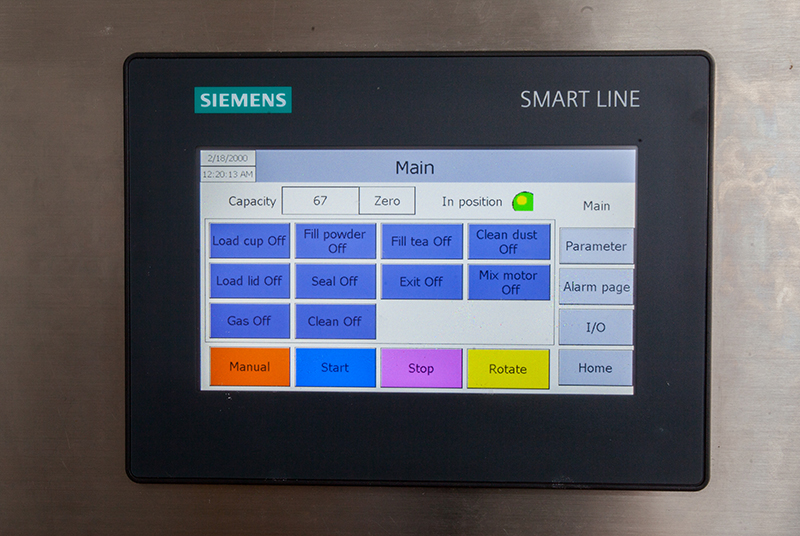

PLC + Touchscreen Control Panel The control system for managing speed, fill weight, temperature, sealing time, alarms, and other parameters. Allows operators to monitor and adjust.

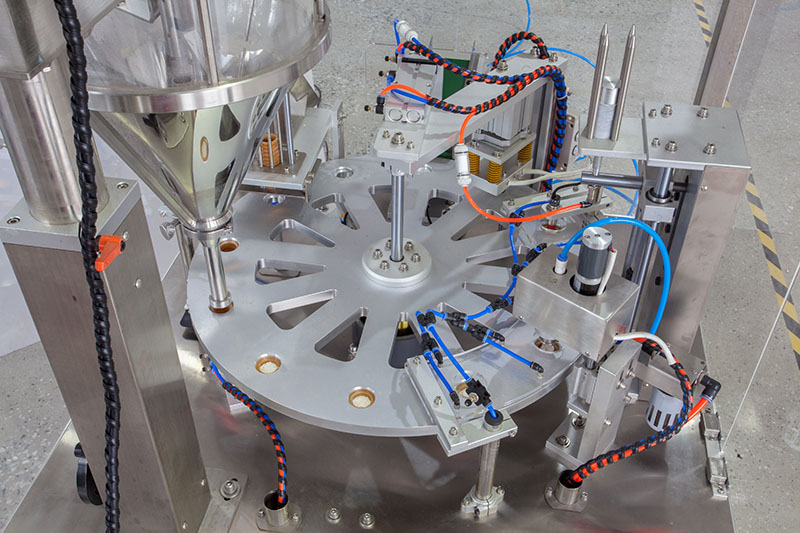

	Turntable System Many machines use a rotary table to cycle capsules through each of the modules (cup drop → filling → film/lid placement → sealing → output). This helps with compactness, smooth transitions, and higher speed.

Machine Structure Overview:

* Hopper;
* Filling Device;
* Cup Drop Device;
* Film Placing Device;
* Heat Sealing Device;

Automatic Coffee Capsules Filling and Sealing Machine

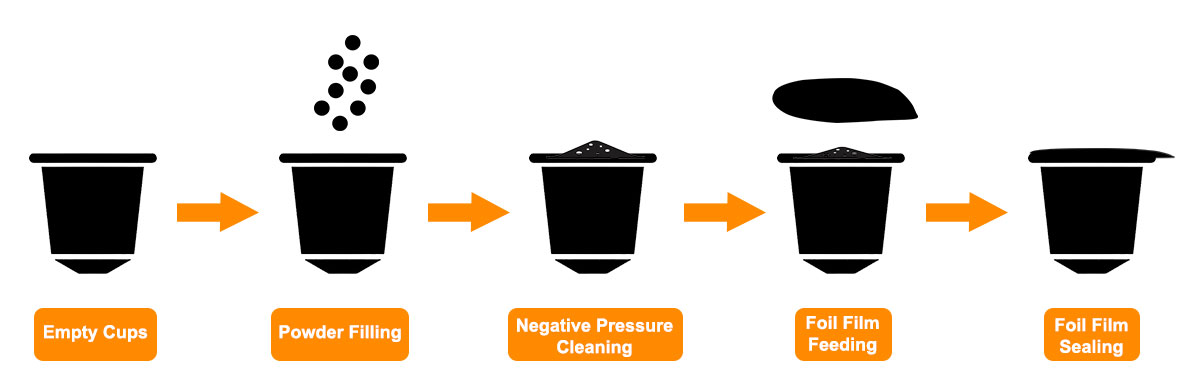

WORKFLOW

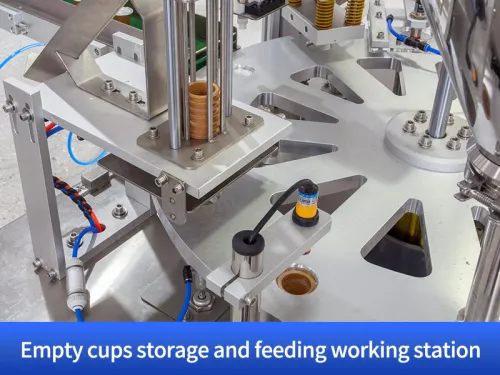

1. Automatic Capsule Feeding

2. Coffee Dosing

3. Tamping

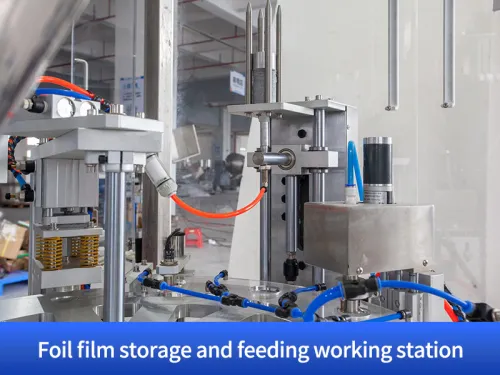

4. Film Feeding

5. Heat Sealing

6. Finished Product Output

PARAMETER

	Specification
	Production Capacity	800-1500cups/hour
	Measurement	Screw head filling (1 or 2 heads)
	Filling Range	5-10g ( Can be customized )
	Size (L)	1500(W)1200(H) 1700mm
	Voltage	220V,50/60HZ,2.2kw
	Weight	500kg
	Air Supply	1m/points, 0.6-0.75Mpa
	Structure	304 stainless steel body
