Liquid Bottle Case Packing System and Perfume Oil Cartoning Machine

Introduction:

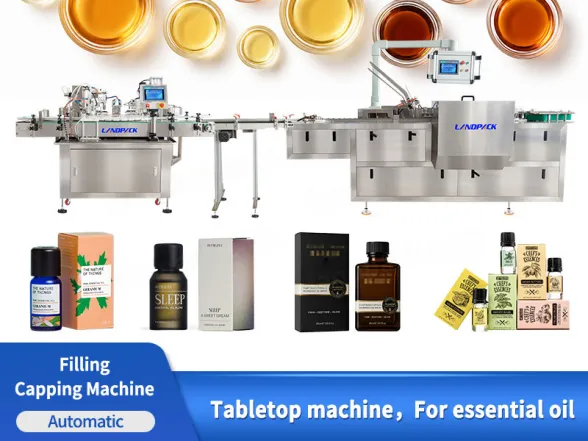

Automatic perfume and essential oil filling capping cartoning machine with magnetic pump filling, cap feeding, screw capping and servo carton packing.

Application:

It can be used in perfume, aromatherapy, cosmetics and personal care production lines where automatic filling, inner cap pressing, outer cap tightening and carton packaging are required.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in perfume, aromatherapy, cosmetics and personal care production lines where automatic filling, inner cap pressing, outer cap tightening and carton packaging are required. Such as lavender essential oil, peppermint oil, tea tree oil, eucalyptus oil, perfume oil, attar oil, fragrance oil, facial serum, hair care oil, beard oil, cuticle oil, massage oil and body care oil.

Liquid Bottle Case Packing System and Perfume Oil Cartoning Machine

Package Type:

Suitable for small glass or plastic bottles fitted with inner plugs and outer screw caps, followed by automatic packaging into folding cartons.

FEATURES

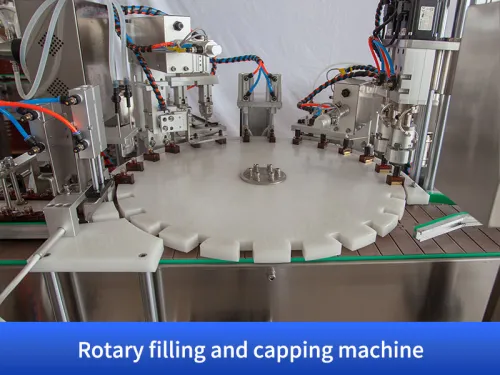

1. The rotary filling and capping structure combines multiple packaging processes within a compact production area.

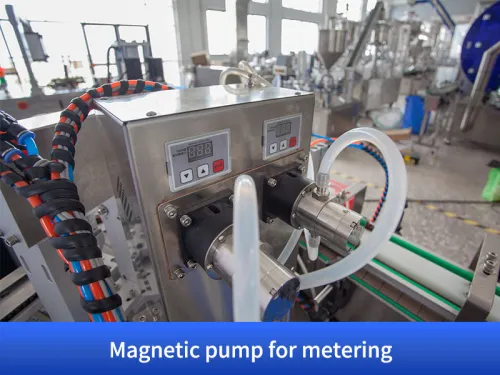

2. Double-head magnetic pump filling supports controlled dosing of essential oils, perfume oils and other low-viscosity liquids.

3. Magnetic drive pumps use a mechanically separated drive structure, helping reduce routine maintenance requirements.

4. Vibration feeders automatically arrange and supply inner plugs and outer caps to the corresponding working stations.

5. Automatic inner cap pressing and outer cap tightening reduce manual cap placement during continuous production.

6. Double-head working stations increase the number of bottles processed during each operating cycle.

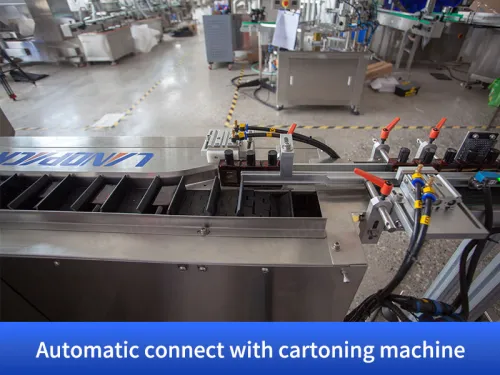

7. The filling and capping machine connects directly with the cartoning machine through an automatic bottle conveyor.

8. The full-servo cartoning machine completes carton feeding, opening, bottle insertion and carton sealing in sequence.

9. PLC and HMI controls allow operators to adjust filling, capping and cartoning settings from the control panel.

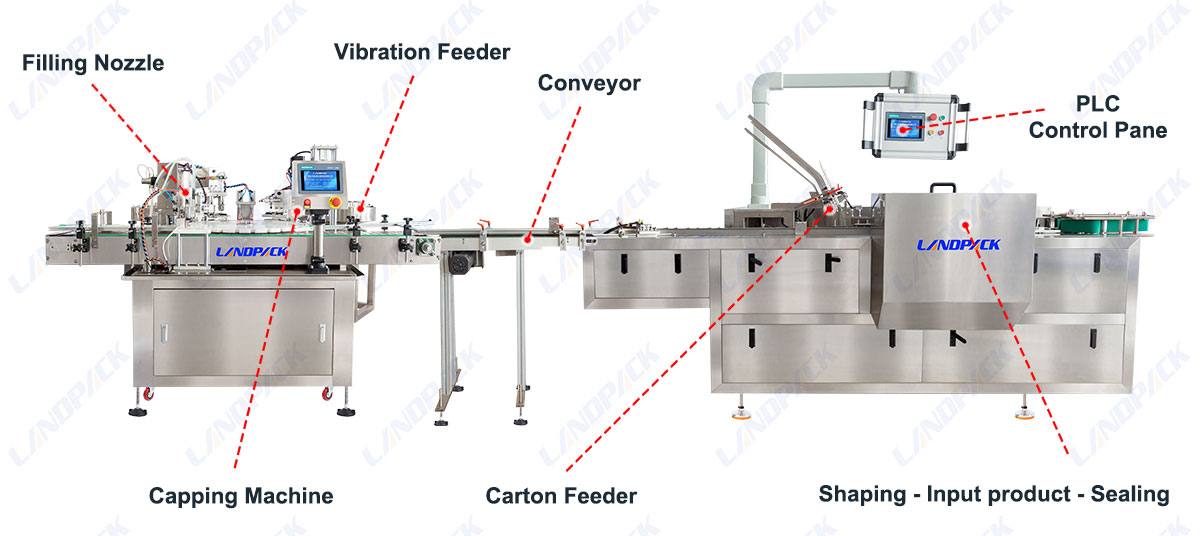

Machine Structure Overview:

1. Filling Nozzle 2. Capping Machine 3. Vibration Feeder 4. Conveor 5. Carton Feeder 6. PLC Control Pane 7. Shaping - Input Product - Sealing

Liquid Bottle Case Packing System and Perfume Oil Cartoning Machine

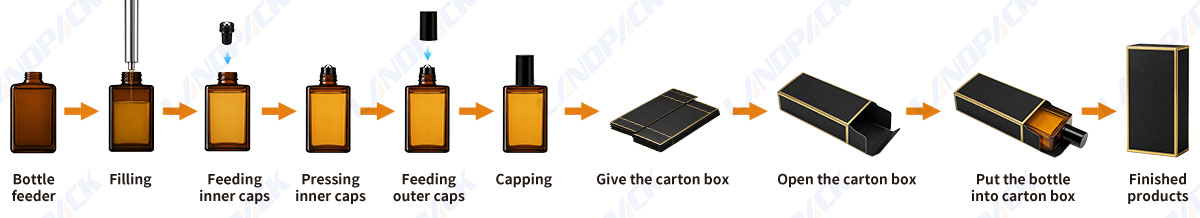

WORKFLOW

Bottle Feeding

Double-Head Magnetic Pump Filling

Inner Cap Feeding

Screw Capping

Carton Feeding and Forming

Finished Product Output

PARAMETER

Item	Specification
Filling Method	Magnetic Drive Pump Filling
Filling Heads	2 Heads
Filling Range	5–100 ml
Filling Accuracy	±1%
Production Speed	30–50 Bottles/Min
Applicable Products	Essential Oil, Perfume Oil, Serum and Other Low-Viscosity Liquids
Control System	PLC with Touch Screen
Contact Material	SS316 Stainless Steel
Power Supply	220V / 50Hz

Model		LD-80A	LD-80L
Cartoning speed		30-70 Cartons/min	20-60 Cartons/min
Carton	Quality requirement	250-450g/m2(According to box dimensions)
	Dimension range (LxWxH)	L:90-250mm W:50-200mm H:20-80mm	L:120-360mm W:50-260mm H:20-90mm
Compressed air	Working pressure	≥0.6Mpa
	Air consumption	20m'
Power supply		220V/50HZ
Motor Power		8kw

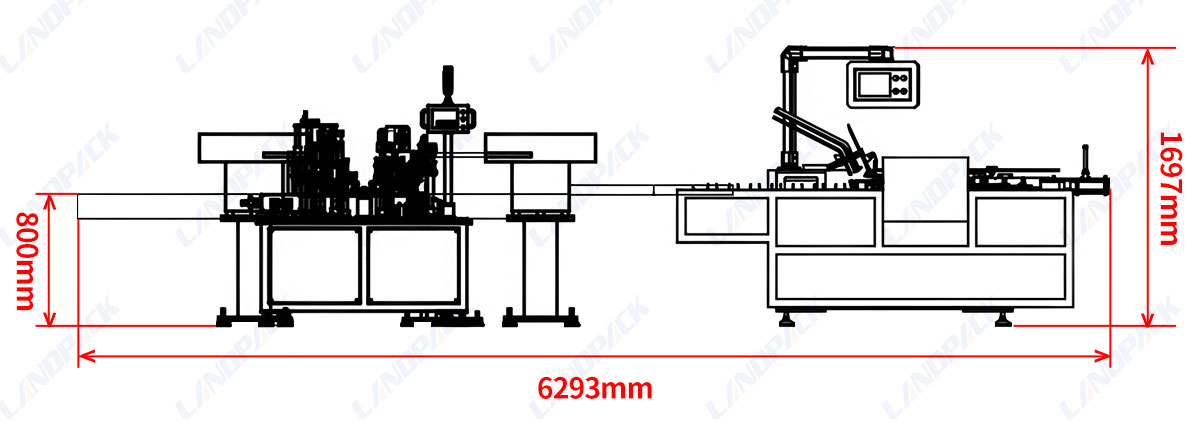

Machine dimension(Lx Wx H)		5970mm x 1610mm x 2262mm	6236mm x 1867mm x 2262mm
Machine weight		1800kg	2000kg
