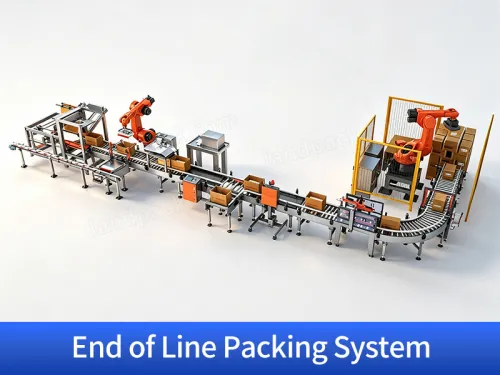

Automatic Case Packing Robot Palletizing Packing Systems For Carton End of Line Packaging

Introduction:

The Fully Automatic Cartoning Case Packaging System is designed for end-of-line secondary packaging of bottles, cans, jars, plastic containers and barrels.

Application:

This system is commonly used for food, beverage, chemical, daily-use and healthcare product lines, such as sauce bottles, canned food, detergent bottles, lubricant barrels, chemical containers, medicine bottles and healthcare jars.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

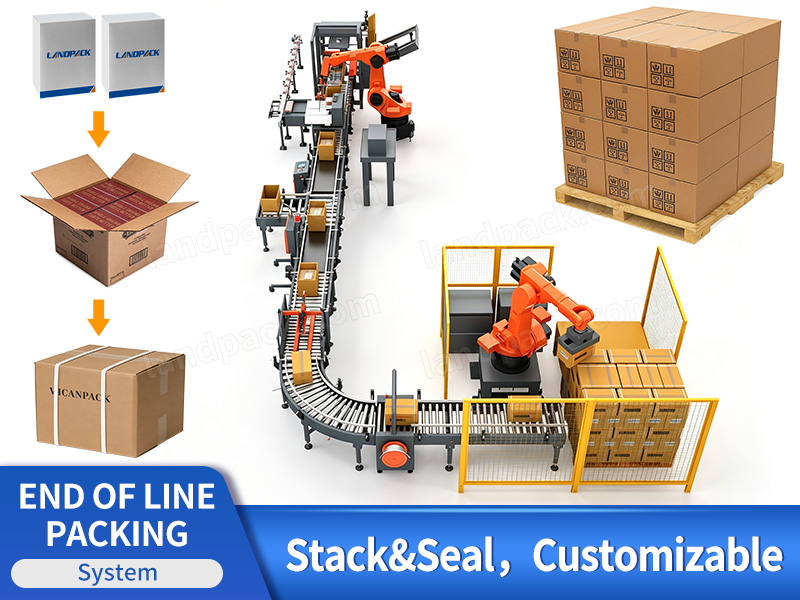

This end-of-line packaging system is suitable for end-of-line carton packaging and palletizing in various industries such as snack cartons, beverage cartons, frozen food cartons, detergent cartons, tissue cartons, cosmetic cartons, medicine cartons, healthcare product boxes.

Automatic Case Packing Robot Palletizing Packing Systems For Carton End of Line Packaging

Package Type:

It is designed for automatic secondary packaging and palletizing of various packaged products, including cartons, bottles, cans, jars, stand-up pouches, pillow bags, making it suitable for complete end-of-line packaging solution in food, daily chemical, pharmaceutical and consumer goods industries.

FEATURES

1. Customized secondary packaging solution for cartons, bottles, bags and plastic ampoules.

2. Fully automatic process from carton erecting, product loading, sealing, labeling to strapping.

3. Can connect with robotic palletizing and logistics systems for intelligent factory automation.

4. Fast-loading tape structure makes tape replacement quicker and easier.

5. Heavy-duty motor and durable conveyor system ensure stable long-time operation.

6. Supports large-size cartons with an adjustable height ruler for flexible carton adjustment.

7. Integrated weighing, rejection and label inspection functions improve packaging accuracy and quality control.

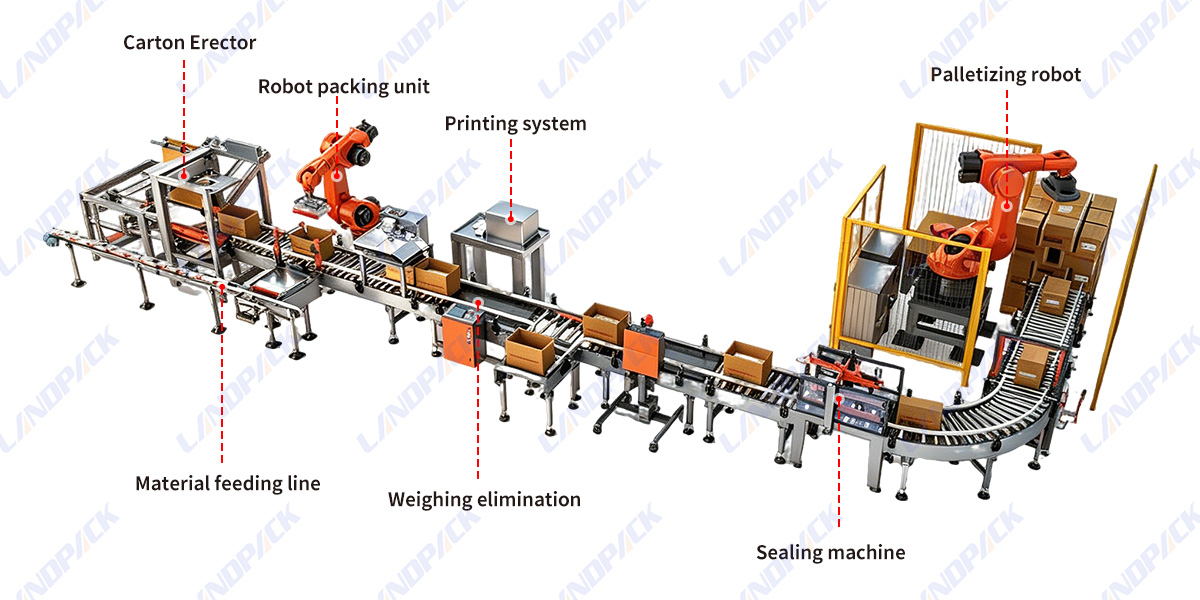

Machine Structure Overview:

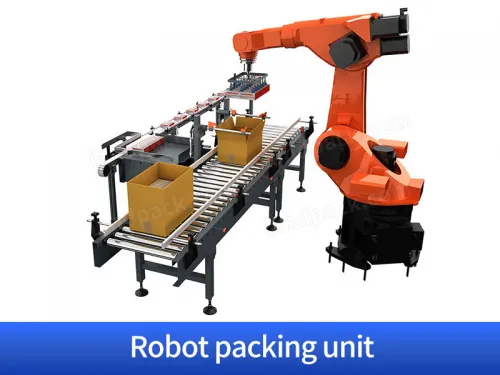

1. Carton Erector 2. Palletizing robot 3. Robot packing unit 4. Printing system 4. Material feeding line 5. Weighing elimination 6. Sealing machine

Automatic Case Packing Robot Palletizing Packing Systems For Carton End of Line Packaging

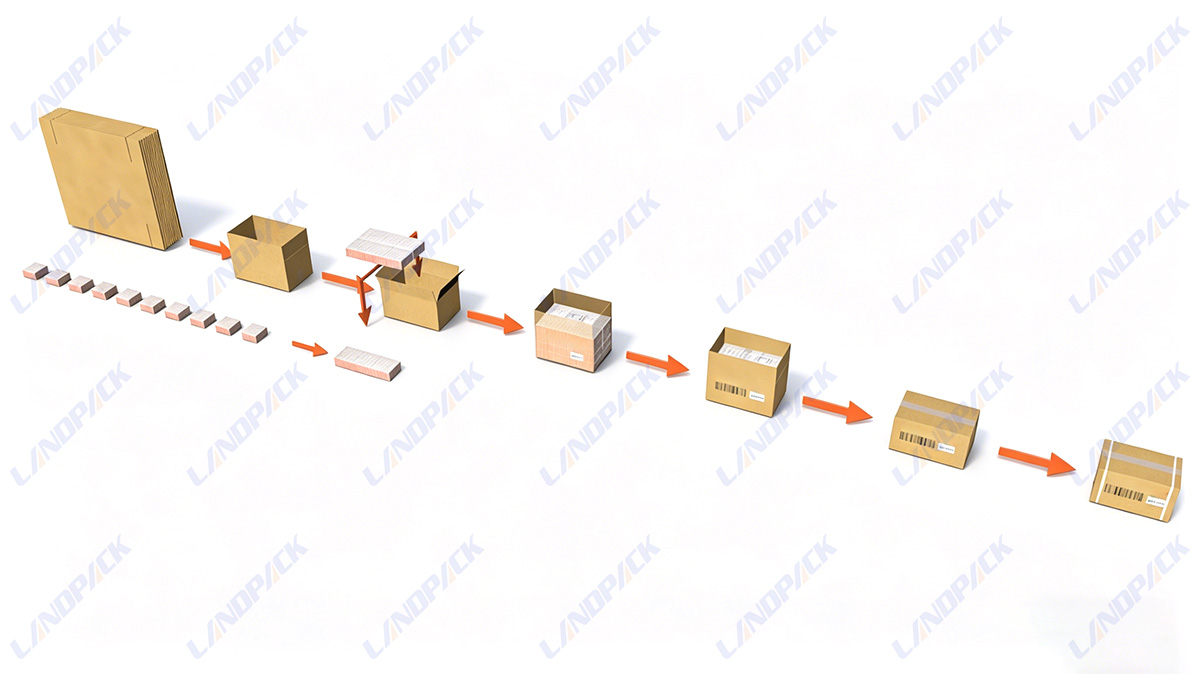

WORKFLOW

Carton Conveying

Product Feeding

Automatic Case Packing

Carton Sealing

Carton Transfer

Robotic Palletizing

Pallet Conveying

Finished Pallet Output

PARAMETER

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)

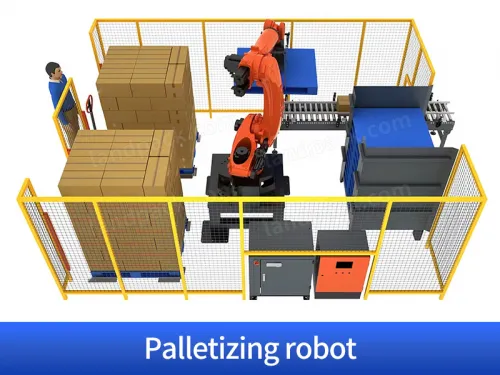

Automatic Robot palletizer
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min

Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
