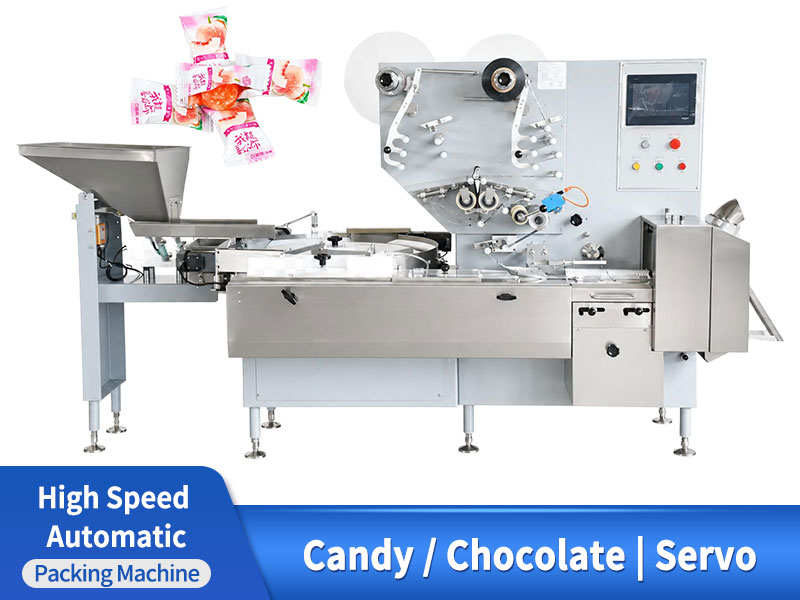

High Speed Candy Packing Machine Automatic Confectionery Flow Wrapping Machine

Introduction:

High-speed candy pillow packing machine with product sorting, triple-servo control, dual film rolls, heat sealing and cutting for confectionery products.

Application:

This high-speed candy packing machine is suitable for automatically feeding and wrapping hard candy, soft candy, chocolate, chewing candy and other small confectionery products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in candy, chocolate, confectionery and snack production lines where automatic product sorting, continuous feeding, roll film wrapping, heat sealing and cutting are required. Such as fruit candy, milk candy, mint candy, caramel candy, toffee, jelly candy, gummy bears, chocolate balls, chocolate cubes, filled chocolate, hawthorn pieces, preserved fruit, beef granules, cereal bites and small snack pieces.

High Speed Candy Packing Machine Automatic Confectionery Flow Wrapping Machine

Package Type:

Suitable for individually formed pillow packs made from heat-sealable laminated roll film for regularly shaped candy, chocolate and snack products.

FEATURES

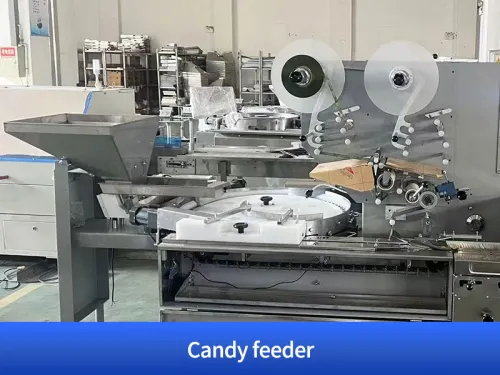

1. The oversized sorting tray arranges products before feeding and helps reduce empty packages during continuous production.

2. Triple-servo control independently manages product conveying, film feeding and sealing movement for accurate position synchronization.

3. The touchscreen allows operators to set bag length and adjust product feeding or cutting positions without replacing mechanical transmission parts.

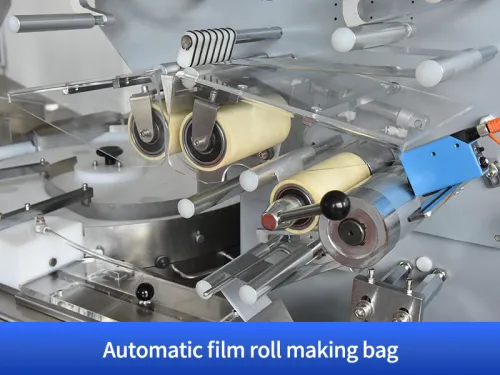

4. The dual-roll film feeding structure supports automatic film transfer between two film rolls without stopping normal production.

5. Servo-driven chain conveying keeps products evenly spaced as they enter the bag-forming and sealing section.

6. Longitudinal and transverse heat-sealing systems form closed pillow packs around each individual product.

7. Food-contact sections use 304 stainless steel to support confectionery production and routine cleaning.

8. Each main machine section can operate independently, making production testing, adjustment and maintenance more convenient.

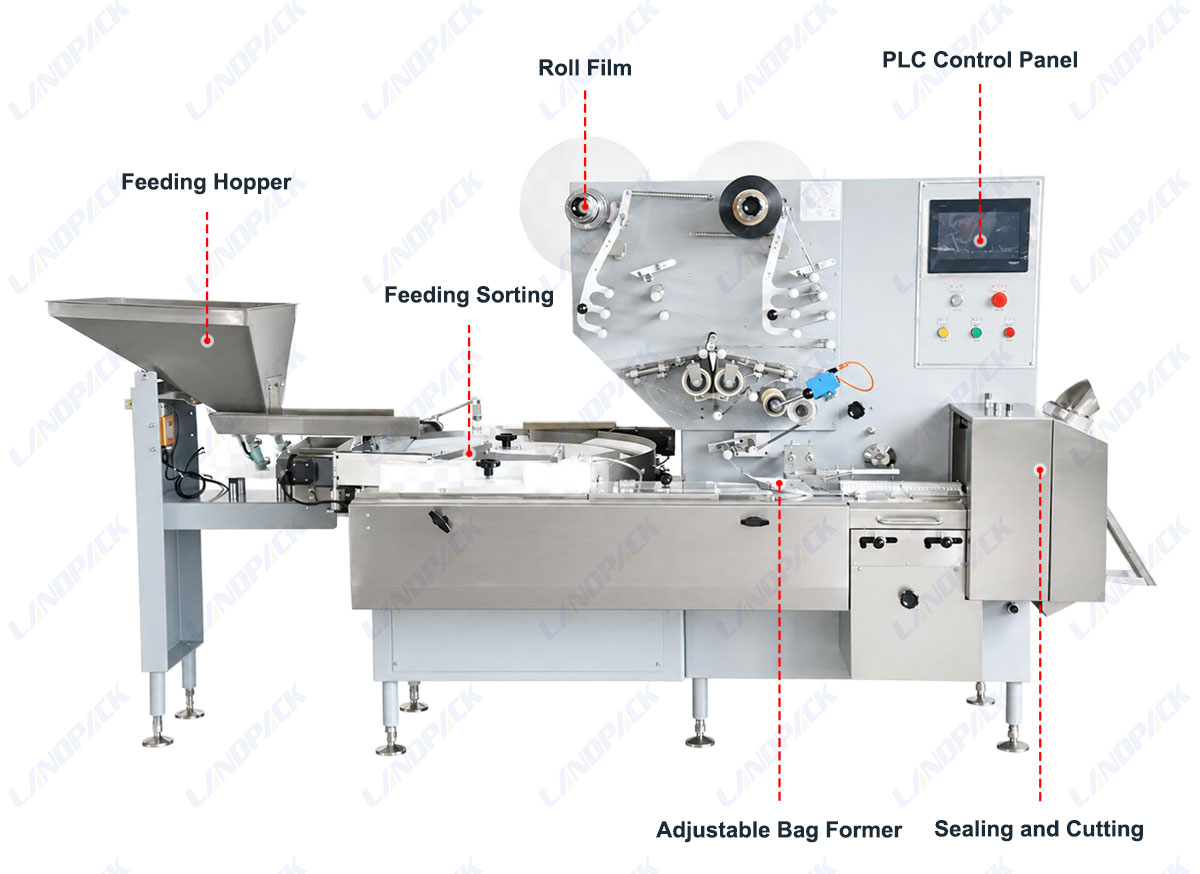

Machine Structure Overview:

1. Feeding Hopper 2. Feeding Sorting 3. Roll Film 4. PLC Control Panel 5. Adjustable Bag Former 6. Sealing and Cutting

High Speed Candy Packing Machine Automatic Confectionery Flow Wrapping Machine

WORKFLOW

Feeding Hopper

Product Sorting Tray

Orderly Feeding and Conveying

Roll Film Unwinding

Bag Forming

Product Infeed

PARAMETER

	Parameter	Specification
	Machine Model	LD-ZB1500
	Machine Type	Automatic High-Speed Candy Pillow Packing Machine
	Packaging Method	Individual pillow wrapping
	Packaging Film	Heat-sealable laminated roll film
	Bag Length	45–120 mm
	Maximum Packaging Speed	50–1500 pieces/min
	Control System	Triple-servo control with touchscreen HMI
	Film Feeding System	Servo-controlled dual-roll film feeding
	Product Feeding System	Sorting tray with servo-driven chain conveyor
	Main Contact Material	304 stainless steel
	Voltage	380 V, 50 Hz
	Total Power	4.5 kW
	Machine Dimensions	3055 × 1437 × 1780 mm
	Machine Weight	Approx. 1526 kg
