Fully Automatic Cotton Candy Toffee Candy Feeding And Packaging Line

Introduction:

The Fully Automatic Cotton Candy Toffee Candy Feeding And Packaging Line is a horizontal flow packaging solution specially designed for soft, lightweight and irregular-shaped confectionery products. The system integrates automatic feeding, product arranging, film forming, filling, sealing, cutting and finished product conveying.

Application:

The Candy Packaging Line is designed for cotton candy, marshmallow, toffee, caramel candy, gummies and soft candies, hard candy, soft candy, fruit candy, milk candy, coffee candy and other small confectionery products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Cotton Candy Toffee Candy Feeding And Packaging Line

Package Type:

The Candy Packaging Line is suitable for pillow bags, back sealing bags, single-piece candy packaging, multi-piece packs and customized packaging formats. It supports various heat-sealable films including laminated film, OPP/CPP film, PE film and other food-grade packaging materials.

FEATURES

1. High-speed packaging system delivers up to 180 bags per minute, improving confectionery production efficiency.

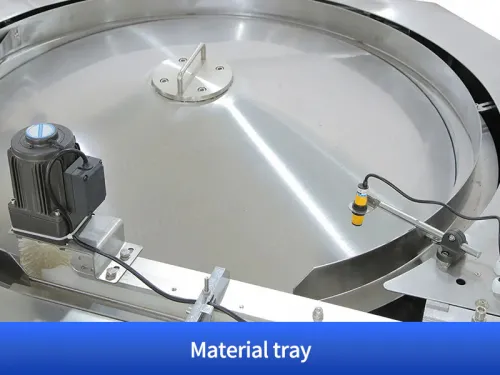

2. Rotary sorting disc automatically arranges bulk candies and feeds products continuously into the packaging process.

3. High-accuracy counting system ensures consistent product quantity in every package, reducing giveaway and packaging errors.4. Multi-servo control technology synchronizes feeding, film pulling, sealing and cutting for stable high-speed operation.

5. Adjustable bag former supports various candy sizes and pillow bag specifications with quick product changeovers.

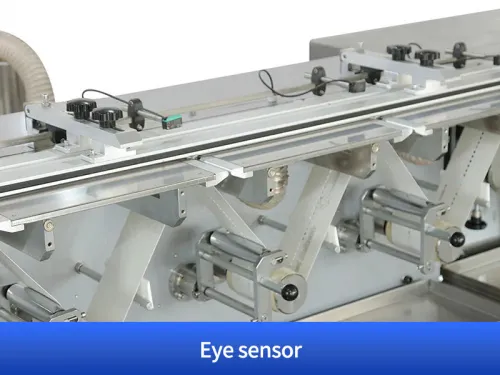

6. Photoelectric film tracking system ensures accurate cutting position and professional package appearance.

7. PLC touch screen interface enables easy adjustment of packaging speed, bag length, sealing temperature and production parameters.

8. SUS304 stainless steel structure and food-grade conveyor belts provide hygienic operation and easy maintenance for candy packaging applications.

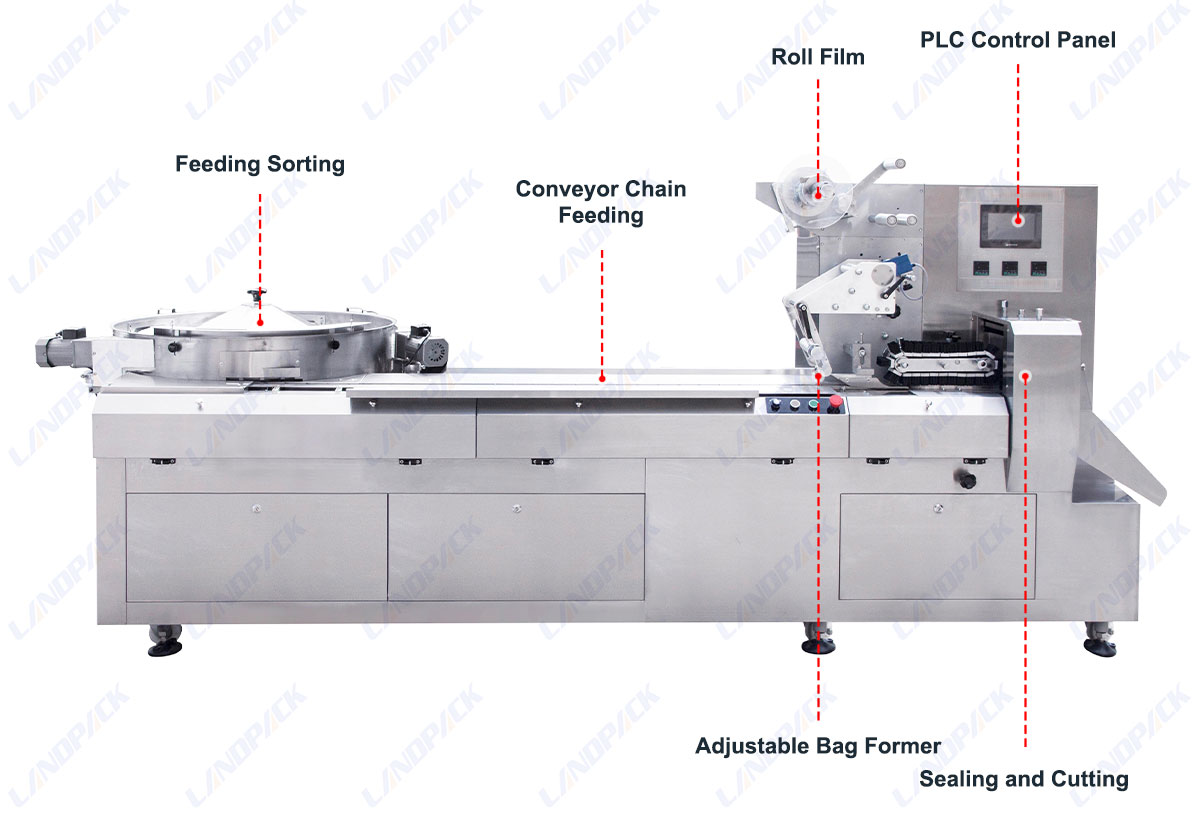

Machine Structure Overview:

1.PLC Control Panel 2. Feeding Sorting 3. Conveyor Chain Feeding 4. Adjustable Bag Former 5. Sealing and Cutting

Fully Automatic Cotton Candy Toffee Candy Feeding And Packaging Line

High Speed Candy Packing Machine Automatic Confectionery Flow Wrapping Machine

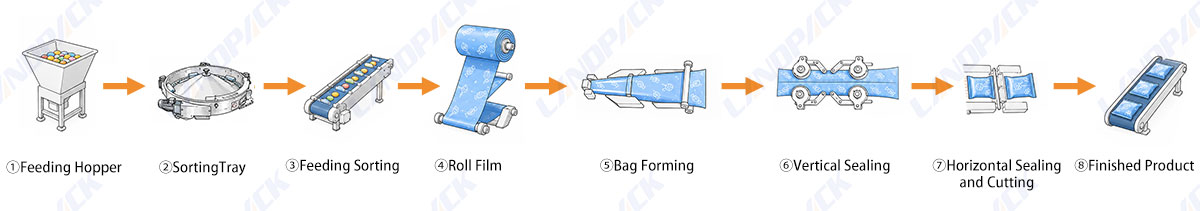

WORKFLOW

Candy Feeding

Product Arrangement

Film Forming

Product Filling

Heat Sealing

Cutting

Finished Package Output

PARAMETER

	Model	LD-L600
	Machine Type	Automatic Horizontal Flow Packing Machine
	Applicable Products	Marshmallows, candies, chocolate bars, biscuits, wafers, nougat and snack bars
	Packaging Material	Heat-Sealable Laminated Roll Film
	Packaging Type	Individual Pillow Bag
	Packing Speed	50–800 Bags/Min
	Finished Bag Size	Length 15–200 mm × Width 15–60 mm × Height 5–30 mm
	Control System	PLC Touch Screen with Multi-Servo Control
	Film Tracking	Photoelectric Color Mark Sensor
	Machine Frame	Stainless Steel 201
	Conveyor Belt	Food-Grade PU Belt
	Voltage	380 V, 50 Hz, 3 Phase
	Total Power	7.3 kW
	Net Weight	Approx. 1700 kg
