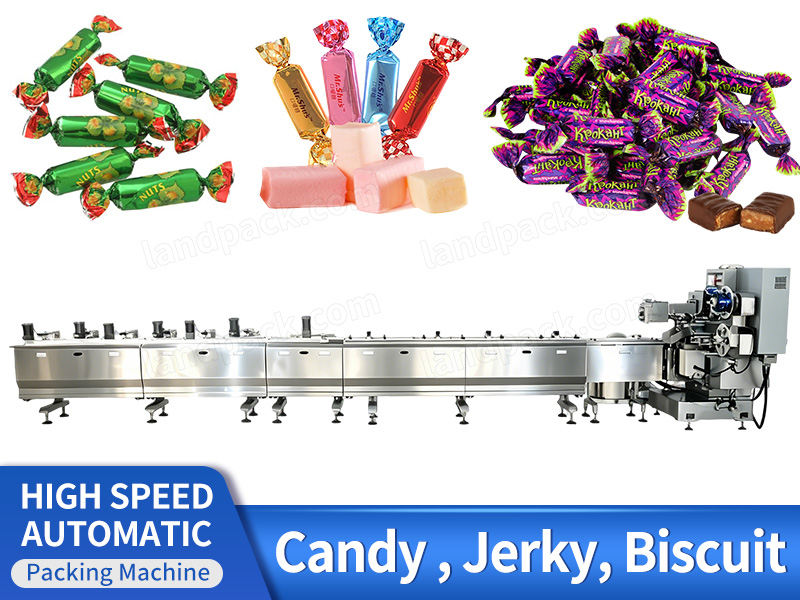

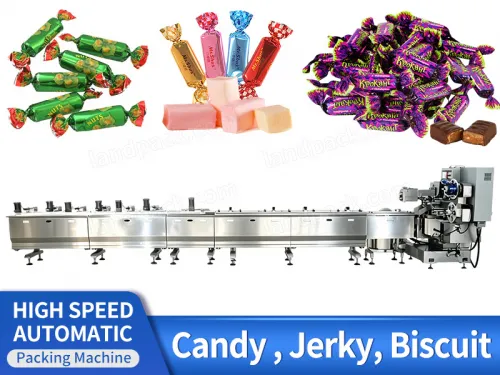

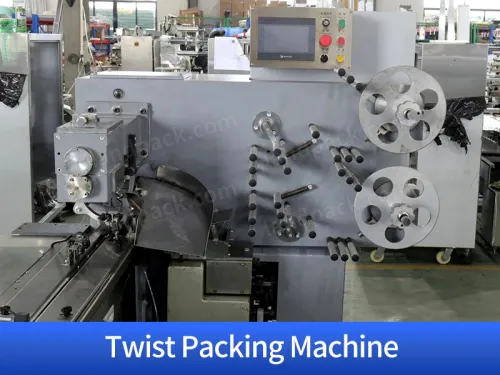

Automatic Candy Wrapping Machine Toffee Double Twist Candy Wrapping Machine

Introduction:

This machine is designed for automatic feeding, positioning, film wrapping and double-end twisting of candies.

Application:

Automatic double twist candy wrapping machine for hard candy, soft toffee, chocolate and nougat, with servo feeding, photoelectric inspection and double-end twisting.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This double twist candy wrapping machine can be used in candy, chocolate, bakery snack and confectionery production lines where automatic product feeding, film forming, wrapping and double-end twisting are required. It is suitable for products such as fruit candy, coffee candy, mint candy, milk candy, boiled sweets, caramel candy, chewy toffee, malt candy, crisp candy, chocolate pieces, filled chocolate, chocolate toffee, nougat cubes and compound chocolate products.

Automatic Candy Wrapping Machine Toffee Double Twist Candy Wrapping Machine

Package Type:

Suitable for individual double-twist wrapping with dedicated twistable candy film, with optional inner and outer film feeding through the dual-roll structure.

FEATURES

1. The automatic feeding conveyor arranges and transfers individual candy pieces continuously to the wrapping section.

2. The photoelectric inspection system detects incoming products to reduce empty wrappers during continuous operation.

3. The full-servo control system coordinates product feeding, film pulling and twist wrapping with fewer mechanical transmission components.

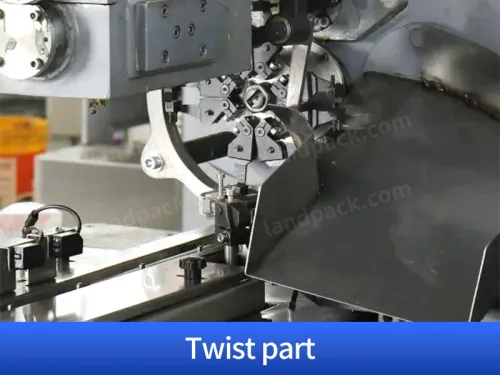

4. The double-twist unit twists both ends of the film to produce the traditional candy wrapping format.

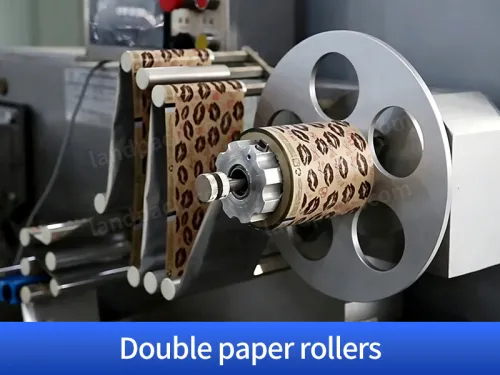

5. The dual film-roll structure supports inner and outer wrapping materials according to product requirements.

6. The touch-screen interface allows operators to monitor the working process and adjust production parameters from one control panel.

7. The feeding belts can be removed without tools, while the waste collection plate underneath helps simplify cleaning and maintenance.

8. The machine can be connected with upstream candy production equipment for automatic feeding, wrapping and finished-product output.

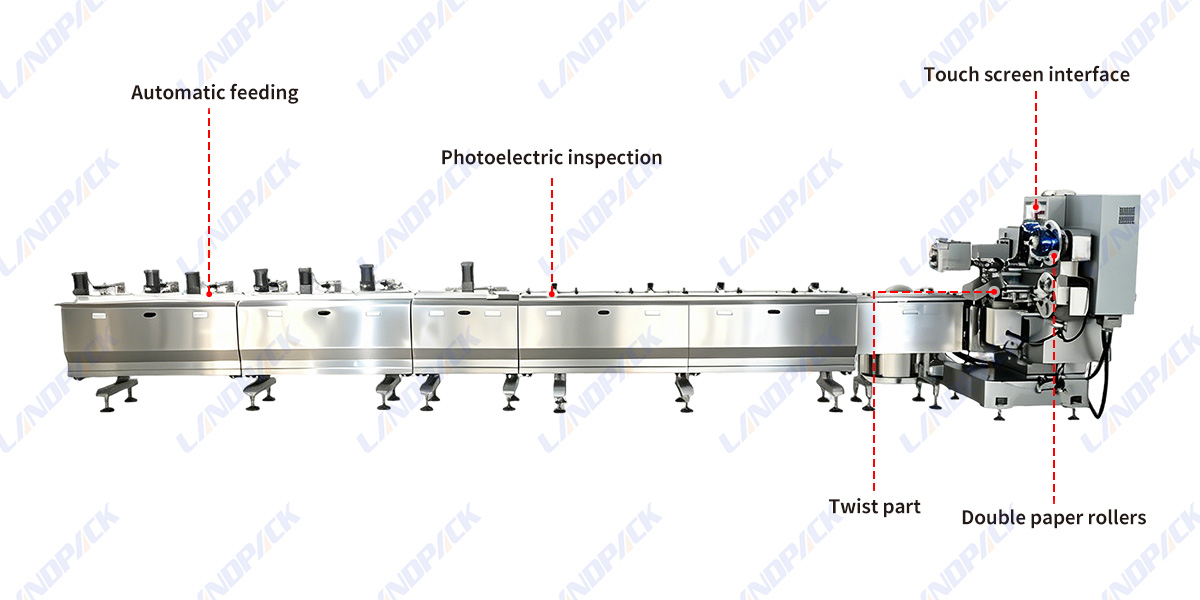

Machine Structure Overview:

1. Automatic Feeding 2. Photoelectric Inspection 3. Twist Par 4. Touch Screen Interface 5. Double Paper Rollers

Automatic Candy Wrapping Machine Toffee Double Twist Candy Wrapping Machine

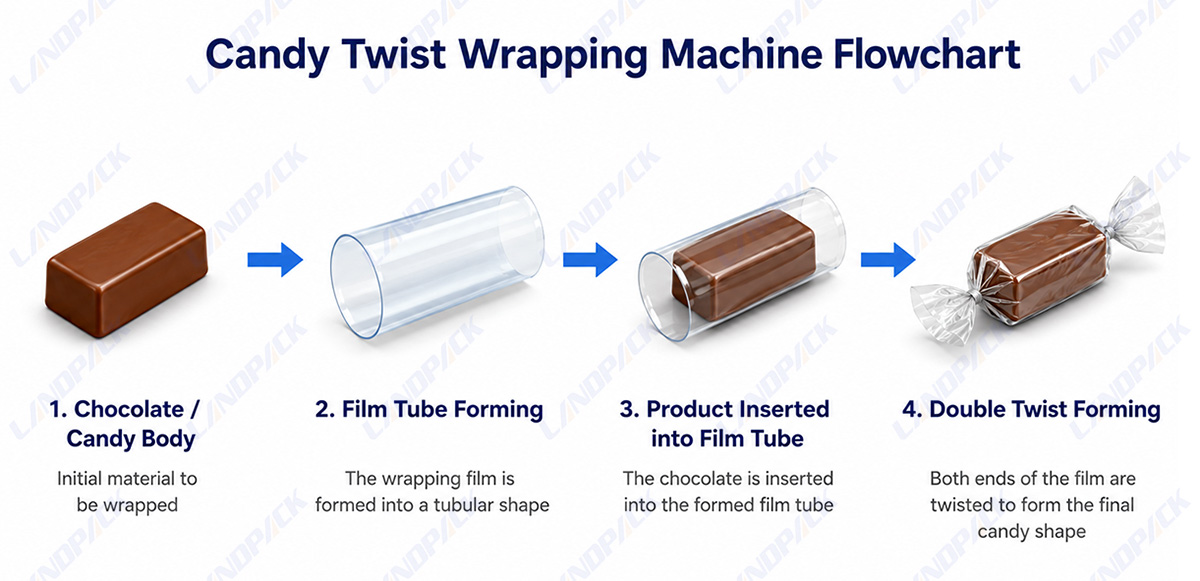

WORKFLOW

Product Arrangement

Photoelectric Inspection

Film Unwinding

Film Tube Forming

Product Insertion

PARAMETER

Model No.	LD-LS800
Packing Speed	50-400 bags/mIN
Size of Package	L: (12-42)mm * W: (15-30)mm * H: (6-25)mm
Film Material	Specialty packaging film for twist wrapping machines
Motor Powe	8.5KW
Machine size	6348mm * W: 1638mm * H: 1600mm
Machine Weight	2800KG
Voltage	380V 50Hz
