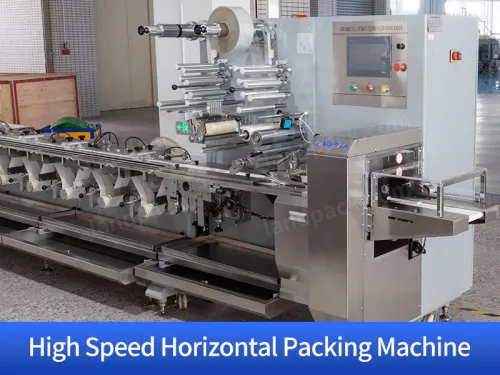

High Speed Candy Packing Machine 9 Servo Control Toffee Flow Packaging Machine

Introduction:

High-speed automatic candy and chocolate flow wrapping machine with 9-servo control, automatic feeding, film splicing, product detection, sealing and cutting.

Application:

The High-Speed Feeding Flow Wrapping Machine is designed for continuous pillow packaging of chocolates, wafers, biscuits, nougat, marshmallows and other delicate or easily damaged products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

Application

It can be used in confectionery, bakery and snack food production lines where automatic product feeding, positioning, film wrapping, sealing and cutting are required. Such as chocolate bars, chocolate pieces, coated chocolate, wafer biscuits, sandwich biscuits, cookies, crackers, nougat, toffee, peanut candy, crispy candy, marshmallows, rice crispy treats, nut bars, cereal bars, protein bars, energy bars and granola bars.

High Speed Candy Packing Machine 9 Servo Control Toffee Flow Packaging Machine

Package Type:

Suitable for pillow packs and fin-seal flow packs formed automatically from heat-sealable roll film.

FEATURES

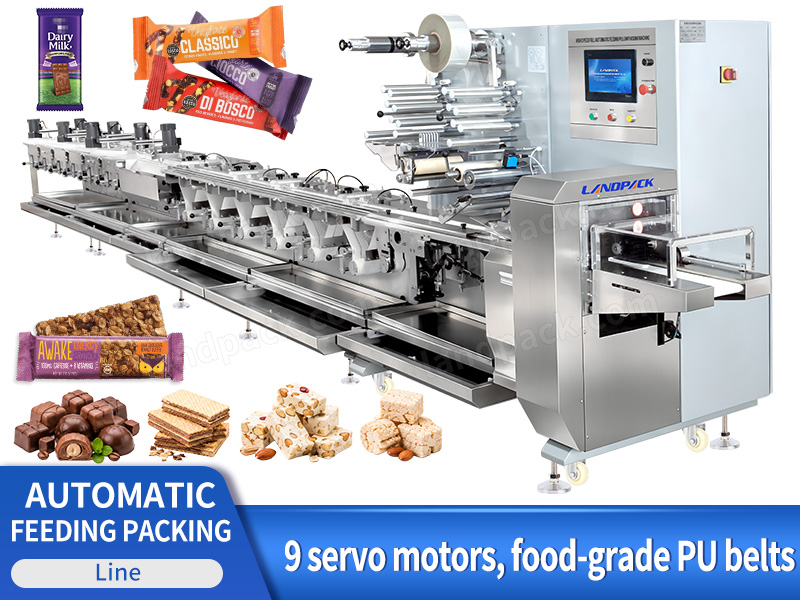

1. Schneider PLC and a 9-servo control system coordinate product feeding, film movement and sealing for continuous high-speed packaging.

2. Automatic feeding and positioning conveyors organize randomly supplied products before transferring them into the flow wrapping section.

3. Automatic product detection identifies feeding gaps and adjusts conveyor movement to reduce unnecessary empty packages.

4. Automatic film-splicing device allows packaging film to be changed without stopping normal production, reducing downtime during roll replacement.

5. Feeding belts support tool-free quick disassembly and automatic belt deviation correction for easier maintenance and reduced belt wear.

6. Food-grade PU conveyor belts are equipped with PTFE scrapers to help remove sticky product residues from the belt surface.

7. Removable residue trays are installed underneath the feeding belts for easier collection of crumbs and cleaning after production.

8. Stainless-steel machine construction and space-saving sliding access doors provide convenient access for routine cleaning and maintenance.

9. The machine can be connected directly with upstream production lines for automatic feeding and continuous flow wrapping production.

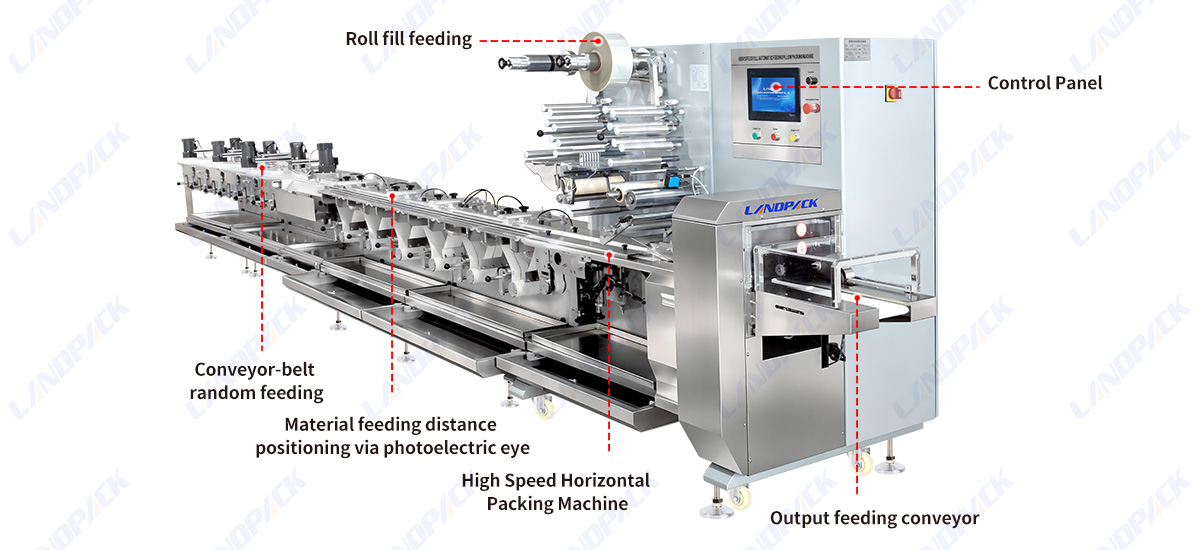

Machine Structure Overview:

High Speed Candy Packing Machine 9 Servo Control Toffee Flow Packaging Machine

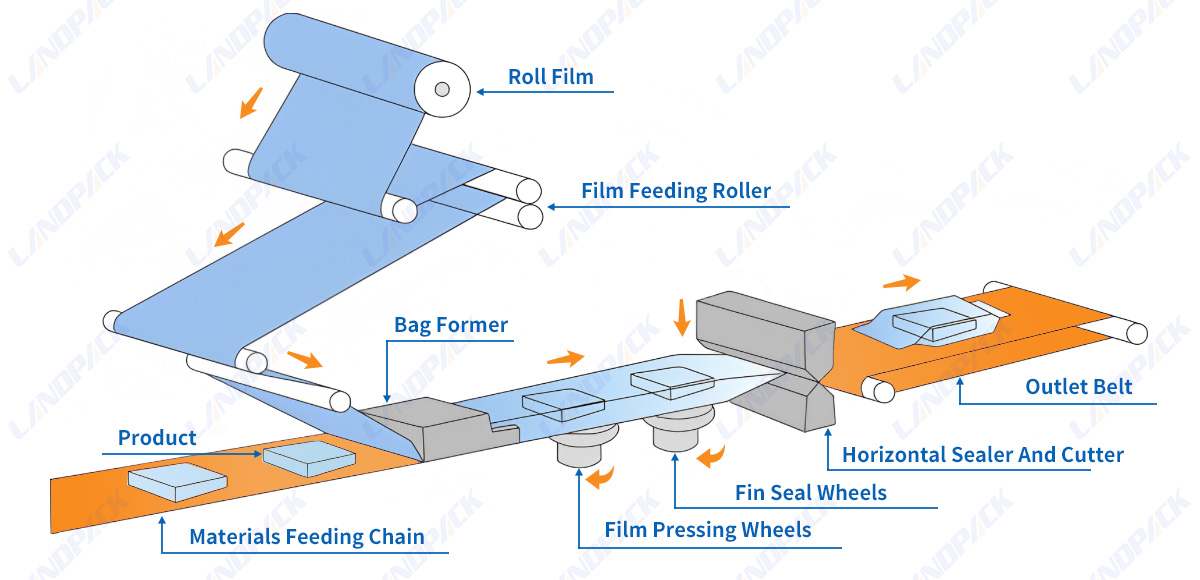

WORKFLOW

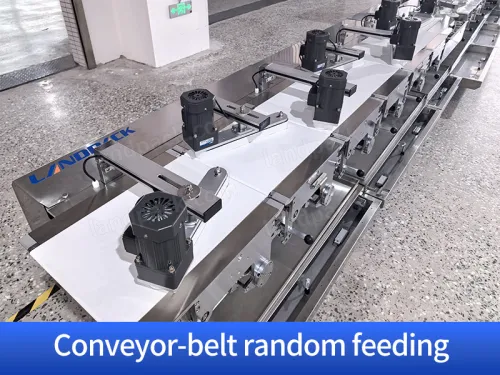

Random Product Feeding

Product Separation & Positioning

Photoelectric Product Detection

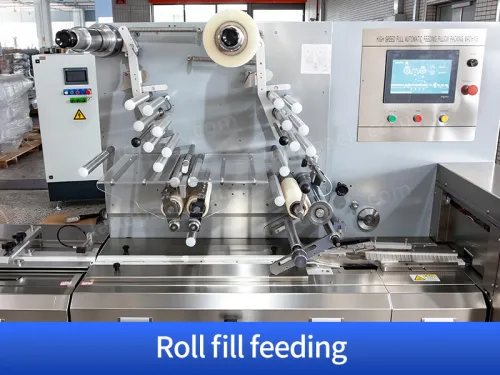

Film Unwinding

Bag Forming

Fin Sealing

Horizontal Sealing & Cutting

Finished Product Output

PARAMETER

	Parameter	Specification
	Model	LD-L1000
	Packaging speed	50-1000bags/min (The packaging speed is determined by the product size and packaging film material)
	Finished bag size	15-20015-605-30mm
	Voltage	380V; 50HZ, 3phase( Can be customized)
	Total power	9.5KW
	Dimensions	8900mm1180mm1786mm
	Weight	3500KGS
	Language support	English, Chinese, Spanish, French, Arabic, Russian

After receiving your inquiry,We will send you the quotation as soon as possible.
