Automatic Candy Packing Machine Gusset Bag Vertical Pouch Packaging Machine

Introduction:

It is suitable for retail food packaging lines requiring automatic weighing and well-shaped finished bags.

Application:

Candy packing machine with 10-head weighing, servo film pulling and VFFS bag forming for Sugus, gummies and hard candy.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in confectionery, snack food, nut, dried fruit, cereal and agricultural product production lines where automatic feeding, multihead weighing, bag forming, filling and sealing are required. Such as Swiss candy, cashew nuts, dried cranberries, chocolate pieces, almonds, gummy candy, granola, pistachios, raisins, roasted peanuts, hard candy, sunflower seeds, puffed snacks, hazelnuts, cereal, pumpkin seeds, jelly candy and other free-flowing granular or irregular solid products.

Automatic Candy Packing Machine Gusset Bag Vertical Pouch Packaging Machine

Package Type:

The machine can produce pillow bags, back-seal gusset bags, and block-bottom style bags by changing the corresponding forming parts. It forms each package directly from roll film and works with printed or plain heat-sealable laminated materials. The reference platform specifically lists back-seal pillow bags and gusset bags.

FEATURES

1. Four-edge heat-sealing structure helps shape the sides of the finished bag and creates a neater, more three-dimensional package appearance.

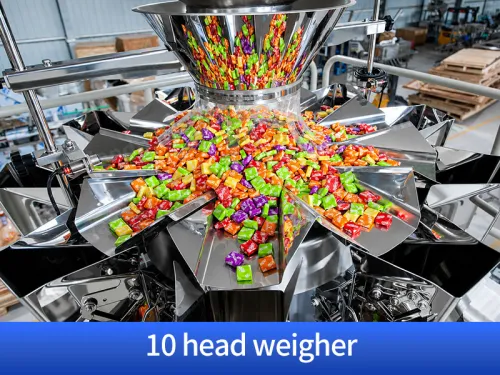

2. Multihead combination weigher provides automatic weighing for candy, nuts, dried fruit and other granular or irregular solid products.

3. Z-type bucket elevator continuously transfers products from the feeding hopper to the weighing system during automatic production.

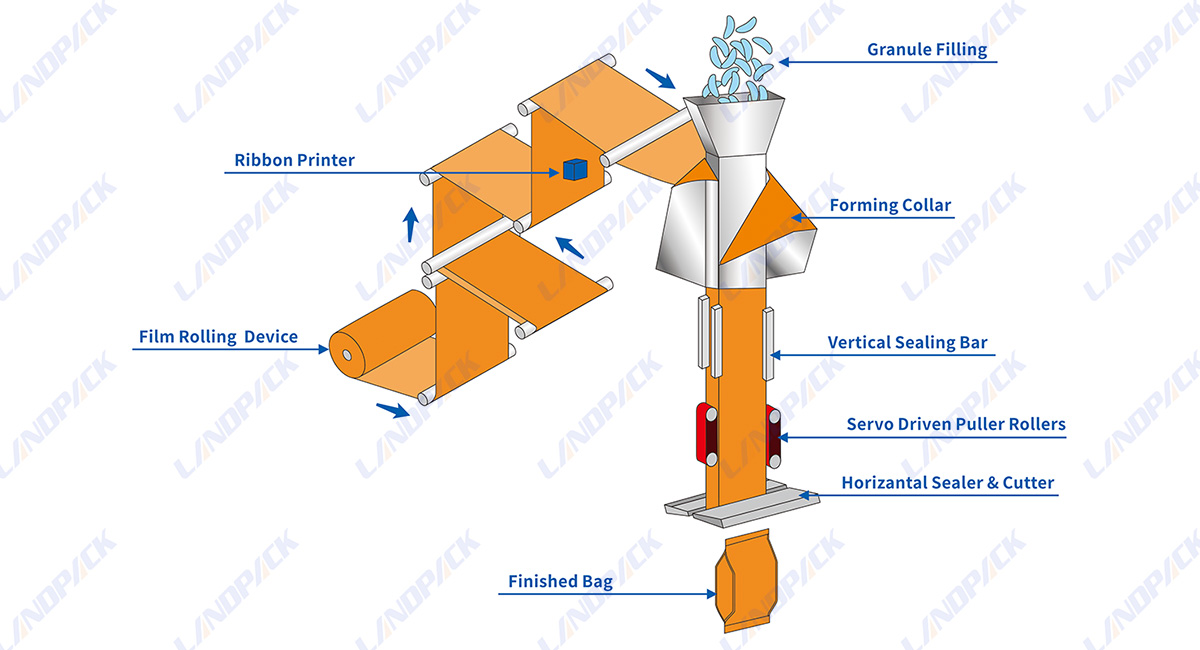

4. Roll film is automatically unwound, guided through the forming collar and formed into bags before product filling.

5. Servo-driven film pulling rollers control film feeding and help maintain consistent bag length during operation.

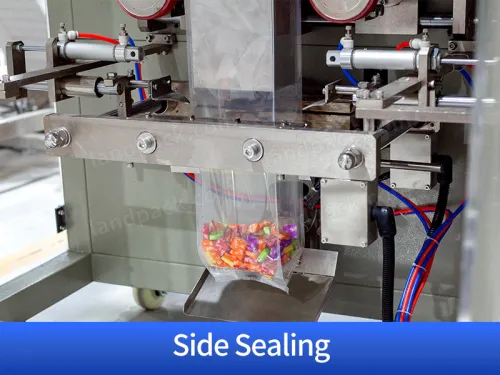

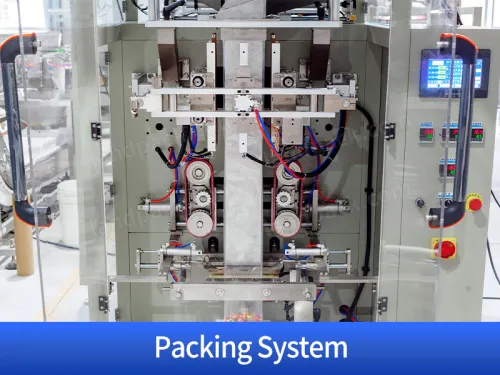

6. Vertical sealing and horizontal sealing devices complete bag forming, sealing and cutting in one continuous packaging process.

7. Ribbon printer can be connected for printing production dates, batch numbers and other coding information on the packaging film.

8. Touchscreen control allows operators to adjust bag length, sealing temperature, weighing parameters and production settings from the control panel.

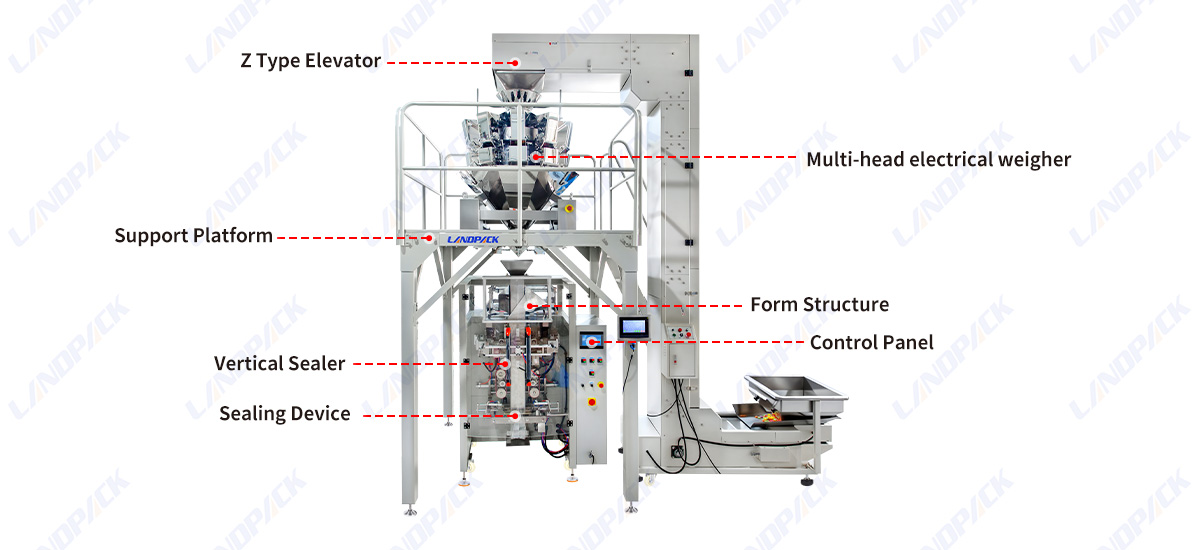

Machine Structure Overview:

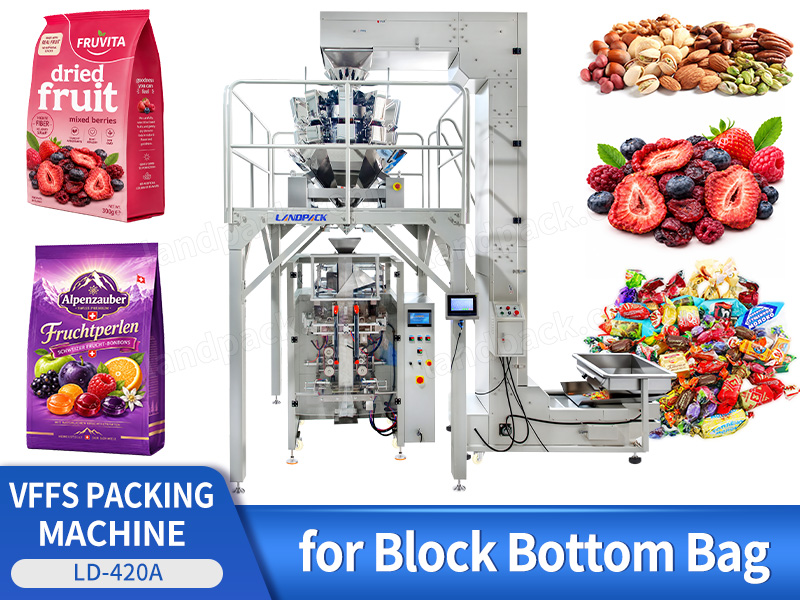

Automatic Candy Packing Machine Gusset Bag Vertical Pouch Packaging Machine

WORKFLOW

Candy Feeding

10-Head Weighing

Roll Film Feeding

Bag Forming

Candy Filling

Vertical Sealing

Gusset / Bottom Forming

Horizontal Sealing and Cutting

PARAMETER

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
