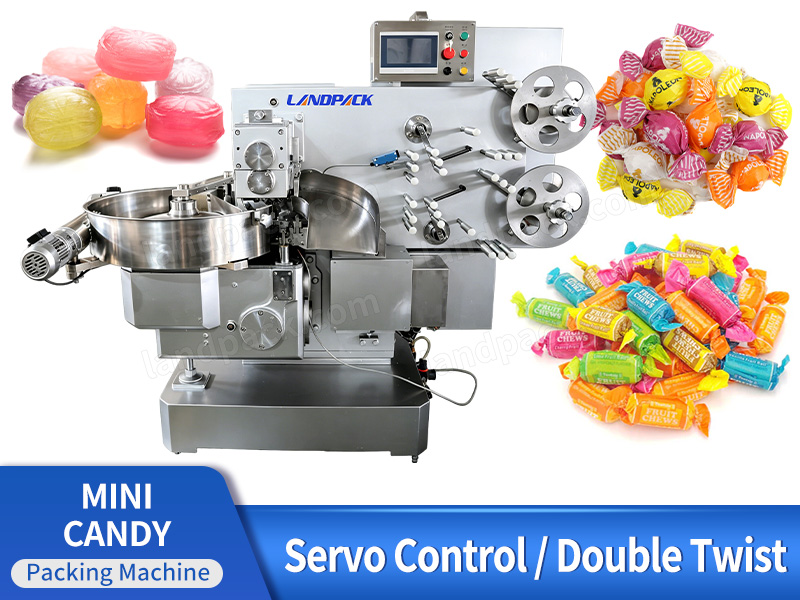

Candy Packing Machine Chocolate Toffee Double Twist wrapping machine

Introduction:

Automatic double twist wrapping machine for hard candy, toffee and chocolate, with rotary feeding, film forming, double-end twisting and high-speed output.

Application:

This mini double twist candy wrapping machine is suitable for automatically wrapping hard candy, soft candy, fruit candy, milk candy, coffee candy and other small confectionery products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in candy, chocolate and snack production lines where automatic product feeding, film wrapping and double-end twisting are required. Such as boiled candy, fruit candy, mint candy, coffee candy, milk candy, herbal candy, caramel candy, chewy candy, fruit chews, chocolate candy, filled chocolate and chocolate toffee.

Candy Packing Machine Chocolate Toffee Double Twist wrapping machine

Package Type:

Suitable for individual double-twist wrapping with cellophane, PVC, polypropylene film, wax paper and laminated wrapping materials.

FEATURES

1. Rotary feeding tray arranges candy automatically and transfers each piece into the wrapping section.

2. Double-twist mechanism twists both ends of the wrapper to form the finished candy package.

3. Single-layer or double-layer paper feeding can be selected according to the wrapping material and product design.|

4. Frequency-converter speed adjustment allows operators to match the machine speed to different candy sizes.

5. Continuous product detection helps reduce empty wrappers during automatic production.

6. Touch screen control provides access to operating settings and production adjustments.

7. The machine handles oval, cylindrical, square, spherical and round tablet products within the specified size range.

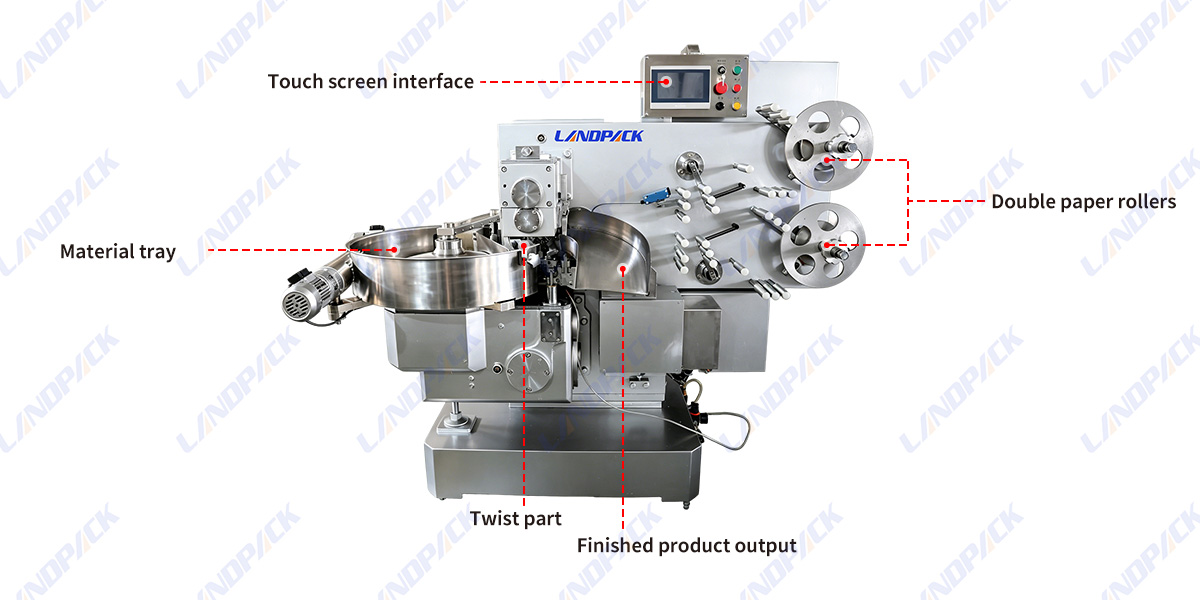

Machine Structure Overview:

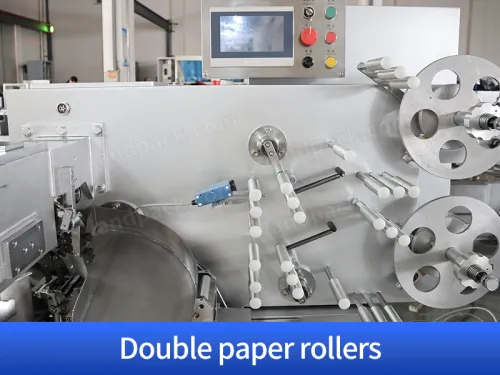

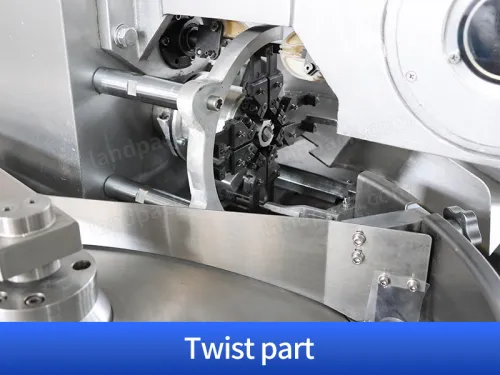

1. Material Tray 2. Touch Screen Interface 3. Double Paper Rollers 4. Twist Part 5. Finished Product Output

Candy Packing Machine Chocolate Toffee Double Twist wrapping machine

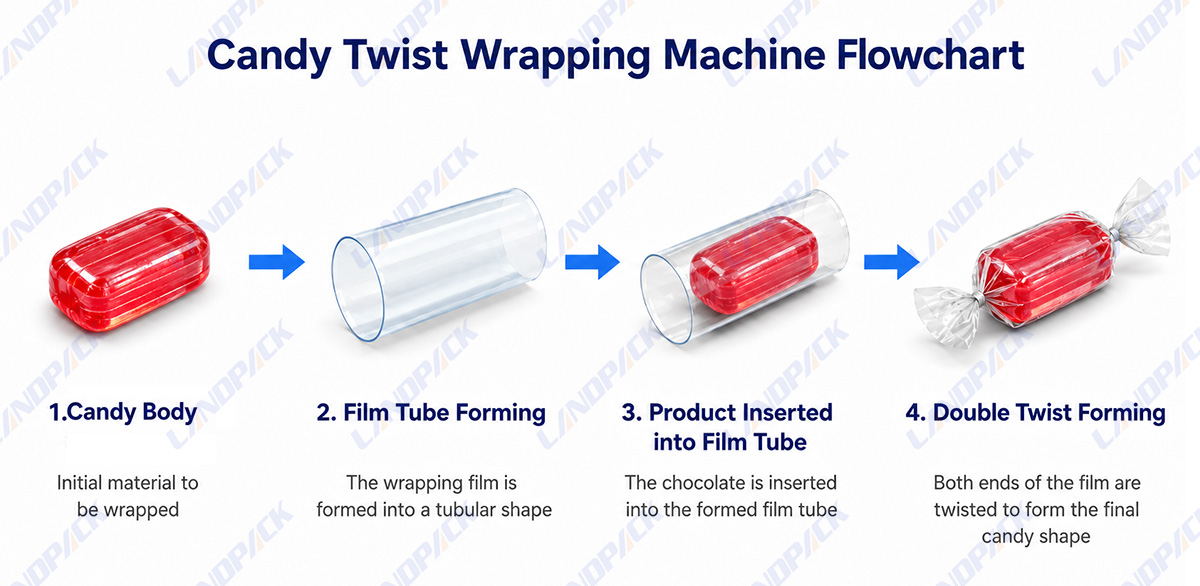

WORKFLOW

Candy Feeding

Product Sorting

Wrapping Film Feeding

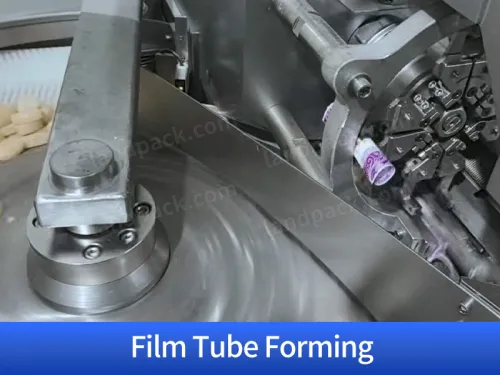

Film Tube Forming

Candy Inserting

Double-End Twisting

Finished Product Output

PARAMETER

	Parameter	Specification
	Packing Speed	100–400 pieces/min
	Product Size	L: 12–32 mm; W: 12–26 mm; H: 6–25 mm
	Wrapping Material	Cellophane, PVC, polypropylene film, wax paper, laminated film
	Product Shape	Oval, cylindrical, square, spherical, or round tablet
	Total Power	2.5 kW
	Power Supply	380 V, 50 Hz
	Machine Dimensions	1910 × 1100 × 1610 mm
	Machine Weight	Approx. 128 kg
