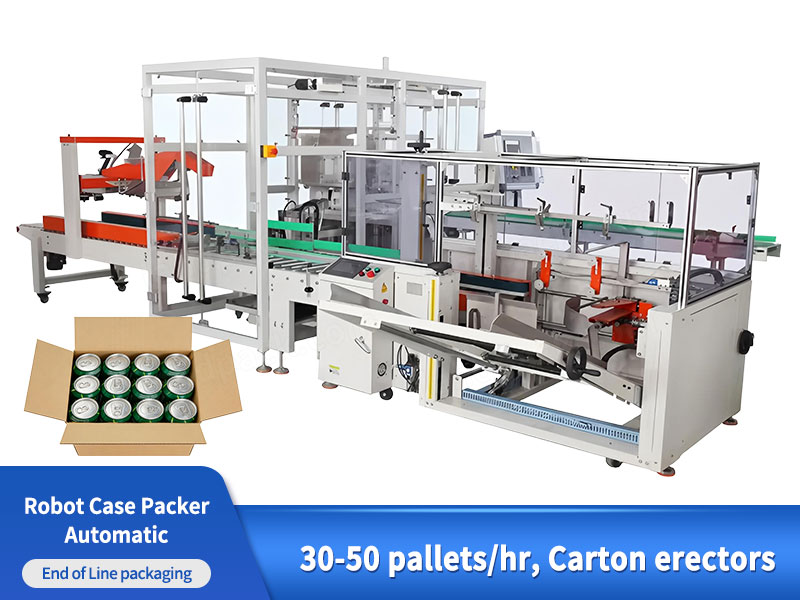

Case Packing Robot Automatic Grab Type Compact Shipping Case Erector and Packer

Introduction:

Automatic robotic case packing line with carton erecting, product loading, carton sealing and in-box inspection functions.

Application:

Suitable for food, cosmetics, consumer electronics and daily chemical packaging applications, this end-of-line packaging system supports continuous carton handling, automatic product arrangement and integrated secondary packaging operations.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic end-of-line case packing system is designed for carton erecting, robotic case packing, carton sealing and in-box inspection, and is widely used for secondary packaging of bottled beverages, canned drinks, dairy products, snack foods, biscuits, shampoo, detergent, cosmetic products, pharmaceutical products, pouches, trays, cartons and other consumer goods, while supporting integration with flow wrappers, shrink wrappers, filling machines and labeling machines for continuous automatic production.

Case Packing Robot Automatic Grab Type Compact Shipping Case Erector and Packer

Package Type:

Suitable for corrugated cartons, shipping boxes and taped cases used in secondary packaging applications. Supports bottles, cans, pouches, trays, cartons and wrapped products with adjustable carton sizes and packing layouts.

FEATURES

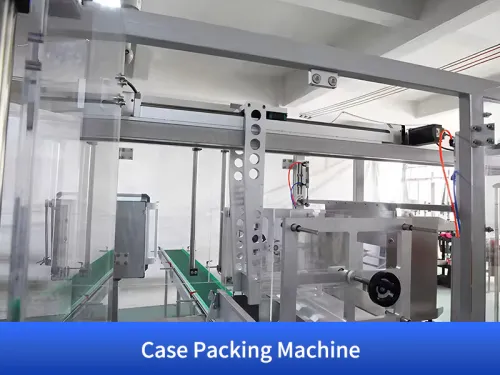

1. Automatic carton erecting system forms cartons from flat blanks continuously.

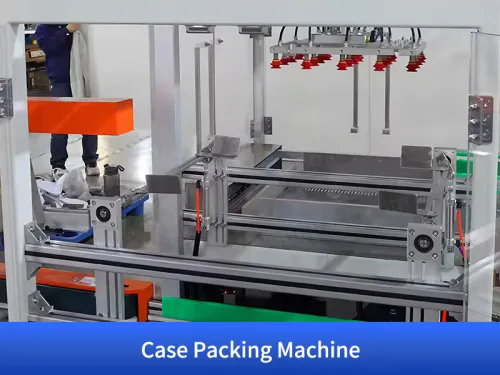

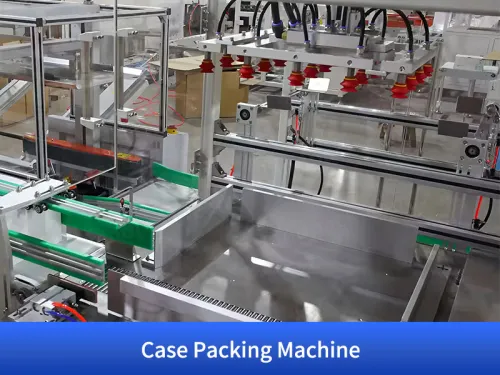

2. Robotic grab-type loading system automatically places products into cartons.

3. Servo positioning system supports stable and accurate product arrangement.

4. In-box inspection module detects missing products and loading abnormalities.

5. Carton sealing machine supports tape sealing for continuous operation.

6. PLC touchscreen control system supports centralized parameter adjustment.

7. Photoelectric sensors monitor carton position and product movement.

8. Conveyor system synchronizes transfer between each packaging station.

9. Compact line structure suitable for end-of-line packaging areas.

10. Safety protection system includes alarm functions and overload protection.

11. Adjustable structure supports different carton sizes and product formats.

Machine Structure Overview:

1. Box Sealing 2. Box Opening and Packing 3. Robot packing unit 4. Sealing machine

Case Packing Robot Automatic Grab Type Compact Shipping Case Erector and Packer

WORKFLOW

Carton conveying

Product Feeding

Automatic case packing

Carton sealing

Carton transfer

Finished pallet output

PARAMETER

Model		LD-LLP550
Packing speed		≤5/min(depends on products)
Carton size	minimum	220150120
	maximum	600400400
Air compressed		≤1m³/hour 0.6mpa
Power supply		1.5kw 220/380v 50hz
Using tape		OPP, kraft paper
Machine Size(mm)		220016002400
Machine weight		1500kg
