Automatic Packaging Systems Bottle Liquid Filling and Cartoning Palletizing Line

Introduction:

The Automatic Sauce Filling and Packaging Line is a complete production system integrating bottle feeding, bottle washing, UV sterilization, filling, capping, aluminum foil sealing, labeling, date printing, case opening, case packing, case sealing and palletizing.

Application:

Designed for filling and packaging chili sauce, tomato sauce, pasta sauce, garlic sauce, salad dressing, mayonnaise, cooking oil, honey, jam, fruit sauce, bean paste and other liquid or viscous food products in bottles, jars and handled containers.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This production line is suitable for automatic filling and end-of-line packaging of liquid and semi-liquid products packed in plastic bottles, glass bottles, jars or plastic jerry cans. Such as ketchup, chili sauce, oyster sauce, soy sauce, mayonnaise, cooking oil, vinegar, honey, syrup, jam, concentrated juice, liquid seasoning, milk, yogurt, liquid detergent, dishwashing liquid, laundry detergent, fabric softener, hand soap, hand sanitizer, shampoo, conditioner, shower gel, body lotion, facial cleanser, liquid cream, disinfectant, household cleaner, car wash liquid, engine oil, lubricant and other liquid or semi-liquid products.

Automatic Packaging Systems Bottle Liquid Filling and Cartoning Palletizing Line

Package Type:

Suitable for sauces and liquid food products packed in plastic bottles, glass bottles, jars, handle bottles or jerry cans, with automatic carton packing and palletizing available for the finished products.

FEATURES

1. The complete line connects bottle handling, filling, sealing, labeling, cartoning and palletizing to reduce manual operation.

2. The filling system can be selected according to the viscosity, filling volume and production requirements of different sauce products.

3. Liquid nitrogen injection can be added before capping to support product preservation and container pressure control.

4. UV sterilization is integrated into the bottle conveying process before filling.

5. Aluminum foil sealing provides an additional sealing layer for bottled sauce products.

6. Automatic labeling and date printing complete product identification before carton packing.

7. The case packing system automatically completes carton opening, bottle loading and carton sealing.

8. A palletizing robot can be connected to the carton sealing machine for continuous end-of-line handling.

9. Two production lines can share one palletizing robot when the carton output and palletizing layout are properly matched.

10. The line layout can be adjusted according to bottle size, carton size, workshop space and production capacity.

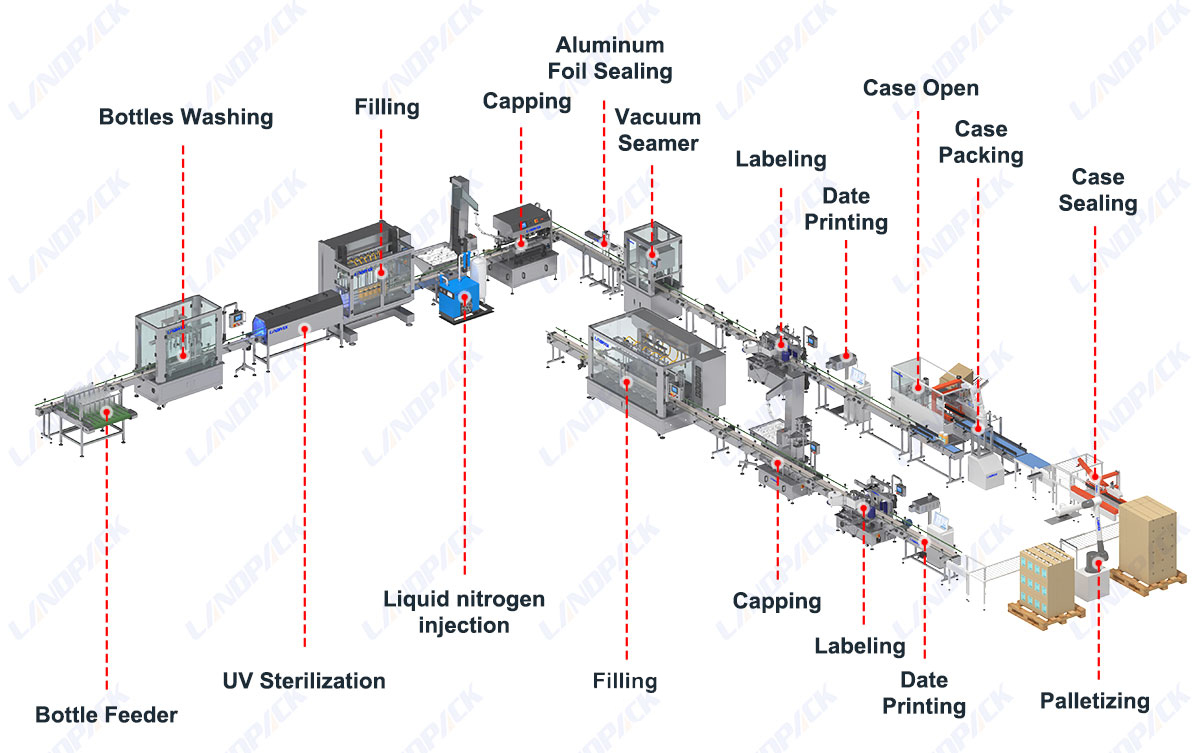

Machine Structure Overview:

1. Bottle Feeder 2. Bottles Washing 3. UV Sterilization 4. Filling 5. Liquid 6. Nitrogen Injection 7. Capping 8. Aluminum Foil Sealing 9. Vacuum 10.Seamer 11. Labeling 12. Date Printing 13. Case Open 14. Case 15. Packing 16. Case Sealing 17. Palletizing

Automatic Packaging Systems Bottle Liquid Filling and Cartoning Palletizing Line

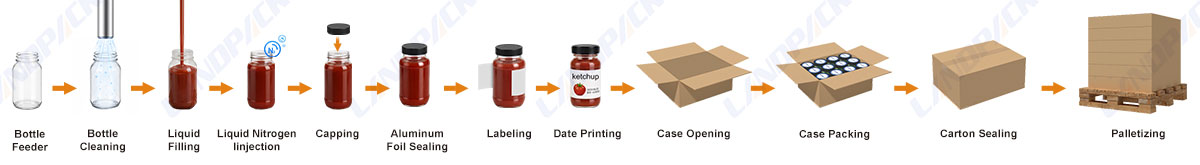

WORKFLOW

Bottle Washing

Sauce Filling & Nitrogen Injection

Capping

Aluminum Foil Sealing

Labeling

Date Printing

Case Packing

Palletizing

PARAMETER

Automatic Liquid Filling Machine
Filling material	Liquid and semi-liquid sauce products
Filling method	Piston pump filling
Filling heads	2 / 4 / 6 / 8 heads (can be customized)
Filling range	100-1000ml (can be customized)
Filling speed	40-50 bottles/min (depending on the material, filling volume and number of filling heads)
Bottle width/diameter	Φ30-130mm (can be customized)
Bottle height	Customized according to the container
Machine body	SS304
Power supply	220V / 380V, 50Hz/60Hz
Configuration	Customized according to the sauce viscosity, bottle size and required production capacity
Bottle Feeding and Washing System
Applicable containers	Plastic bottles, glass bottles, jars and handle bottles
Bottle feeding method	Automatic bottle sorting and conveying
Washing method	Automatic bottle rinsing
Bottle size	Customized according to the container
Working speed	Matched with the filling line capacity
Machine body	SS304
Power supply	220V / 380V, 50Hz/60Hz
Configuration	Customized according to the bottle shape, washing requirements and production capacity
Liquid Nitrogen Injection System
Injection material	Liquid nitrogen
Dosing method	Automatic synchronized dosing
Installation position	Installed between the filling machine and capping machine
Applicable containers	Plastic bottles, glass bottles, jars and cans
Dosing volume	Adjustable according to the product and container
Injection speed	Matched with the filling line capacity
Control method	Automatic control
Pair Clamp Type Capping Machine
Material of machine	SS304
Cover diameter	Diameter 30-80mm
Min cover height	10mm
Bottle height size	100-250mm (can be customized)
Speed	30-40bpm (depending on the bottle and cover size)
Conveyor size	(L)3000(W)114(H)900mm
Machine size	(L)2000(W)900(H)1600mm
Machine weight	N.W. 250kg, G.W. 320kg
Power	220V, 50Hz, 2KW
Air consumption	0.5-0.7MPa
Automatic Aluminum Foil Sealing Machine
Cooling mould	Water cooling
Sealing diameter	Max. 60mm (can be customized)
Sealing speed	1-20 meters/min
Induction head size	(LWH) 67012595mm
Main machine dimension	(LWH) 6004601100mm
Labeling Machine
Model	LD-RBL
Labeling speed	20-60 bottles/min
Accuracy	±1mm
Label width	100-200mm (can be customized)
Bottle size	Φ30-Φ80mm (can be customized)
Inner diameter of label roll	Φ76mm
Outer diameter of label roll	Φ330mm
Air source	4-6kg, 30L/min
Dimension	20008001600mm
Voltage / Power	220V, 50Hz/60Hz, 2000W
Date Printing Machine
Printing content	Production date, batch number, expiration date and other information
Printing position	Bottle surface, label or bottle cap
Printing method	Inkjet printing or laser printing (optional)
Working speed	Matched with the labeling and conveying speed
Carton Erector
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (minimum and maximum values cannot be used at the same time)
Power supply	220V, 50Hz/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs (800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm²
Discharge table height	600±30mm
Machine size	L2100W2100H1450mm
Machine weight	450kg
Automatic Case Packing Machine
Packing method	Automatic bottle arranging and case loading
Applicable products	Bottles, jars and handle containers
Packing pattern	Customized according to the bottle and carton size
Working speed	Matched with the carton erector and filling line capacity
Control method	PLC and touchscreen control
Configuration	Customized according to the bottle shape, carton size and packing pattern
Robot Palletizing System
Structural form	Six-joint robot
Degree of freedom	Six-axis
Payload	25kg
Maximum radius of motion	1805mm
Motion range	1 axis: ±180°, 2 axis: -125°~+90°, 3 axis: -77°~202°, 4 axis: ±180°, 5 axis: ±125°, 6 axis: ±360°
Main body weight	191kg
Power	7.7KW
Configuration	One palletizing robot can be shared by two production lines
