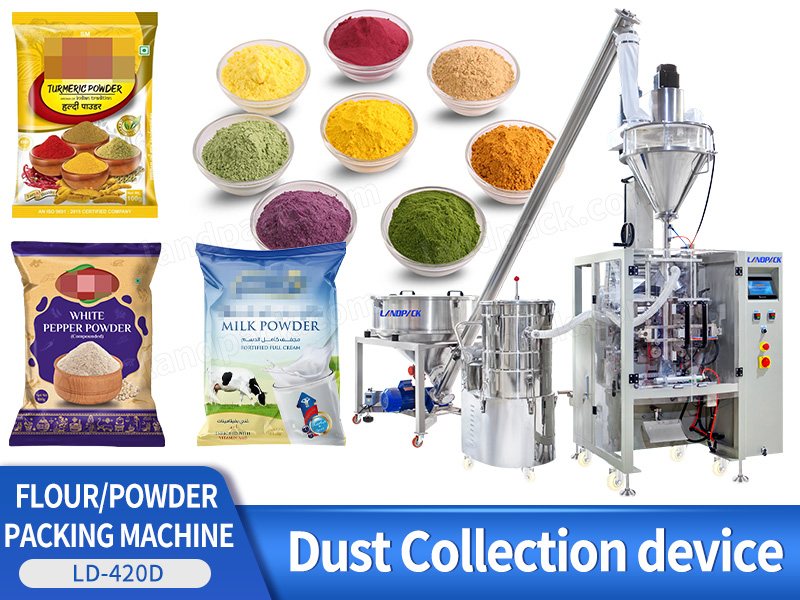

Automatic Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum

Introduction:

A compact vertical powder packaging system combining a precision auger filler with screw and vacuum loaders for dust-free transfer and consistent weight control.

Application:

Engineered for flour, cake mixes, protein powder, spice, yeast powder, milk powders and other fine blends, the system excels where dust control and fill precision matter.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Engineered for flour, cake mixes, protein powder, spice, yeast powder, milk powders and other fine blends, the system excels where dust control and fill precision matter.

Package Type:

This vertical powder packing system is adaptable to multiple pouch formats, such as pillow bags, gusset bags, quad-seal bags, and flat pouches. Its forming set and sealing components are engineered specifically for clean powder processing, delivering firm seals and consistently shaped bags—even when working with low-flow powders like flour, starch, or mixed formulations.

Automatic Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum

Suitable Products:

This Automatic Flour Packing Machine is specifically designed to provide efficient and precise packaging of a variety of powders from industries like food, chemical industrial, agricultural, and industries. It provides the safest filling and sealing and fast operation for both medium and fine density powders.

Food & Beverage Powders: Flour & Starch, Seasoning Powders, Milk Powder, Coffee Powder

Home Care & Daily Chemical Powders: Laundry Detergent, Bleaching Powder, Fragrance Powder, Enzyme Powders

Industrial & Agricultural Powders: Fertilizer Powder, Construction Additive Powders, Mineral Powders, Fine Industrial Powders

Automatic Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum

FEATURES

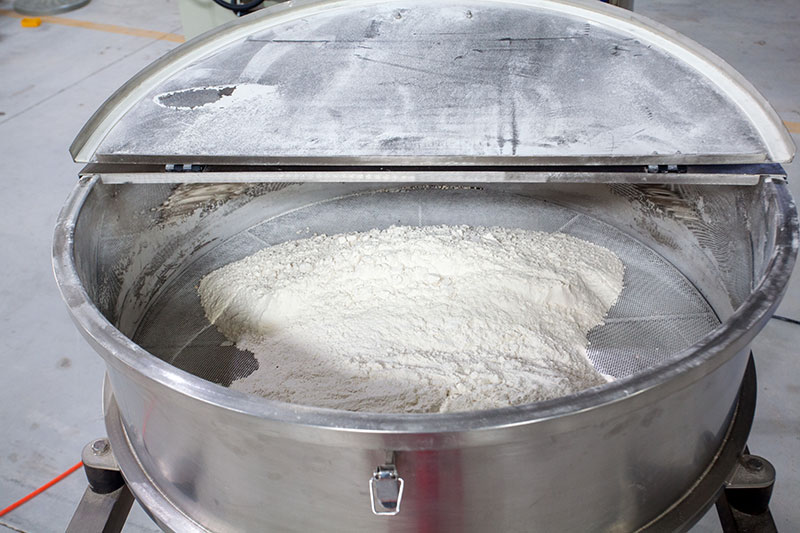

Auger Screw Feeding Conveyor

Provides steady, uninterrupted powder delivery to the dosing system. Its design minimizes clogging or material bridging, ensuring smooth operation even when handling fine or slightly cohesive powders.

Automatic Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum

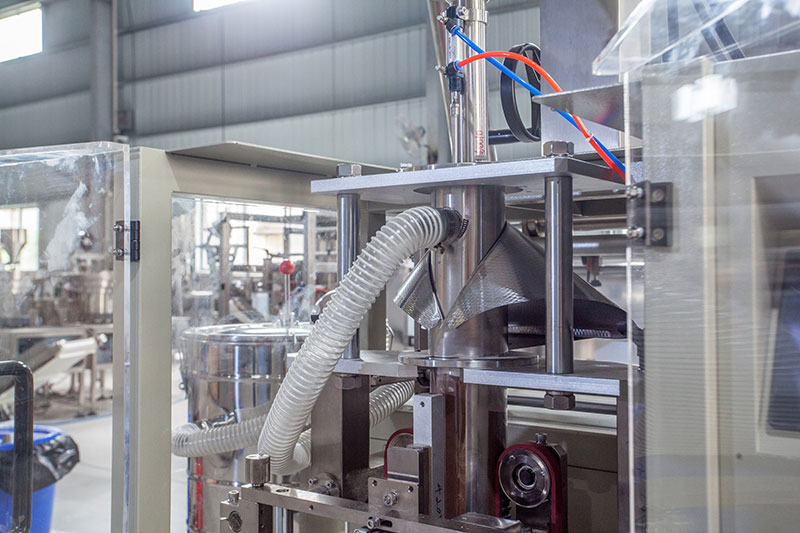

Dust Extraction System

Efficiently removes airborne powder generated during filling, keeping the environment clean and reducing product waste. Enhances worker safety and supports sanitary requirements for food and pharmaceutical production.

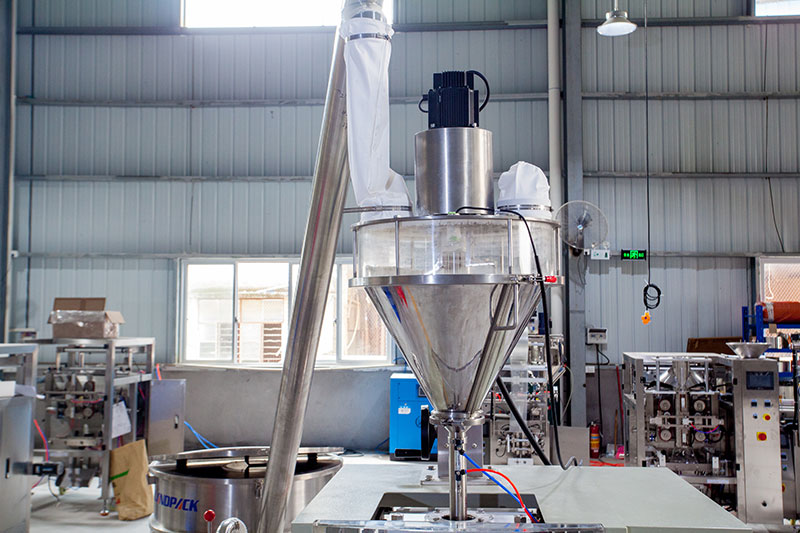

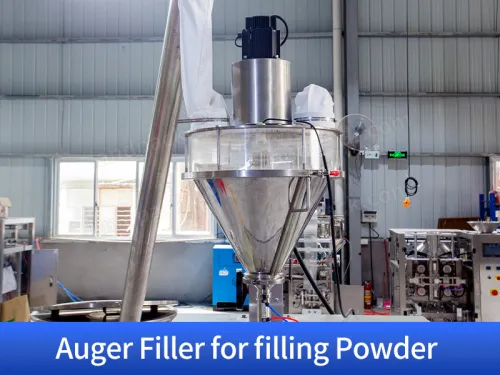

Servo Auger Dosing Unit

The servo-controlled auger delivers precise and consistent powder measurements for products such as flour, starch, milk powder, and other fine materials. Quick-change settings allow fast adjustments for different fill weights.

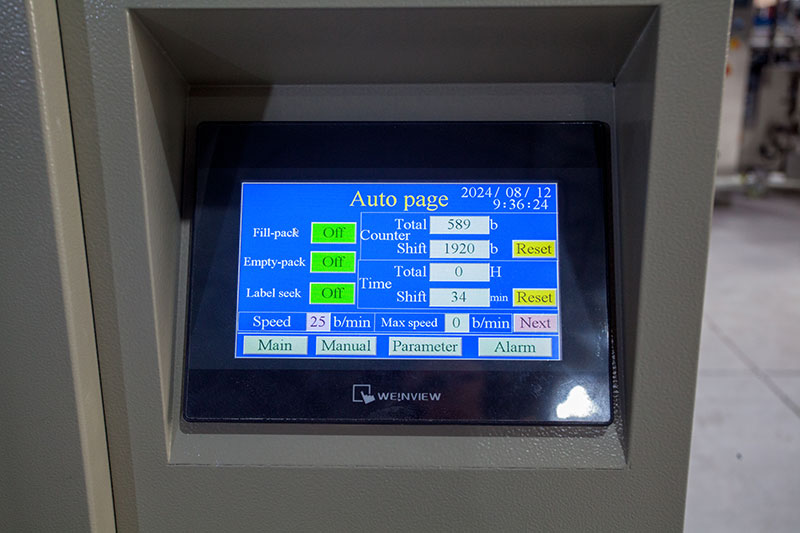

Control Interface

Features an intuitive touch-screen control panel with straightforward settings for speed, pouch length, fill weight, and sealing temperature. Operators can manage all key functions with ease and accuracy.

Bag Forming Assembly

Transforms roll film into well-shaped, uniform pouches. The stable forming structure supports various bag sizes and maintains smooth film alignment for high-quality packaging results.

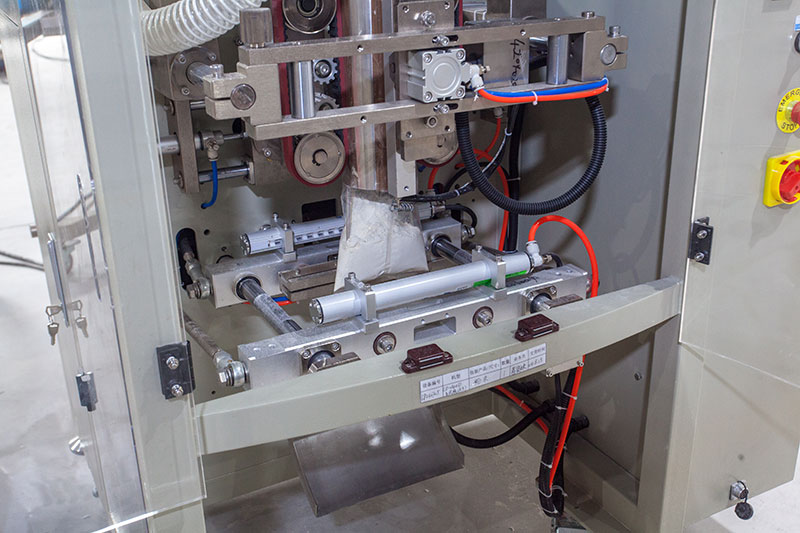

Sealing Mechanism

Equipped with durable vertical and horizontal sealing jaws to create firm, airtight seals. Ensures attractive bag appearance while preserving product quality, freshness, and powder flowability.

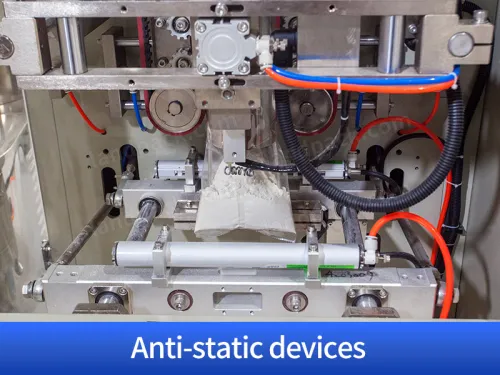

Anti-Static Design

Minimizes static buildup that causes powder to cling to film surfaces or machine components. Helps maintain clean sealing areas and prevents bag distortion—especially important for ultra-light powders like flour.

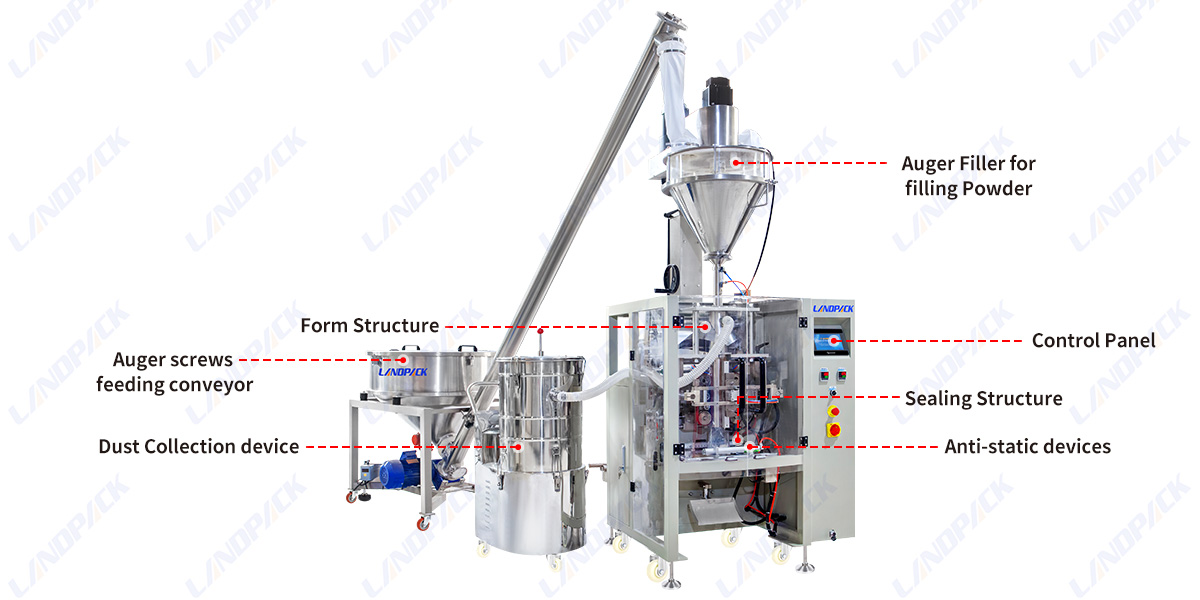

Machine Structure Overview:

1. Dust Collection Device

2. Auger Screws Feeding Conveyor

3. Form Structure

4. Auger Filler for Filling Powder

5. Control Panel

6. Sealing Structure

7. Anti-static Devices

Automatic Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum

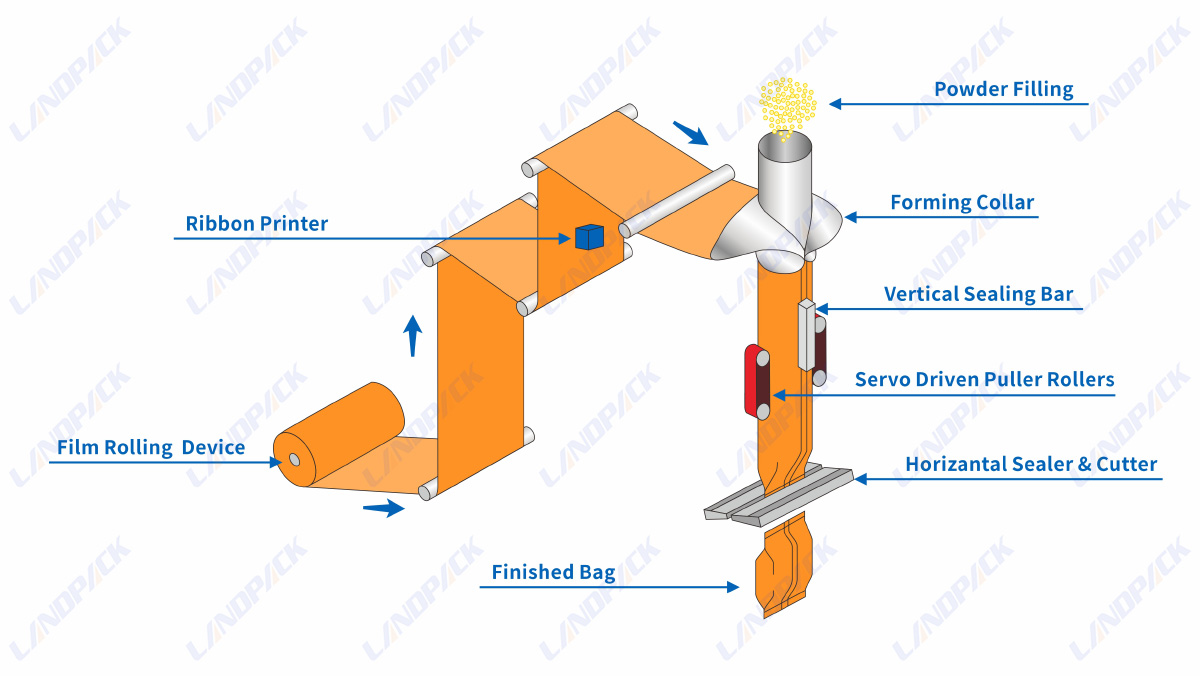

WORKFLOW

Film Rolling Device

Ribbon Printer

Forming Collar

Vertical Sealing Bar

Powder Filling

Anti-Static Devices

Horizontal Sealer & Cutter

Finished Bag Output

PARAMETER

Model	LD-420D	LD-520D	LD-620D	LD-720D
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Packaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
