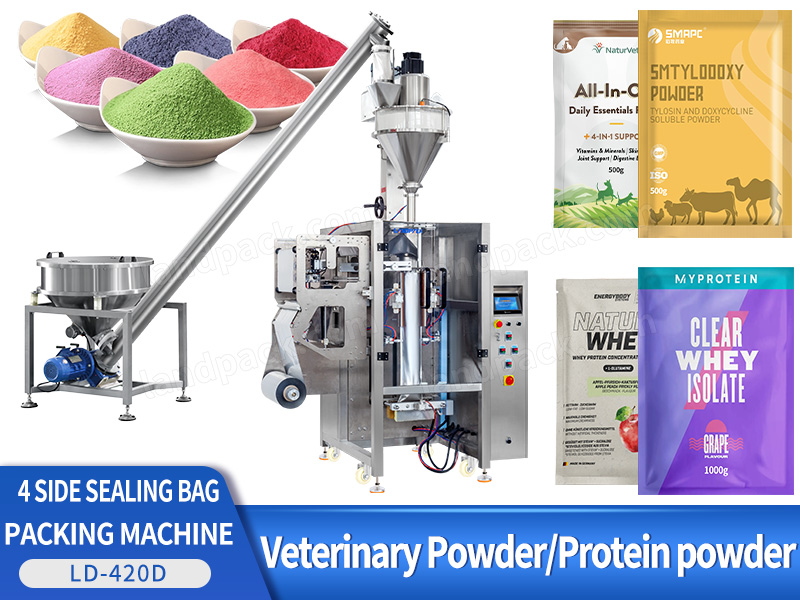

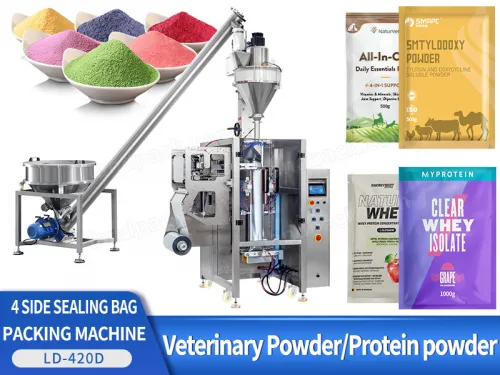

Automatic 4-Side Sealing Bag Powder Vertical Packing Machine

Introduction:

This automatic powder vertical packing machine is suitable for 4-sided sealing packing for powder materials such as whey protein powder, camel powder, milk powder, protein powder, tea powder, medical powder, chemical powder, flour, and coffee powder.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 4-Side Sealing Bag Powder Vertical Packing Machine

FEATURES

1. Food-grade SS304 stainless steel construction ensures safety.

2. Simple operation with Panasonic PLC and touchscreen control.

3. Quick film roll changes thanks to air shaft design.

4. Handles film rolls up to 420mm (max bag width 210mm).

5. 50L servo auger with stirring for precise powder measurement.

6. Air exhaust system creates neat, flat packaged bags.

7. Integrated date coder prints automatically on every bag.

8. Space-saving design with easy maintenance access.

Automatic 4-Side Sealing Bag Powder Vertical Packing Machine

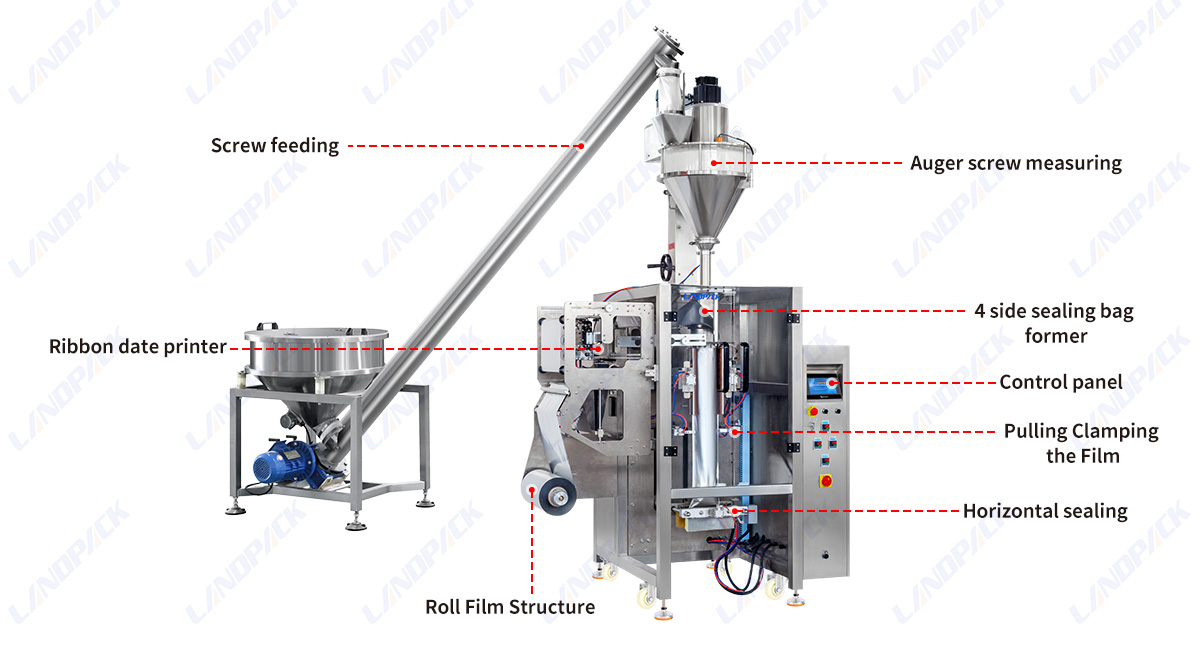

WORKFLOW

1. Roll Film Feeding

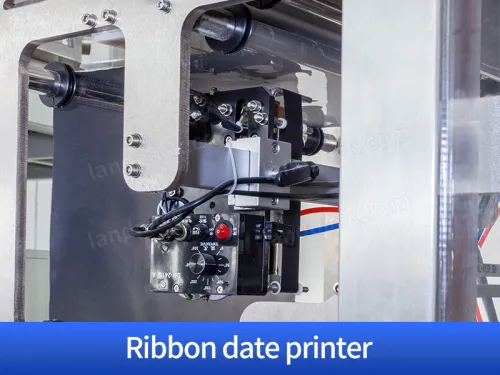

2. Ribbon date printer

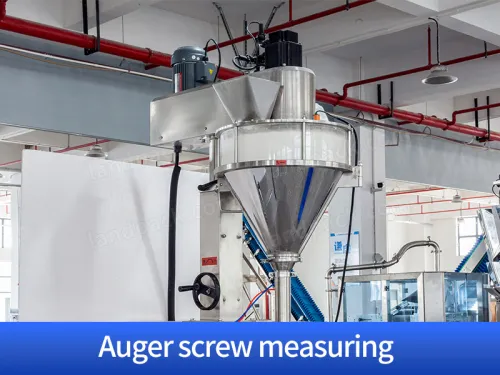

3. Auger screw measuring the grams of the powder

4. 4 side sealing bag former

5. 4 sides vertical sealing bar

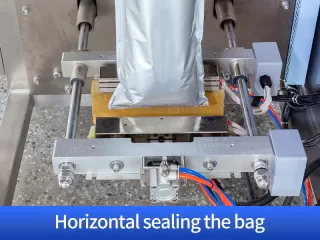

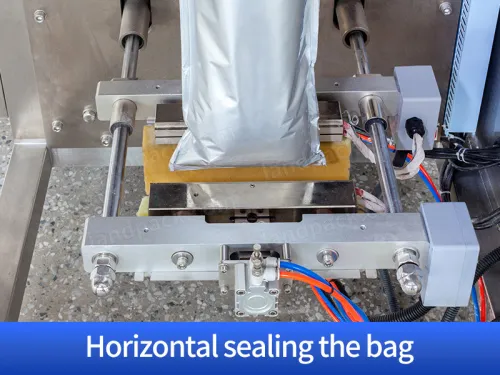

6. Horizontal sealing of the bag

7. With sponge air exhaust device

8. Finished bag

PARAMETER

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Packaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
