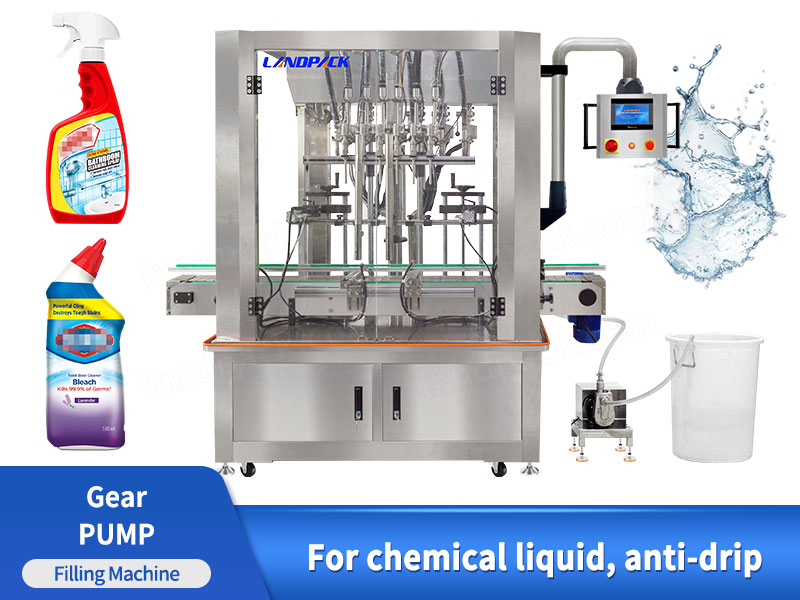

High Precision Chemical Filling Machine | Corrosive Liquid Bottle Filling Machine

Introduction:

Built for acids, alkalis, and chemical solutions, it also adapts well to shampoos, juices, sauces, and lotions. The machine ensures reliable dosing, operator safety, and long-term durability in demanding production environments.

Application:

Its non-reactive contact parts and controlled filling mechanism reduce leakage and equipment wear. At the same time, the machine performs efficiently with common liquids like fruit juice, tomato sauce, jam, shampoo, and cosmetic emulsions.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This corrosive liquid filling system accommodates a wide range of container types, including plastic and glass bottles, jars and cans with screw or trigger closures.

High Precision Chemical Filling Machine | Corrosive Liquid Bottle Filling Machine

Suitable Products:

This corrosive liquid filling machine is engineered to handle aggressive, viscous, and standard liquid products through corrosion-resistant fluid paths and stable dosing control. It is suitable for a wide spectrum of industrial, chemical, and personal care liquids requiring safe and accurate filling.

Corrosive & Industrial Liquids: Acidic cleaners, chlorine-based liquids, industrial descaling solutions, disinfectants, anti-rust liquids, chemical solvents, detergents, and insecticides.

Personal Care & Hygiene Gels: Sanitary gels, hygiene gels, hand cleaning gels, decontamination gels, liquid soaps, shampoos, lotions, and cosmetic emulsions.

General Liquid & Chemical Solutions: Detergent additives, agricultural sprays, diluted chemicals, functional liquids, and other free-flowing or semi-viscous products compatible with corrosion-resistant filling systems.

High Precision Chemical Filling Machine | Corrosive Liquid Bottle Filling Machine

FEATURES

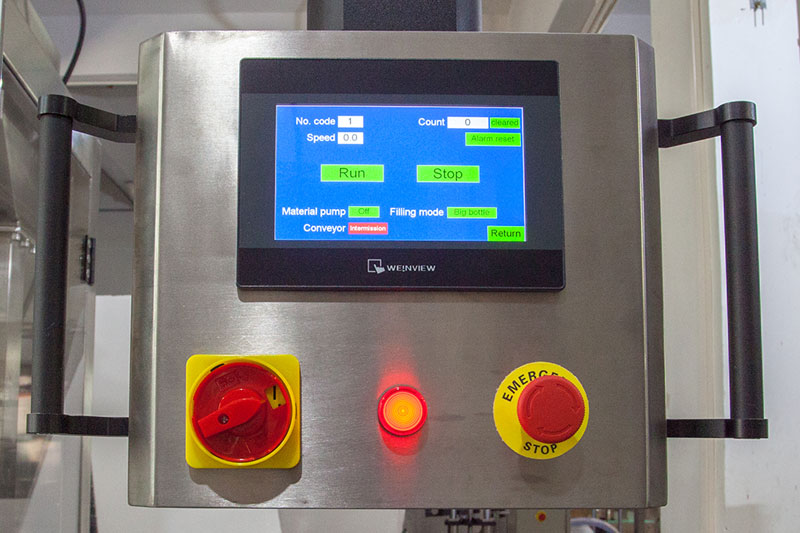

PLC Control Panel Equipped with an intelligent PLC and a user-friendly touch-screen interface for easy parameter setup, real-time status monitoring, and stable operation. Ensures accurate dosing for corrosive liquids and sanitary gel products.
	Conveyor System Features a chemically resistant conveyor designed for smooth bottle transfer. Consistent, steady movement minimizes spillage risks and supports efficient, uninterrupted production.

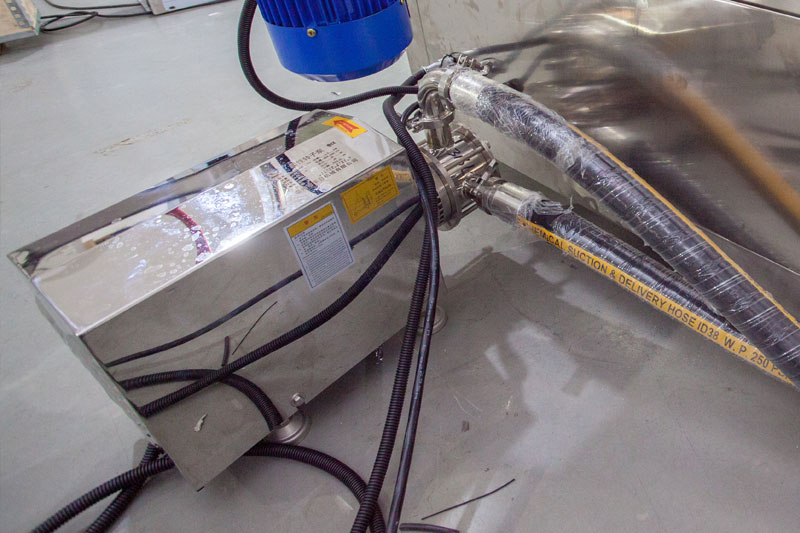

Rotor Pump Utilizes a high-precision rotor pump engineered for viscous and corrosive media. Delivers accurate, smooth filling performance while offering excellent chemical resistance and long service life.
	Feeding Hopper Large-volume hopper constructed from corrosion-resistant materials provides a stable and continuous product supply, enabling nonstop filling operations.

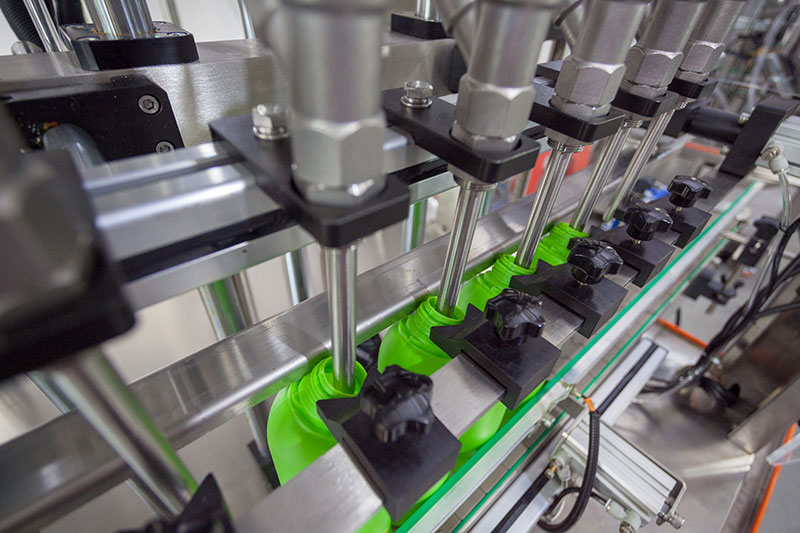

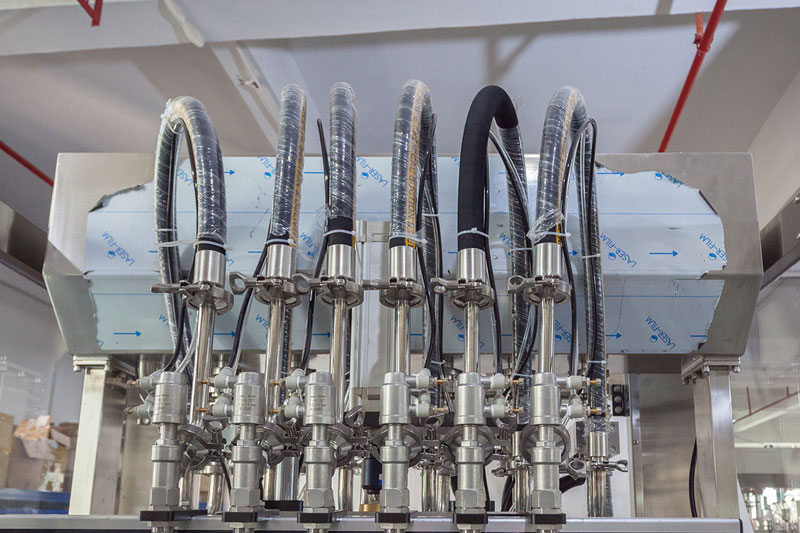

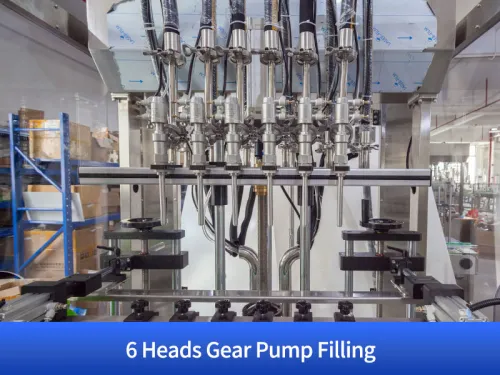

Filling Nozzle Precision filling nozzles with anti-drip design prevent splashing and leakage. Well suited for acidic liquids, gels, and hygienic chemical products.

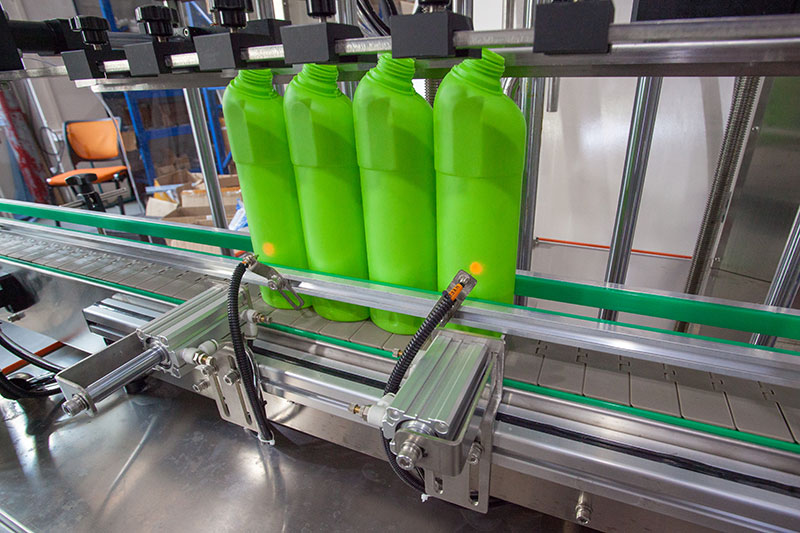

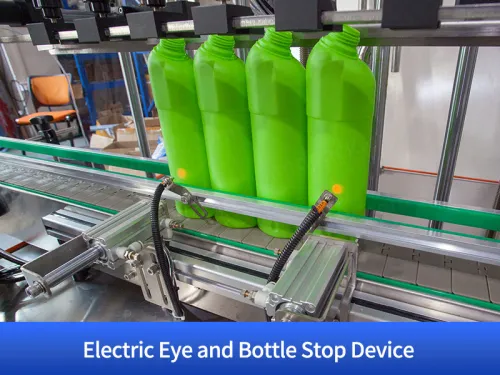

	Bottle Stop Device Automatic bottle stopping and alignment system ensures correct positioning during filling, improving accuracy and reducing the risk of tipping or misfills.

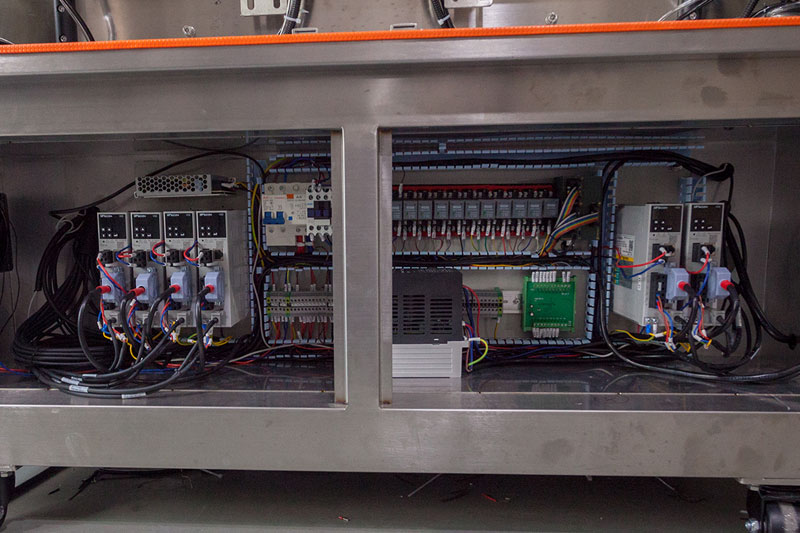

Electric Box Fully sealed electrical cabinet with corrosion-resistant protection ensures safe operation, reliable control performance, and easy maintenance in demanding chemical processing environments.

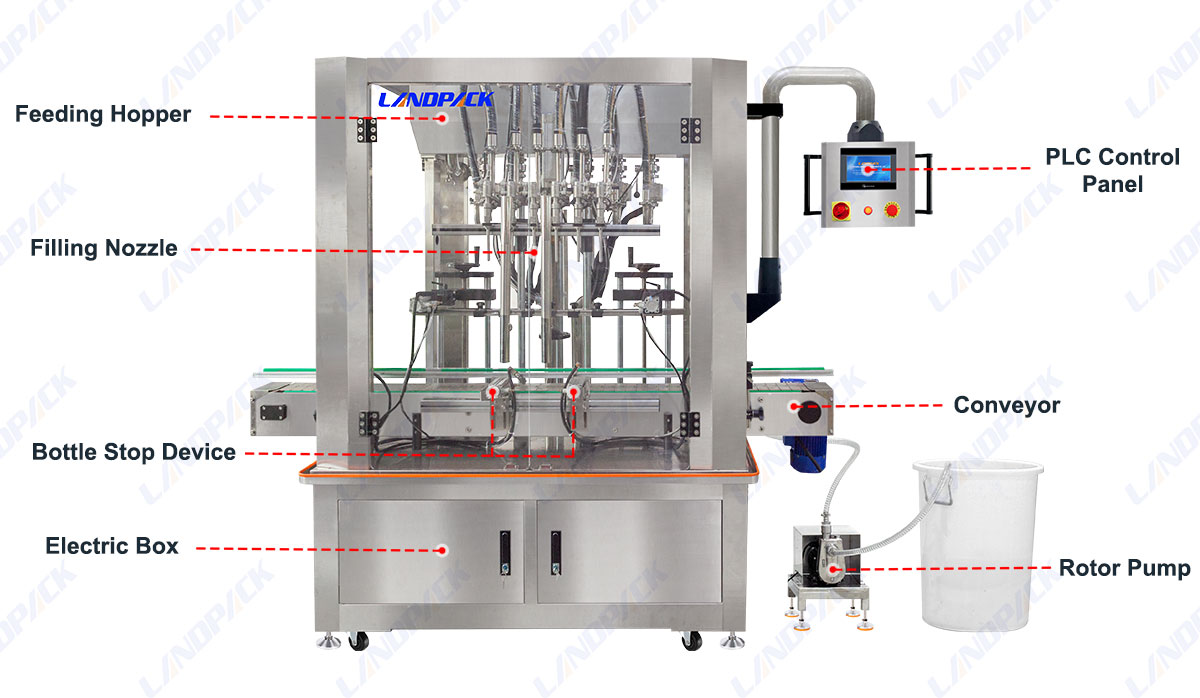

Machine Structure Overview:

1. PLC Control Panel

2. Conveyor

3. Rotor Pump

4. Feeding Hopper

5. Filling Nozzle

6. Bottle Stop Device

7. Electric Box

High Precision Chemical Filling Machine | Corrosive Liquid Bottle Filling Machine

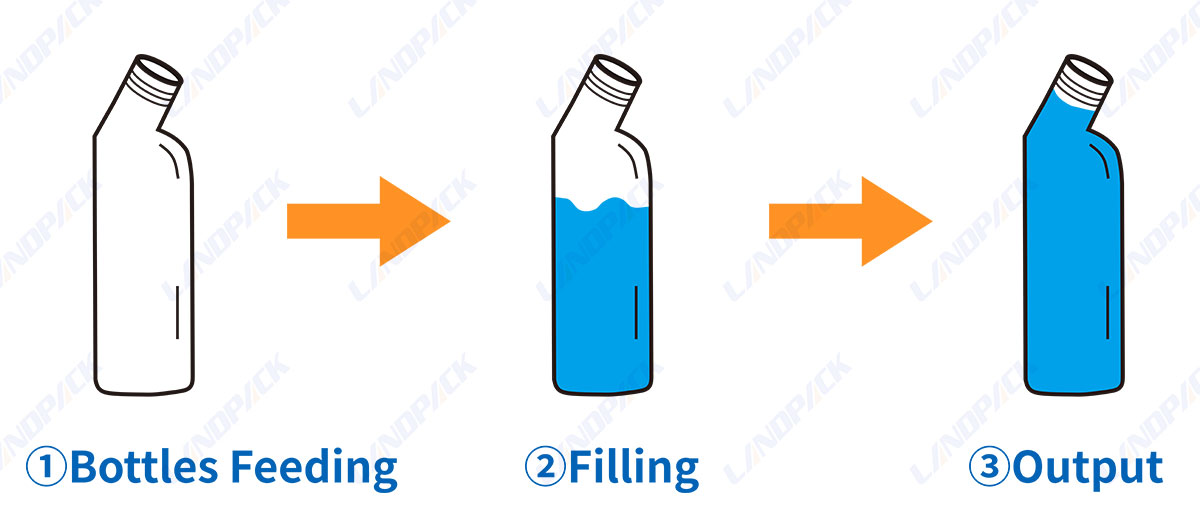

WORKFLOW

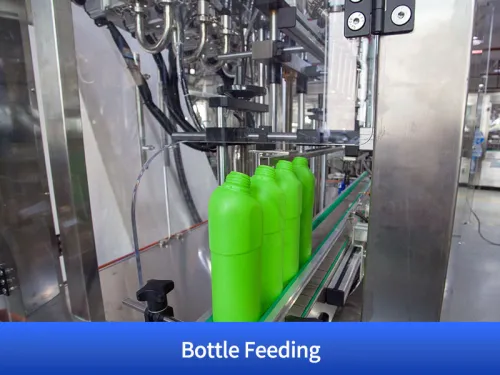

Bottles Feeding

Filling

Output

PARAMETER

Model	LFZ-04	LFZ-06	LFZ-10
Filing Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	15-50 bottles/min	20-35 bottles/min	60 bottles/min
Measurement Accuracy	±1%	±1%	±1%
Power	2KW	2.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8 Mpa	0.6-8 Mpa	0.6-8 Mpa
Weight	600 kg	650 kg	1000 kg
Dimension	L4000W1320H2090 (mm)	L4000W1320H2090 (mm)	L4000W1320H2090 (mm)
