Automatic Liquid Filling Machine with Capping Labeling Shrink Wrapping Line

Introduction:

The line uses a 2000 L corrosion-resistant plastic mixing tank and a self-priming pump to prepare and transfer the product to the filling section.

Application:

This machine is suitable for edible oil, liquid fertilizer, windshield washer fluid and other free-flowing or slightly viscous liquids packed in plastic bottles, jerry cans and handled containers.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This chemical filling machine fills disinfectant liquid, shampoo, cleaning solution, bleach-based cleaner, sanitizer, detergent liquid, and other low-viscosity chemical products into bottles. A 2000 L corrosion-resistant plastic mixing tank stores and mixes the liquid before the self-priming pump transfers it to the filling section.

Automatic Liquid Filling Machine with Capping Labeling Shrink Wrapping Line

Package Type:

The chemical bottle filling machine handles round, square, rectangular, and shaped plastic bottles made from HDPE, PET, or similar chemical-resistant materials. It supports screw caps, front-and-back self-adhesive labels, inkjet coding, and grouped shrink-film packs. Adjustable guides allow the line to run different bottle widths, heights, cap sizes, and label dimensions.

FEATURES

1. 2000 L plastic mixing tank handles corrosive cleaning and disinfectant liquids.

2. Self-priming pump transfers liquid from the tank to the filling machine.

3. No-bottle, no-fill control stops product discharge when a container is missing.

4. Filling section can use gravity flow or gear-pump diving filling according to the liquid properties.

5. Diving nozzles reduce splashing when filling foaming chemical liquids.

6. Adjustable conveyor guides handle round, square, and shaped bottles.

7. Four-wheel capper presses and tightens screw caps in one section.

8. Inkjet coder prints batch, production, and date information directly on the bottle.

9. Double-side labeler handles both round and square container formats.

10. Side-entry sleeve wrapper groups bottles before shrink packing.

11. Heat tunnel shrinks the film tightly around each bottle group.

12. PLC controls filling, conveying, capping, labeling, and shrink-packing settings.

13. Modular layout allows connection with bottle unscramblers, checkweighers, case packers, and palletizing equipment.

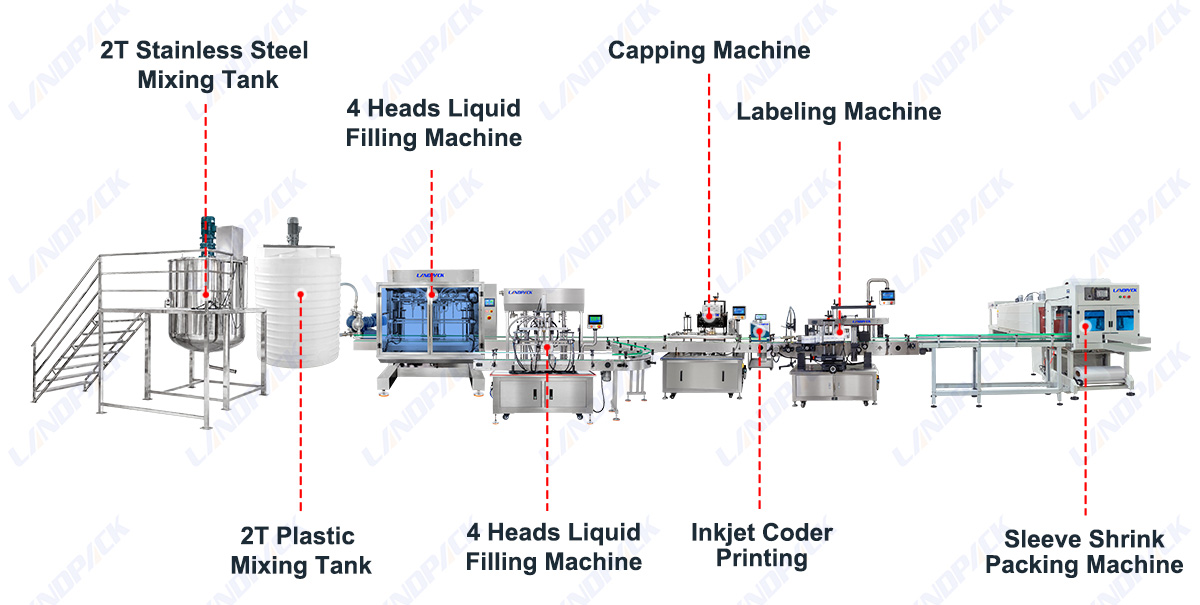

Machine Structure Overview:

Automatic Liquid Filling Machine with Capping Labeling Shrink Wrapping Line

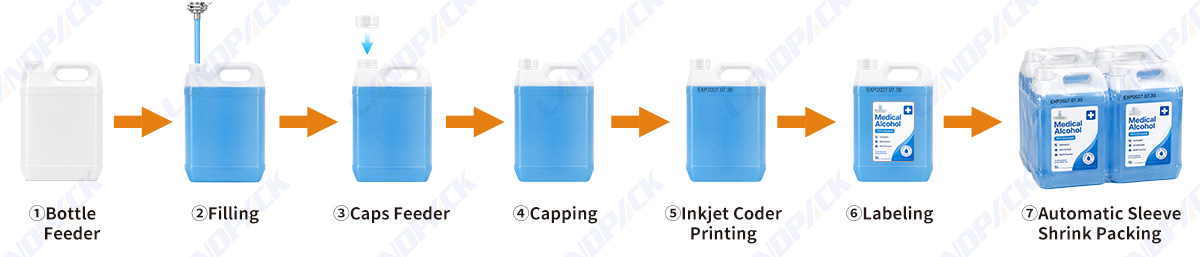

WORKFLOW

Liquid Mixing and Storage

6-Head Filling

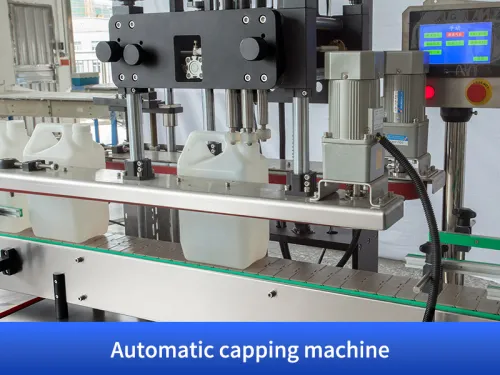

Four-Wheel Capping

Inkjet Coding

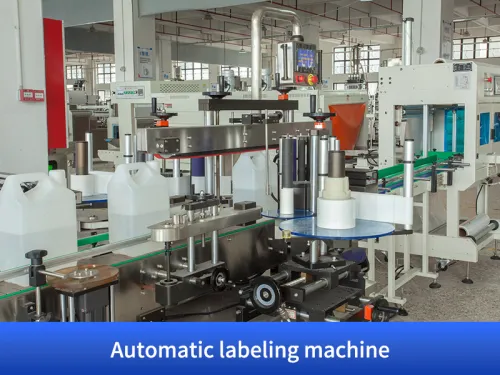

Double-Side Labeling

Bottle Counting and Grouping

Sleeve Film Wrapping

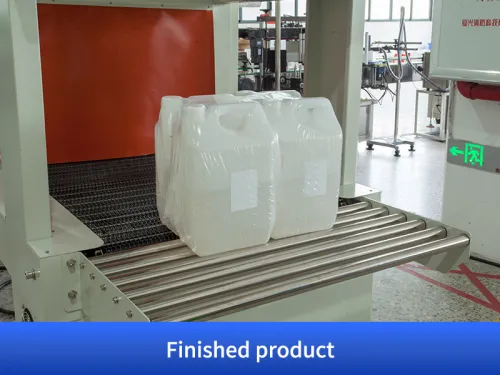

Heat Shrinking

PARAMETER

Mixing and heating tank 2000L
Material	SS 304
Heating type	electric heating
Tank diameter	1500mm
Tank capacity	2000L
Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)		LFT-GS-100(High speed labeling)
Label length	20mm～300mm		20mm～300mm
Label width/height	20mm～200mm(can be customized)		20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)		30-150mm(can be customized)
Roll Label outer diameter	300mm		300mm
Roll Label inner diameter	76mm		76mm
Accuracy	±1mm		±1mm
Label speed	40-100pcs/min		60-120pcs/min
Conveyor speed	5～25m/min		15～20m/min
Suitable label type	Adhesive sticker label(transparent label needs customization)		Adhesive sticker label(transparent label needs customization)
Working air pressure	0.4-0.6Mpa		0.4-0.6Mpa
Voltage	220V can be customized 4KW		220V can be customized 4KW
Weight	350KG		450KG
Overall dimension	3000mm×1450mm×1950mm		3050mm×1550mm×1950mm
Shrink wrapping machine
Voltage	Sleeve machine: 220V; can be customized; shrink machine must be 380V
Power	1.3KW/18KW
Sleeve machine packing size	Max 420330330mm min 2506060mm
Packing speed	0-6 pieces per minute
Tunnel size	1500600400mm
Tunnel out dimension	25008501520
Sleeve out dimension	1500600402mm
