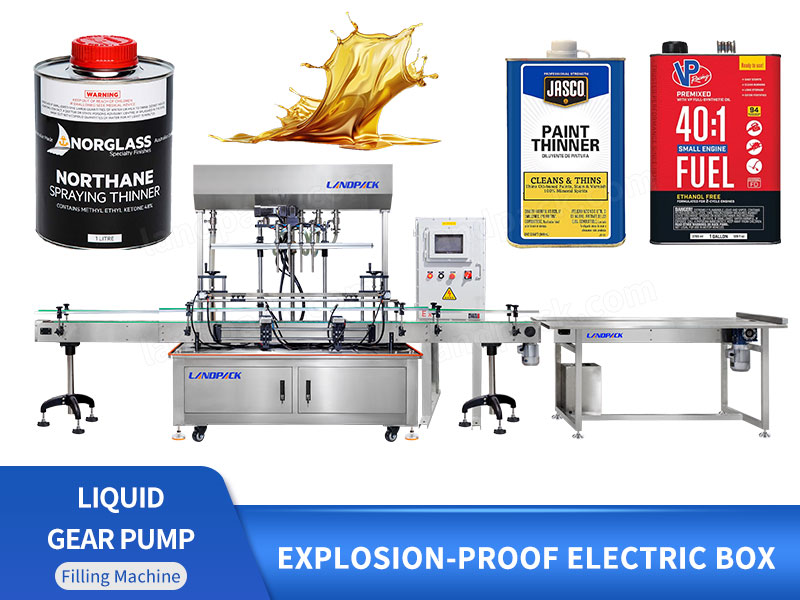

Automatic 4 Heads Gear Pump Chemical Thinner Liquid Bottle Filling Machine

Introduction:

Suitable for all kinds of liquid, such as thinner, chemical liquid, toilet cleaner, gel, liquid detergent, acid, pesticide, alcohol, liquor, bleach, disinfectant, laundry detergent, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The filling machine is equipped with explosion-proof safety features, making it particularly suitable for handling chemical liquids with enhanced operational safety. Suitable for all kinds of liquid, such as thinner, chemical liquid, toilet cleaner, gel, liquid detergent, acid, pesticide, alcohol, liquor, bleach, disinfectant, laundry detergent, etc.

Automatic 4 Heads Gear Pump Chemical Thinner Liquid Bottle Filling Machine

FEATURES

1. The gear pump filling system delivers ±0.5% dosing accuracy for precise liquid measurement.

2. Adjustable capacity handles containers from small 100ml bottles up to large 2L jugs with ease.

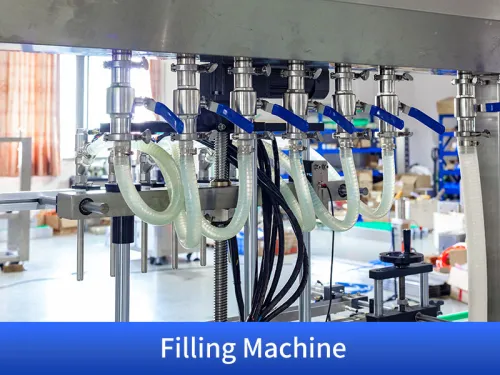

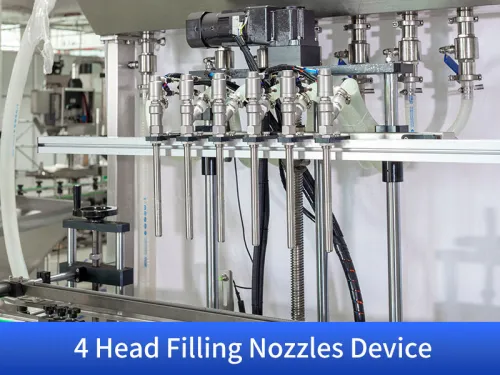

3. Submerged filling nozzles descend into containers to prevent oxidation and minimize foam formation.

4. Available with explosion-proof electrical components for safe handling of alcohol-based or volatile liquids.

5. Compliant with pharmaceutical, food and industrial standards for diverse application requirements.

6. 10-inch color touchscreen with PLC control enables quick parameter changes and recipe storage.

7. 304/316L stainless steel material contact surfaces meet strict sanitary regulations.

8. Space-saving vertical design features tool-free disassembly for efficient cleaning.

9. Maintains ±1% filling accuracy at speeds up to 60 bottles per minute.

10. Modular construction allows customization for unique bottle shapes and production line integration.

Automatic 4 Heads Gear Pump Chemical Thinner Liquid Bottle Filling Machine

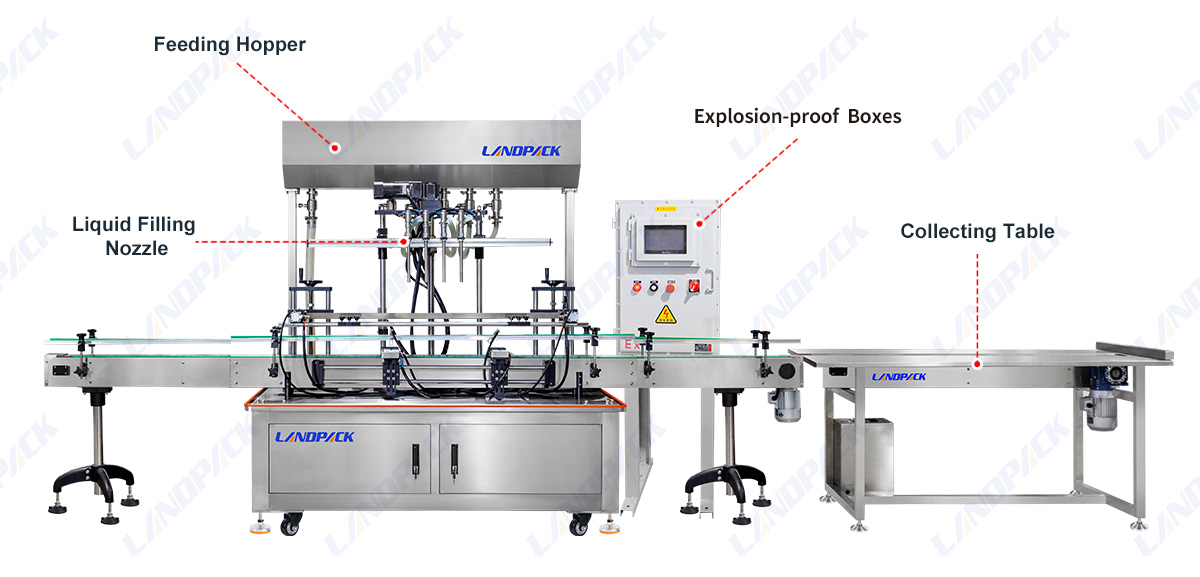

WORKFLOW

1. Conveyor belt delivers bottles

2. Cylinder control to stop and release bottles

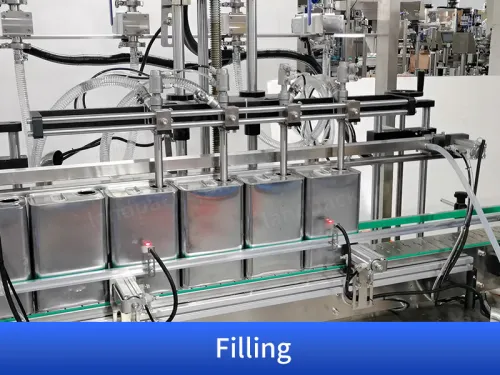

3. Submersible filling to eliminate foam generation

4. Submersible filling to eliminate foam generation

PARAMETER

	Machine Model	LFZ-04
	Voltage	220V 50hz
	Filling Head	4 Heads
	Filling Range	50-1000ml(Customizable)
	Filling Speed	15-25 bottles/min
	Filling Accuracy	±1%
	Air Pressure	0.6-0.8Mpa
	Power	2KW
	Machine Material	Stainless Steel

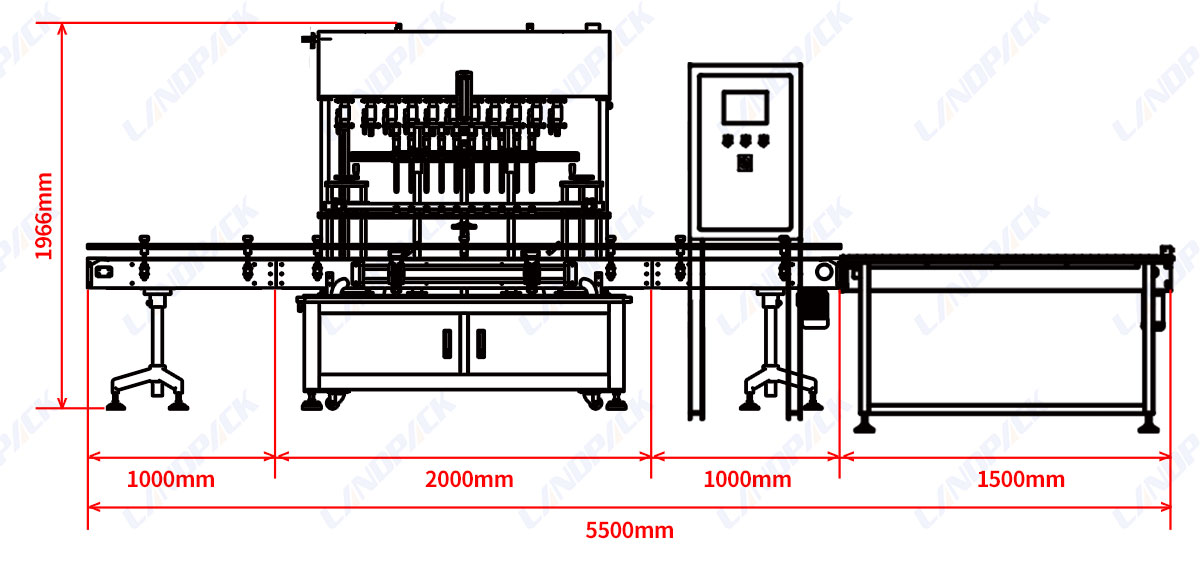

	Machine Size	L4000W1320H2090(mm)
	Machine Weight	650 kg
